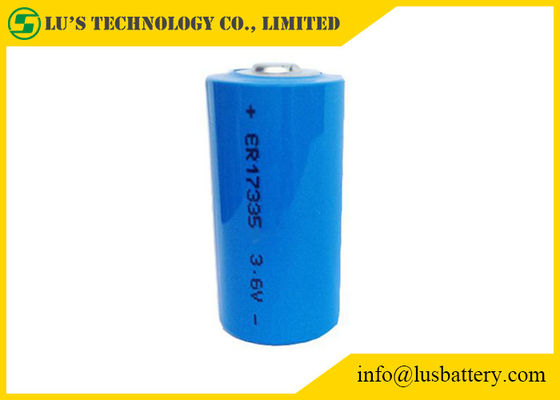

3.6V 1900mah ER17335 Lithium Battery 2/3A Battery Lithium Cylinder Battery

3.6V 1900mah ER17335 Lithium Battery 2/3A Battery Lithium Cylinder Battery
3.6V 1900mah ER17335 Lithium Battery 2/3A Battery Lithium Cylinder Battery

Large Image :  3.6V 1900mah ER17335 Lithium Battery 2/3A Battery Lithium Cylinder Battery

Product Details:
Place of Origin: China
Brand Name: OEM
Model Number: ER17335
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Bargain
Packaging Details: cartons
Delivery Time: 8-15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000pcs/days

3.6V 1900mah ER17335 Lithium Battery 2/3A Battery Lithium Cylinder Battery

Description
Size: 2/3A Nominal Voltage: 3.6V
Capacity: 1.9Ah Weight: Approx 18 G
Storage Temperature (recommended): +30C Type: Primary Lithium
High Light:

li socl2 lithium battery

,

lithium primary battery



Model:ER17335 size 2/3A Lithium Thionyl Chloride Battery 3.6V 1900mah



Technical data



Name Lithium metal primary battery
Model ER17335
Nominal capacity (2mA~2V) 2.1 Ah
Rated voltage 3.6 V
Max constant current of discharge 100 mA
Max discharge current(pulse) 200 mA
Weight 21 g
Operating temperature range -55~+85℃





Main applications:



Metering systems



Alarms and security devices



Memory back-up



Tracking systems



Utility metering

3.6V 1900mah ER17335 Lithium Battery 2/3A Battery Lithium Cylinder Battery 0



Characteristics:



1. High energy density (620Wh/Kg); which is the highest among all lithium batteries.


2. High open circuit voltage (3.66V for single cell), high operating voltage (varying with load,



normally ranging from 3.3V to 3.6V).


3. Wide range of operating temperature(-55C~+85C).


4. Stable voltage and current, over 90% of the cell capacity is discharged at high plateau



voltage.


5. Long operating time (over 8 years) for continuous low current discharge with medium



current pulses.


6. Low self-discharge rate (less than 1% per year) and long storage life (over 10 year under



normal room temperature).



Primary Lithium cells list:



International Model Size Model Number Max Dimension Weight Nominal End Voltage Nominal Capacity Max Continuous Operating Current Max Pulse Discharge Current
mm g Voltage V mAh mA mA
AAA ER10450 φ10.4X45.3 8 3.6 2 600(1mA) 25 60
  ER11120 φ11.5X12.0 2 3.6 2 100(0.2mA) 2 4
  ER13150 φ13.5X15.0 6 3.6 2 450(0.5mA) 10 30
L31 ER13460 φ13.5X46.0 14 3.6 2 1500(1mA) 60 100
1/2AA ER14250 φ14.5X25.0 10 3.6 2 1200(0.5mA) 20 45
2/3AA ER14335 φ14.5X33.5 13 3.6 2 1650(1.3mA) 75 150
AA ER14505 φ14.5X50.5 22 3.6 2 2400(2mA) 100 200
2/3A ER17335 φ17.0X33.5 21 3.6 2 2100(2mA) 100 200
  ER17505 φ17.0X50.5 25 3.6 2 3400(4mA) 120 200
A ER18505 φ18.8X50.5 30 3.6 2 4000(2mA) 120 200
C ER26500 φ26.2X50.0 53 3.6 2 8500(3mA) 130 300
D ER34615 φ34.0X61.5 108 3.6 2 19000(2mA) 200 400

International Model Size Model Number Max Dimension Weight Nominal End Voltage Nominal Capacity Max Continuous Operating Current Max Pulse Discharge Current
mm g Voltage V mAh mA mA
1/2AA ER14250M φ14.5X25.2 10 3.6 2 750(4mA) 120 250
2/3AA ER14335M φ14.5X33.5 13 3.6 2 1200(4mA) 300 500
AA ER14505M φ14.5X50.5 22 3.6 2 1800(10mA) 500 1000
2/3A ER17335M φ17.0X33.5 21 3.6 2 1700(5mA) 500 1000
A ER18505M φ18.8X50.5 30 3.6 2 3200(10mA) 800 1500
C ER26500M φ26.2X50.0 53 3.6 2 6500(10mA) 1000 2000
D ER34615M φ34.0X61.5 108 3.6 2 14000(10mA) 2000 3000
Application:Utility Metering, Automatic Meter Reading, Medical Electronics, Memory Backup, Tracking Systems, Law Enforcement (RFID), Earthquake Detectors, Digital Control Devices, Remote Monitory Systems, Electronic Toll Tags, Scientific Instruments, Portable Communication Equipment, Military Radio Stations, and other electric powered devices requiring small size, high power batteries.

Drawing:



3.6V 1900mah ER17335 Lithium Battery 2/3A Battery Lithium Cylinder Battery 1



Picture:



3.6V 1900mah ER17335 Lithium Battery 2/3A Battery Lithium Cylinder Battery 2









Workshop:

3.6V 1900mah ER17335 Lithium Battery 2/3A Battery Lithium Cylinder Battery 3
