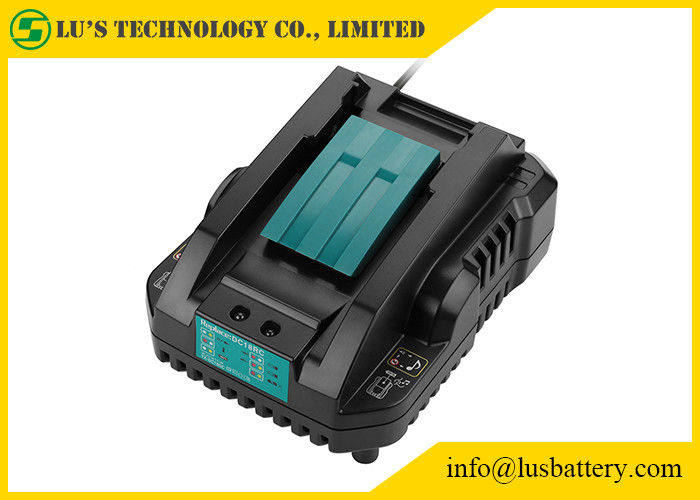

US EU UK Plug Power Tool Chargers 4A DC18RA DC18RC 18V DC18RC 14.4-18V Lithium‑Ion Rapid Optimum Charger

US EU UK Plug Power Tool Chargers 4A DC18RA DC18RC 18V DC18RC 14.4-18V Lithium‑Ion Rapid Optimum Charger

US EU UK Plug Power Tool Chargers 4A DC18RA DC18RC 18V DC18RC 14.4-18V Lithium‑Ion Rapid Optimum Charger
US EU UK Plug Power Tool Chargers 4A DC18RA DC18RC 18V DC18RC 14.4-18V Lithium‑Ion Rapid Optimum Charger

Large Image :  US EU UK Plug Power Tool Chargers 4A DC18RA DC18RC 18V DC18RC 14.4-18V Lithium‑Ion Rapid Optimum Charger Get Best Price

Product Details:

Place of Origin: China
Brand Name: OEM
Model Number: LDC18RC NEW

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Bargain
Packaging Details: Carton
Delivery Time: 10-15 days
Payment Terms: T/T
Supply Ability: 50000/Month
Detailed Product Description
Description: LI-ION CHARGER Safty Standard: EN60335-2
Input Voltage: 100-240VAC Output Voltage: 20.6V~21.1 V
Plug: US,EU,UK,AU ... Customized Label: Yes
High Light:

universal tool battery charger

,

li ion battery charger

Compatible models:



18V BL1815 BL1830 BL1840 BL1845 BL1860



14.4V BL1415 BL1430 BL1440.BL1445 BL1460





DESCRIPTION:



4A charger DC18RC 14.4-18V Lithium‑Ion Rapid Optimum Charger. DC18RC. Fast Charger with unbeatable fast charge time



CHARACTERISTICS:



Input voltage 100-240VAC
Frequency 47-63hz
Output voltage 20.6V~21.1 V
Output current 3.8~ 4.1A
Turn on less than 5 second
Lifetime more than 10000hours
Safety standard EN60335
Samples Available
Customized Welcome



INPUT CHARACTERISTICS



INPUTVOLTAGE&FREQUENCY



The charger operates input voltage from 100vac to 240vac.frequency:47-63hz.



INPUT CURRENT



The charger input current is less than 1.0A whent it works in 100vac.



OUTPUT CHARACTERS



OUTPUT VOLTAGE &CURRENT



The output voltage is over 20.6v,is less than 21.1v.output current is between3.8A and 4.1A.



TURN ON



The time for the charger turns on must less than 5 second.



PROTECTION



OVER LOAD PROTECTION



OVER TEMPERATURE PROTECTION



OVER CURRENT PROTECTION.



OUTPUT SHORTED PROTECTION



INPUT LOW VOLTAGE PROTECTION



ENVIRONMENAL CONDITION



OPERATIONG CONDITION

CHAGER OPERATES IN -5℃ to-40℃. HUMIDITY:20%-85%



STORAGE CONDITION

CHARGER STORAGES CONDITION:-20℃ TO 70℃.



COOLING METHOD

FREE CONVECTION



ELECTROMAGNETIC COMPABILITY



EMI The charger EMI meets with EN55013 & FCC PART 15B

ESD The charger is cable to withstand ESD test voltage at any point around the
encournce as be low,herein refer to IEC6100-4-2.
After applied +/-4KV contact discharge and the charger is no function erro.
After applied +/-8KV air discharge and the charger is no function erro.



RELIABILITY



MTBF

The charger shall have a minimum predicted MTBF(MIL-STD-217F) of 20000hours
at mormal operation condition and nmormal use.



LIFETIME



Lifetime of the charger shall be more than 10000hours under input rating voltae
and mean output current.
Normal operation conditions and use:
-Ambient temperature:25±2℃
-Stabdby(0mA): 1 hours/day
-charger operate method:(Specified normal load):23hours/day



SAFETY STANDARD



CHAGER meets with safety standard:EN60335.



DIELECTRIC WITHSTABD VOLTAGE

HI-POT:PRI-SECOND: 2KV 5MA 5S



INSULATION RESISTANCE

DC 500V PRI-SECOND INSULATION RESISRANCE



WARNIN:



1.the charger used indoor.


2.don't shorted batter.


3.don't open che charger,shock dangerous.


4.Don't expose charger in rain or against damp place.
