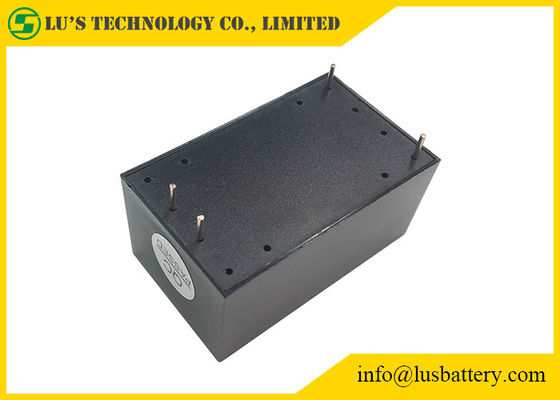

Product Details:
|
| Name: | Ultra Small Power Supply AC/DC | Output: | 24VDC / 5W |
|---|---|---|---|
| Input: | 90-264vac | Output Voltage: | 24V |
| Output Power: | 1 - 50W | Dimension: | 38*23*18mm |
| High Light: | 24VDC AC DC Power Supply,5W AC DC Power Supply,HLK-5M24 |
||
The 5W ultra-small series module power supply is a small-volume, high-efficiency AC DC power odule supply.
It has the advantages of global input voltage range, low temperature rise, low power consumption,high efficiency, high reliability and high safety isolation.
| Model NO. | Size (mm) | Weight (g) | Output Power (w) | Output Voltage (v) | Output Current (mA) | Efficiency %(TYP) |
| HLK-2M03 | 30*16*19 | 18g | 2W | 3.3 | 600 | 69 |
| HLK-2M05 | 5 | 400 | ||||
| HLK-2M09 | 9 | 230 | ||||
| HLK-2M12 | 12 | 170 | ||||
| HLK-2M24 | 24 | 84 | ||||
| HLK-PM01 | 34*20*15 | 20g | 3W | 5 | 600 | 72 |
| HLK-PM03 | 3.3 | 1000 | ||||
| HLK-PM09 | 9 | 330 | ||||
| HLK-PM12 | 12 | 250 | ||||
| HLK-PM24 | 24 | 125 | ||||
| HLK-5M03 | 38*23*18 | 32g | 5W | 3.3 | 1500 | 72 |
| HLK-5M05 | 5 | 1000 | ||||
| HLK-5M09 | 9 | 560 | ||||
| HLK-5M12 | 12 | 450 | ||||
| HLK-5M24 | 24 | 208 | ||||
| HLK-10M03 | 47*28*22 | 40g | 10W | 3.3 | 3000 | 72 |
| HLK-10M05 | 5 | 2000 | ||||
| HLK-10M09 | 9 | 1100 | 78 | |||
| HLK-10M12 | 12 | 830 | ||||
| HLK-10M24 | 24 | 416 | ||||
| HLK-12M12 | 50.8*25.4*15 | 80g | 12W | 12 | 1000 | 86 |
| HLK-20M05 | 57*33*22.5 | 80g | 20W | 5 | 4000 | 80 |
| HLK-20M09 | 9 | 2200 | ||||
| HLK-20M12 | 12 | 1666 | ||||
| HLK-20M15 | 15 | 1300 | ||||
| HLK-20M24 | 24 | 833 | 84 | |||
| HLK-30M05 | 56*32*22.5 | 80g | 30W | 5 | 6000 | 89 |
| HLK-30M09 | 9 | 3300 | 90 | |||
| HLK-30M12 | 12 | 2500 | ||||
| HLK-30M15 | 15 | 2000 | ||||
| HLK-30M24 | 24 | 1250 | ||||
| HLK-40M05 | 56*32*22.5 | 80g | 40W | 5 | 8000 | 89 |
| HLK-40M09 | 9 | 4400 | 90 | |||
| HLK-40M12 | 12 | 3300 | ||||
| HLK-40M15 | 15 | 2600 | ||||
| HLK-40M24 | 24 | 1600 |
| Items | Technical Parameters | Units | Notes |
| No-load rated output voltage | 24.0±0.1 | Vdc | |
| Full-load tated output voltage | 24.0±0.2 | Vdc | |
| Short time maximum output current | ≥308 | mA | |
| Long time maximum output current | 208 | mA | |
| Voltage regulation | ±0.2 | % | |
| Load regulation | ±0.5 | % | |
| Input low voltage efficiency | Vin=115Vac, Output full load≥69 | % | |
| Input high voltage efficiency | 3Vin=230Vac, Output full load≥70 | % | |
| Output ripple and noise (mVp-p) | ≤70 Rated input voltage,output full load. With 20MHz bandwidth oscilloscope, Load side 10uF and 0.1uF capacitance test | mV | |
| Switching on/off overshoot amplitude | (Rated input voltage, output plus 10% load)≤5 | %Vo | |
| Output over-current protection | Output maximum load 110-150% | A | |
| Output short circuit protection | Direct short circuit in normal output and automatic return to nomal operation after removal of short circuit | No-damage to the whole device |
Safety Characteristics:
Products designed to meet UL, CE safety certification requirements.
Safety and electromagnetic compatibility
Designed with the input of 0.5A UL certified insurance;
PCB board using double-sided copper clad plate production, material for the 94-V0 fire rating level;
Safety standards: Compliance with UL1012, EN60950, UL60950
Insulation voltage: I / P-O / P: 2500VAC
Insulation resistance :I / PO / P> 100M Ohms / 500VDC 25 ℃ 70% RH
Conduction and radiation :comply with EN55011, EN55022 (CISPR22)
Electrostatic discharge :IEC / EN 61000-4-2 level 4 8kV / 15kV
RF radiation Immunity: IEC / EN 61000-4-3 See Application Note
Temperature safety design
At room temperature,the capacitors of this power , the inner surface of the main converter maximum temperature does not exceed 90
℃;
Shell maximum surface temperature does not exceed 60 ℃
