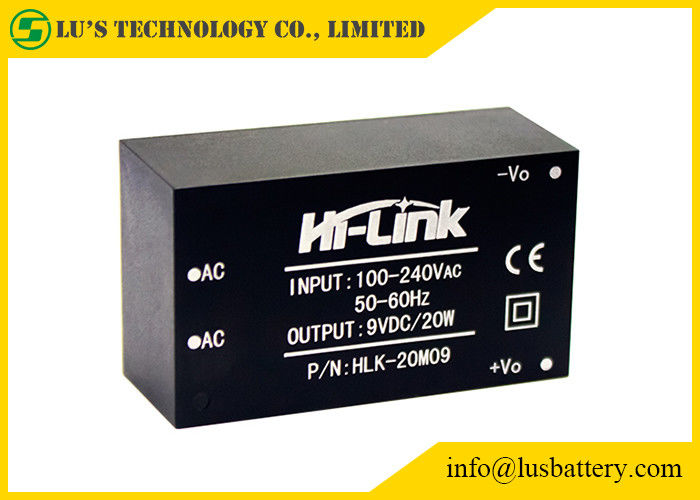

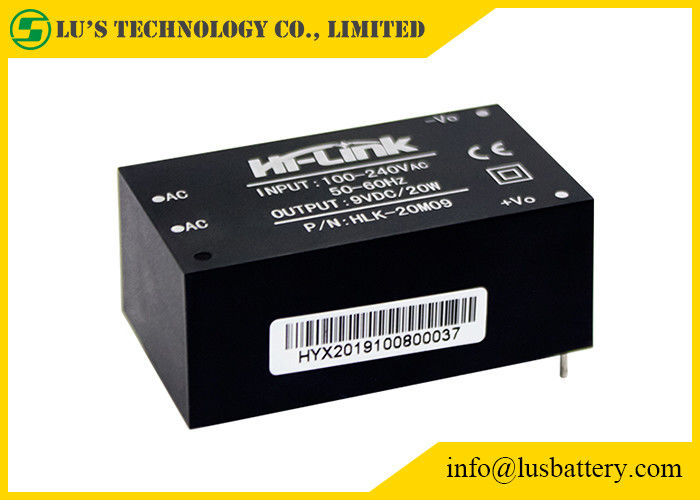

HLK20M09 2200mA 20W Power Line Power Module Ac Dc 230v 9V

Certification
China Lu’s Technology Co., Limited certification
I'm Online Chat Now

HLK20M09 2200mA 20W Power Line Power Module Ac Dc 230v 9V

HLK20M09 2200mA 20W Power Line Power Module Ac Dc 230v 9V
HLK20M09 2200mA 20W Power Line Power Module Ac Dc 230v 9V HLK20M09 2200mA 20W Power Line Power Module Ac Dc 230v 9V HLK20M09 2200mA 20W Power Line Power Module Ac Dc 230v 9V HLK20M09 2200mA 20W Power Line Power Module Ac Dc 230v 9V

Large Image :  HLK20M09 2200mA 20W Power Line Power Module Ac Dc 230v 9V

Product Details:
Place of Origin: China
Brand Name: HLK or OEM
Model Number: HLK-20M09
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Bargain
Packaging Details: PP bag+ Carton
Delivery Time: 3-5 days
Payment Terms: L/C, T/T
Supply Ability: 100000 pcs per month

HLK20M09 2200mA 20W Power Line Power Module Ac Dc 230v 9V

Description
Name: Mini Power Supply Module Usage: Isolated Intelligent Household Switch Step Down
Voltage: 9VDC Current: 2200mA
LOGO: Customized Output Frequency: 50/60Hz
Samples: 2 Pcs Free
High Light:

20W Power Line Power Module

,

2200mA Power Line Power Module

,

HLK20M09

Input Features

Note:test at room temperature



Project Name
Technical Criterial
Unit
Note
Rated Input Voltage
100-240
Vac


Input Voltage Range
85-264
Vac
or 70-350Vdc
Maximum input current
≤0.6
A


Input surge current
≤34
A


Input slow start
≤50
mS


Input high voltage
MTBF≥100000
%


efficiency
Long-term reliability
2A/250Vac
h


External fuse




slow fuse
recommendation



9V/2200mA MINI power supply hlk 20m09 Characteristic:

HLK20M09 2200mA 20W Power Line Power Module Ac Dc 230v 9V 0



Input

HLK20M09 2200mA 20W Power Line Power Module Ac Dc 230v 9V 1



Output:

Items Technical Parameters Units Notes
No-load rated output voltage 9±0.1 Vdc
Full-load tated output voltage 9±0.2 Vdc
Short time maximum output current ≥2300 mA
Long time maximum output current 2200 mA
Voltage regulation ±0.2 %
Load regulation ±0.5 %
Input low voltage efficiency Vin=115Vac, Output full load≥80 %
Input high voltage efficiency Vin=230Vac, Output full load≥82 %
Output ripple and noise (mVp-p) ≤150 Rated input voltage,output full load. With 20MHz bandwidth oscilloscope, Load side 10uF and 0.1uF capacitance test mV
Switching on/off overshoot amplitude (Rated input voltage, output plus 10% load)≤5 %Vo
Output over-current protection 110-150% of maximum output load A
Output short circuit protection Direct short circuit in normal output and automatic return to nomal operation after removal of short circuit   No-damage to the whole device
Mini AC/DC list
Model NO. Size (mm) Weight (g) Output Power (w) Output Voltage (v) Output Current (mA) Efficiency %(TYP)
HLK-2M03 30*16*19 18g 2W 3.3 600 69
HLK-2M05 5 400
HLK-2M09 9 230
HLK-2M12 12 170
HLK-2M24 24 84
HLK-PM01 34*20*15 20g 3W 5 600 72
HLK-PM03 3.3 1000
HLK-PM09 9 330
HLK-PM12 12 250
HLK-PM24 24 125
HLK-5M03 38*23*18 32g 5W 3.3 1500 72
HLK-5M05 5 1000
HLK-5M09 9 560
HLK-5M12 12 450
HLK-5M24 24 208
HLK-10M03 47*28*22 40g 10W 3.3 3000 72
HLK-10M05 5 2000
HLK-10M09 9 1100 78
HLK-10M12 12 830
HLK-10M24 24 416
HLK-12M12 50.8*25.4*15 80g 12W 12 1000 86
HLK-20M05 57*33*22.5 80g 20W 5 4000 80
HLK-20M09 9 2200
HLK-20M12 12 1666
HLK-20M15 15 1300
HLK-20M24 24 833 84
HLK-30M05 56*32*22.5 80g 30W 5 6000 89
HLK-30M09 9 3300 90
HLK-30M12 12 2500
HLK-30M15 15 2000
HLK-30M24 24 1250
HLK-40M05 56*32*22.5 80g 40W 5 8000 89
HLK-40M09 9 4400 90
HLK-40M12 12 3300
HLK-40M15 15 2600
HLK-40M24 24 1600

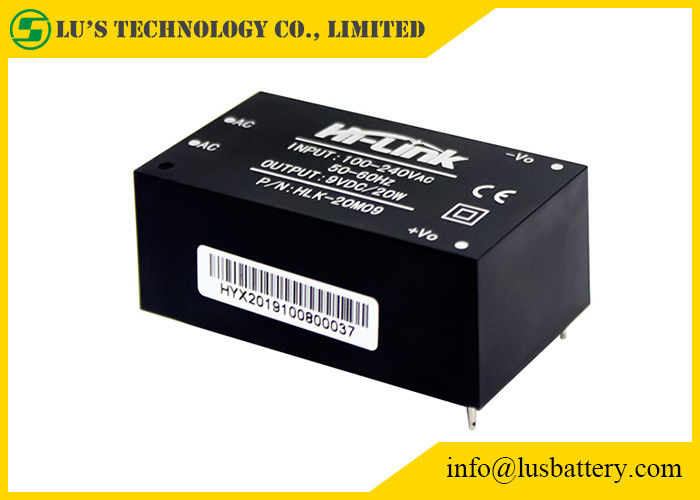

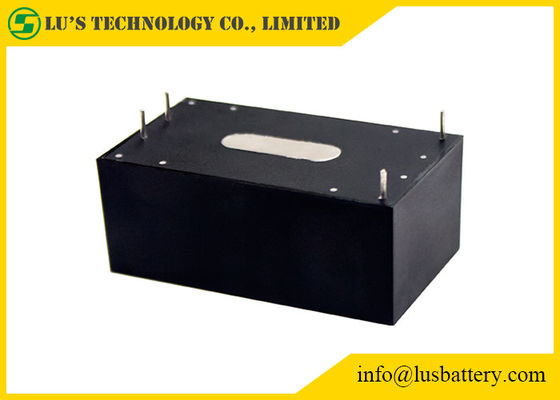

20W AC DC PCB POWER SUPPLY:

HLK20M09 2200mA 20W Power Line Power Module Ac Dc 230v 9V 2HLK20M09 2200mA 20W Power Line Power Module Ac Dc 230v 9V 3
