Product Details:
|
| Load Regulation: | ±0.5 | Protection: | SCP OVP OTP OCP |
|---|---|---|---|
| Output Current: | 450mA, 0A-1A | Output Frequency: | 50-60HZ |
| Output Voltage: | 12V DC / 5W | Input Voltage: | 90-265Vac |
| High Light: | 450mA Ac Dc Converter Module,5W 12V Ac Dc Converter Module,Hilink 5M12 |
||

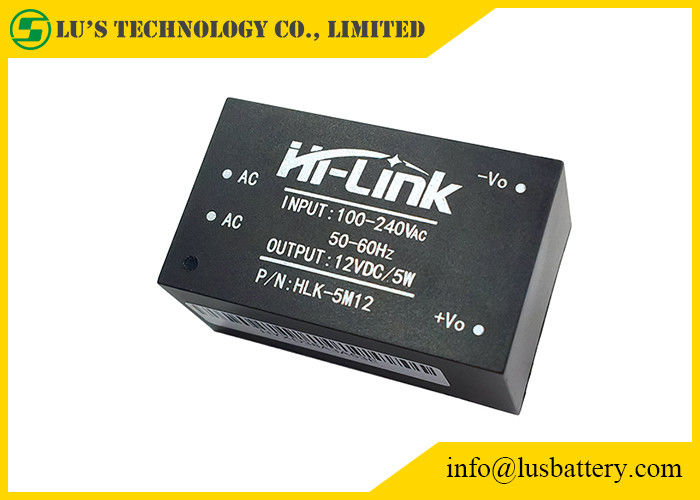

5W Ultra small series power module
5M03/5M05/5M09/5M12/5M24
The 5W ultra-small series module power supply is a small-volume, high-efficiency AC DC power odule supply .
| Items | Technical Parameters | Units | Notes |
| No-load rated output voltage | 12.0±0.1 | Vdc | |
| Full-load tated output voltage | 12.0±0.2 | Vdc | |
| Short time maximum output current | ≥540 | mA | |
| Long time maximum output current | 450 | mA | |
| Voltage regulation | ±0.2 | % | |
| Load regulation | ±0.5 | % | |
| Input low voltage efficiency | Vin=115Vac, Output full load≥69 | % | |
| Input high voltage efficiency | 3Vin=230Vac, Output full load≥70 | % | |
| Output ripple and noise (mVp-p) | ≤70 Rated input voltage,output full load. With 20MHz bandwidth oscilloscope, Load side 10uF and 0.1uF capacitance test | mV | |
| Switching on/off overshoot amplitude | (Rated input voltage, output plus 10% load)≤5 | %Vo | |
| Output over-current protection | Output maximum load 110-150% | A | |
| Output short circuit protection | Direct short circuit in normal output and automatic return to nomal operation after removal of short circuit | No-damage to the whole device |
Product features
1. Ultra-thin, ultra-small, smallest volume;
2. Global universal input voltage(90~265Vac)
3. Low power consumption, green environmental protection, no-load loss<0.1W
4. Low ripple, low noise
5. High output short circuit and over-current protection and self recovery
6. High efficiency, high power density
7. Input and output isolation voltage 3000Vac
8. 100% full load aging and testing
9. High reliability, long life design, continuous working time is greater than 100,000 hours;
10. Meet UL, CE requirements; product design to meet EMC and safety testing requirement;
11. Using high-quality environmentally friendly waterproof plastic potting, moisture, vibration, water and
dust to meet IP65 standards
12. Economic solutions, cost-effective
13. Work without external circuit
14. 1 year quality guarantee period
Hilink intelligent module:
| Type | Description | Inputvoltage | Efficiency |
| HLK-2M03 | Powermodule2W3.3V | 90-245Vac | 69% |
| HLK-2M05 | Powermodule2W5V | 90-245Vac | 69% |
| HLK-2M09 | Powermodule2W9V | 90-245Vac | 69% |
| HLK-2M12 | Powermodule2W12V | 90-245Vac | 69% |
| HLK-2M15 | Powermodule2W15V | 90-245Vac | 69% |
| HLK-2M24 | Powermodule2W24V | 90-245Vac | 69% |
| HLK-PM01 | Powermodule3W5V | 90-265Vac | 72% |
| HLK-PM03 | Powermodule3W3.3V | 90-265Vac | 72% |
| HLK-PM09 | Powermodule3W9V | 90-265Vac | 75% |
| HLK-PM12 | Powermodule3W12V | 90-265Vac | 75% |
| HLK-PM15 | Powermodule3W15V | 90-265Vac | 75% |
| HLK-PM24 | Powermodule3W24V | 90-265Vac | 75% |
| HLK-5M03 | Powermodule5W3.3V | 90-265Vac | 72% |
| HLK-5M05 | Powermodule5W5V | 90-265Vac | 72% |
| HLK5M09 | Powermodule5W9V | 90-265Vac | 75% |
| HLK-5M12 | Powermodule5W12V | 90-265Vac | 75% |
| HLK-5M15 | Powermodule5W15V | 90-265Vac | 75% |
| HLK-5M24 | Powermodule5W24V | 90-265Vac | 75% |
| HLK-10M03 | Powermodule10W3.3V | 90-265Vac | 72% |
| HLK-10M05 | Powermodule10W5V | 90-265Vac | 72% |
| HLK-10M09 | Powermodule10W9V | 90-265Vac | 78% |
| HLK-10M12 | Powermodule10W12V | 90-265Vac | 78% |
| HLK-10M15 | Powermodule10W15V | 90-265Vac | 78% |
| HLK-10M24 | Powermodule10W24V | 90-265Vac | 78% |
| HLK-20M05 | Powermodule20W5V | 90-265Vac | 80% |
| HLK-20M09 | Powermodule20W9V | 90-265Vac | 80% |
| HLK-20M12 | Powermodule20W12V | 90-265Vac | 80% |
| HLK-20M15 | Powermodule20W15V | 90-265Vac | 80% |
| HLK-20M24 | Powermodule20W24V | 90-265Vac | 84% |
| HLK-30M09 | Powermodule30W9V | 90-265Vac | 90% |
| HLK-30M12 | Powermodule30W12V | 90-265Vac | 90% |
| HLK-30M15 | Powermodule30W15V | 90-265Vac | 90% |
| HLK-30M24 | Powermodule30W24V | 90-265Vac | 90% |
| HLK-40M09 | Powermodule40W9V | 90-265Vac | 90% |
| HLK-40M12 | Powermodule40W12V | 90-265Vac | 90% |
| HLK-40M15 | Powermodule40W15V | 90-265Vac | 90% |
| HLK-40M24 | Powermodule40W24V | 90-265Vac | 90% |
