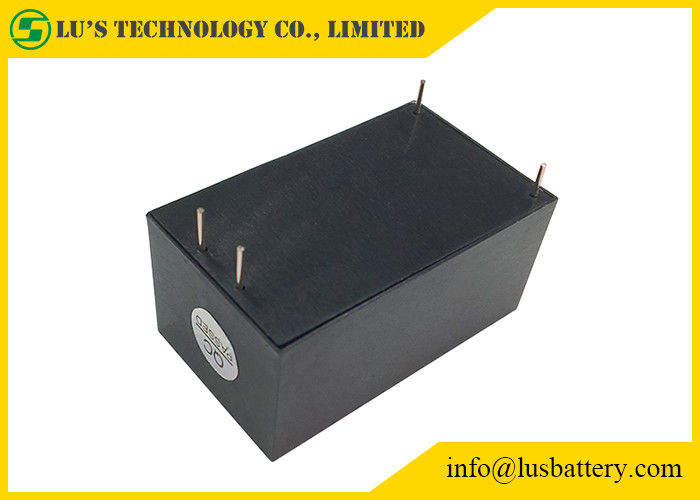

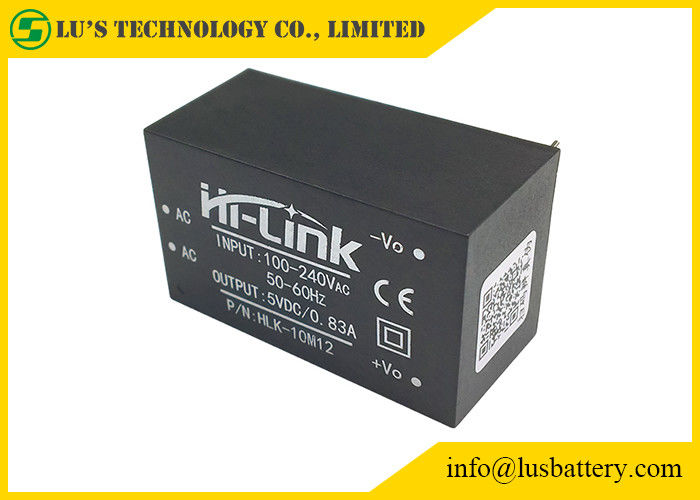

5VDC 0.83A Ac Dc Welder Power Supply Hilink 10M12 5v 700ma

5VDC 0.83A Ac Dc Welder Power Supply Hilink 10M12 5v 700ma
5VDC 0.83A Ac Dc Welder Power Supply Hilink 10M12 5v 700ma 5VDC 0.83A Ac Dc Welder Power Supply Hilink 10M12 5v 700ma 5VDC 0.83A Ac Dc Welder Power Supply Hilink 10M12 5v 700ma

Large Image :  5VDC 0.83A Ac Dc Welder Power Supply Hilink 10M12 5v 700ma

Product Details:
Place of Origin: China
Brand Name: HLK or OEM
Model Number: hilink10M12
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Bargain
Packaging Details: PP bag+Carton
Delivery Time: 3-5 working days
Payment Terms: L/C, T/T
Supply Ability: 50000 pcs per month

5VDC 0.83A Ac Dc Welder Power Supply Hilink 10M12 5v 700ma

Description
Applications: Power Step Down Efficiency: 70%
Power: 10W Description: Power Module 10W 12V
Voltage: 12v Current: 0.83A
Model: HLK-10M12 Sample: Available
High Light:

0.83A Ac Dc Welder Power Supply

,

5VDC Ac Dc Welder Power Supply

,

Hilink 10M12

Details:

List:



Type Description Inputvoltage Efficiency
HLK-2M03 Powermodule2W3.3V 90-245Vac 69%
HLK-2M05 Powermodule2W5V 90-245Vac 69%
HLK-2M09 Powermodule2W9V 90-245Vac 69%
HLK-2M12 Powermodule2W12V 90-245Vac 69%
HLK-2M15 Powermodule2W15V 90-245Vac 69%
HLK-2M24 Powermodule2W24V 90-245Vac 69%
HLK-PM01 Powermodule3W5V 90-265Vac 72%
HLK-PM03 Powermodule3W3.3V 90-265Vac 72%
HLK-PM09 Powermodule3W9V 90-265Vac 75%
HLK-PM12 Powermodule3W12V 90-265Vac 75%
HLK-PM15 Powermodule3W15V 90-265Vac 75%
HLK-PM24 Powermodule3W24V 90-265Vac 75%
HLK-5M03 Powermodule5W3.3V 90-265Vac 72%
HLK-5M05 Powermodule5W5V 90-265Vac 72%
HLK5M09 Powermodule5W9V 90-265Vac 75%
HLK-5M12 Powermodule5W12V 90-265Vac 75%
HLK-5M15 Powermodule5W15V 90-265Vac 75%
HLK-5M24 Powermodule5W24V 90-265Vac 75%
HLK-10M03 Powermodule10W3.3V 90-265Vac 72%
HLK-10M05 Powermodule10W5V 90-265Vac 72%
HLK-10M09 Powermodule10W9V 90-265Vac 78%
HLK-10M12 Powermodule10W12V 90-265Vac 78%
HLK-10M15 Powermodule10W15V 90-265Vac 78%
HLK-10M24 Powermodule10W24V 90-265Vac 78%
HLK-20M05 Powermodule20W5V 90-265Vac 80%
HLK-20M09 Powermodule20W9V 90-265Vac 80%
HLK-20M12 Powermodule20W12V 90-265Vac 80%
HLK-20M15 Powermodule20W15V 90-265Vac 80%
HLK-20M24 Powermodule20W24V 90-265Vac 84%
HLK-30M09 Powermodule30W9V 90-265Vac 90%
HLK-30M12 Powermodule30W12V 90-265Vac 90%
HLK-30M15 Powermodule30W15V 90-265Vac 90%
HLK-30M24 Powermodule30W24V 90-265Vac 90%
HLK-40M09 Powermodule40W9V 90-265Vac 90%
HLK-40M12 Powermodule40W12V 90-265Vac 90%
HLK-40M15 Powermodule40W15V 90-265Vac 90%
HLK-40M24 Powermodule40W24V 90-265Vac 90%

1. Product features:

1). Meet UL, CE requirements
2). Ultra-thin, ultra-small
3). All voltage input (AC: 90 ~ 264V)
4). Low ripple and low noise
5). Output overload and short circuit protection
6). High efficiency, high power density
7). The product is designed to meet the requirements of EMC and Safety Test
8). Low power consumption, environmental protection, no-load loss <0.1W
9).100% load aging and testing
10).1 year warranty perio

2. Environment Condition

Item Name Technical Criteria Unit
Operation Temperature -20—+60 ℃
Store Temperature -40—+80 ℃
Relative humidity 5—95 %
Cooling way Cooling by radiation
Atmospheric pressure 80—106 Kpa
Sea level elevation ≤2000 m
Vibration Vibration coefficient 10~500Hz,2G10min./1cycle, 60min.each along X,Y,Z axes

3.Electrical Characteristic

1. Input characteristics (test at room temperature 20 ℃).

5VDC 0.83A Ac Dc Welder Power Supply Hilink 10M12 5v 700ma 0



tems Technical Parameters Units Notes
No-load rated output voltage 12±0.1 Vdc
Full-load tated output voltage 12±0.2 Vdc
Short time maximum output current ≥900 mA
Long time maximum output current ≥830 mA
Voltage regulation ±2 %
Load regulation ±0.5 %
Output ripple and noise (mVp-p) ≤70 Rated input voltage,output full load. With 20MHz bandwidth oscilloscope, Load side 10uF and 0.1uF capacitance test mV
Switching on/off overshoot amplitude (Rated input voltage, output plus 10% load)≤5 %Vo
Output over-current protection 110-150% of maximum output load A
Output short circuit protection Direct short circuit in normal output and automatic return to nomal operation after removal of short circuit   No-damage to the whole device



4.Safety Characteristics:

4.1 Products designed to meet UL, CE safety certification requirements.
4.2 Safety and electromagnetic compatibility
Designed with the input of 0.5A UL certified insurance;
PCB board using double-sided copper clad plate production, material for the 94-V0 fire rating level;
Safety standards: Compliance with UL1012, EN60950, UL60950
Insulation voltage: I / P-O / P: 2500VAC
Insulation resistance :I / PO / P> 100M Ohms / 500VDC 25 ℃ 70% RH
Conduction and radiation :comply with EN55011, EN55022 (CISPR22)
Electrostatic discharge :IEC / EN 61000-4-2 level 4 8kV / 15kV
RF radiation Immunity: IEC / EN 61000-4-3 See Application Note
4.3 Temperature safety design
At room temperature,the capacitors of this power , the inner surface of the main converter maximum temperature does not exceed 90
℃;
Shell maximum surface temperature does not exceed 60 ℃


5. Logo, packaging, transportation, storage

5.1 Logo
5.1.1 Product logo
In place of products labeled with signs, its content in line with national standards, industry standards.
5.1.2 Packaging logo
Products marked with the manufacturer's name, address, zip code, product type, manufactured year, month, day on the box ;
Marked "up", "moisture" "Handle with care" and other transportation signs, all signs are in line with the provisions of GB 191.
5.2 Packaging
Products are separated using special plastic box packaging, with anti-vibration function, and in accordance with the provisions of
GB 3873.
5.3 Transport
packaged products can be shipped by any transportation service, there should be awnings in transport and no excessive vibration,
impact, etc.
5.4 Storage
Products should be stored in compliance with GB 3873.

Technique

5VDC 0.83A Ac Dc Welder Power Supply Hilink 10M12 5v 700ma 1

12V 10W isolated intelligent household switch step down hlk10m12 mini power supply module for smart device:

5VDC 0.83A Ac Dc Welder Power Supply Hilink 10M12 5v 700ma 2
