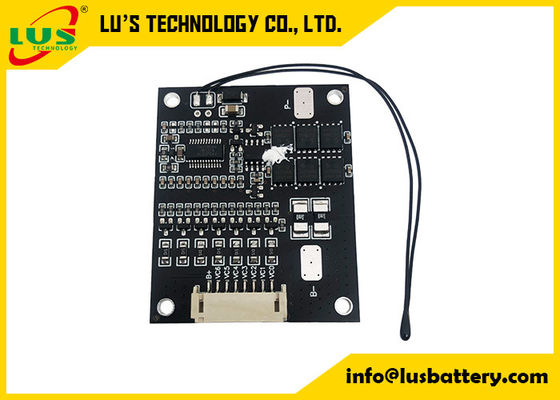

Smart BMS 4S-7S Li-Ion LiFePo4 with parameter adjusting 4S 7S 8S 12S 13S 14S 15S 16S 17S 20S for Lithium Battery
Product name: Protection Circuit Module
Model No: PCM7S25A LN0725
Suitable for 4S to 7S lithium-ion/Lithium polymer/LiFePo4 battery packs
Feature:
1.Protection Circuit Board for 37V 10S Li-ion and Li-polymer battery pack;
2.BMS applies for 10 cells Li-ion/Li-polymer battery in series;
3.To prevent the battery packs from overcharge,overdischarge,over current, over temperature ,short circuit ;
4.With cell balance/equilibrium function;
5.Compatible with both Li-ion and Li-Polymer cells.
6.How balancing function works? after battery pack is fully charged. PCM will detect each cell's voltage and trim higher voltage down until other cells reach the same voltage level. Therefore, it helps cells have longer service life.
Any functions can be choose as follow:
1) Power off detection (It can be locked when removed the PCM from battery pack, to avoid safety accidents caused by users unauthorized disassembly or replacement)
2) MOS statistics of overtemperature protection times (it can lock up after N times overtemperature protection to avoid safety accidents caused by user overload)
3) Power on timing (it can lock up after N years running, it means we can design a lock time depends on the batteries service life, then the user can’t replace the batteries by themself)
4) Counting discharge times (It can design lock up after N times charge and discharge, then if can’t be work end of batteries service life )
5) Add buzzer (it can make a sound to remind the user to charge when the battery is stored for a long time, the voltage is too low due to self discharge to protect batteries)
6) Unique ID (a unique ID number can be added to each board for product tracing)
7) UART communication (communication with PC can be realized, to setting and viewing the data of the above items 1-6 before delivery)
8) Bluetooth function ,then you can check the batteries status by your phone
Specification(the criterion can be adjustable as custominzed):
| No. | PARAMETER | Criterion | |
| 1 | Voltage | Charging voltage | DC:29.4V CC/CV |
| Balance voltage for single cell | 4.125±0.025V | ||
| 2 | Current | Balance current for single cell | 80±5mA |
| Current consumption | ≤25μA | ||
| Maximal continuous charging current | 12A | ||
| Maximal continuous Discharging current | 26A | ||
| 3 | Over charge Protection | Over charge detection voltage for single cell | 4.25±0.025V |
| Over charge delay time | 800mS~1200mS | ||
| Over charge release voltage for single cell | 4.15±0.05V | ||
| 4 | Over discharge protection | Over discharge detection voltage for single cell | 2.80±0.03V |
| Over discharge detection delay time | 800~1200mS | ||
| Over discharge release voltage for single cell | 3.0±0.025V | ||
| 5 | Over current protection | Charge over-current protection | 13.33A±10% |
| Charge Over-Current Delay | 400~600mS | ||
| Discharge over-current protection1 | 33.33A±10% | ||
| Detection delay time1 | 700~1300mS | ||
| Discharge over-current protection2 | 66.66A±20% | ||
| Detection delay time2 | 70~130mS | ||
| Release condition | Cut load,Automatic recovery | ||
| 6 | Short protection | Detection condition | Exterior short circuit |
| Detection delay time | 160~240uS | ||
| Release condition | Cut load,Automatic recovery | ||
| 7 | Resistance | Protection circuitry(MOSFET) | ≤1.67mΩ |
| 8 | Temperature | Operating Temperature Range | -25～+70℃ |
| Storage Temperature Range | -40～+125℃ | ||
| Charge Over Temperature | 48.5℃±5℃ | ||
| Charge Under Temperature | -5℃±5℃ | ||
| Discharge Over Temperature | 70℃±5℃ | ||
| Discharge Under Temperature | -25℃±5℃ | ||
Other Advantage:
Detect and protect the battery from over-charge ,over-dicharge, over-current short-circuit
,temperature detecting protection and auotmatically voltage balance function .
Build with high end electronic components (High End IC and MOSFET ) ,simple structure
design will let it have more stable quality working performance , Flexible application ( it can be used for less
series battery by leaving some connection pins at empty status ),full set of protection measures let it works well
without any infulence from external unexpected accidents.
About your products,just tell us the relative voltage/ cells/ current A or equipment etc,
we will help to recomment the most suitable products for you. or we design for you!
