Product Details:
|
| Voltage: | 3.7V | Battery Model: | LP803450 |
|---|---|---|---|
| Capacity: | 1500mah | Protection: | PCM |
| Terminals: | Pins, Wires, Connector Or Customized | Printing: | Welcome Customized |
| High Light: | PCM Protection Lipo Pouch Cells,LP083450 Rechargeable Li Polymer Battery,1500mAh Rechargeable Li Polymer Battery |
||

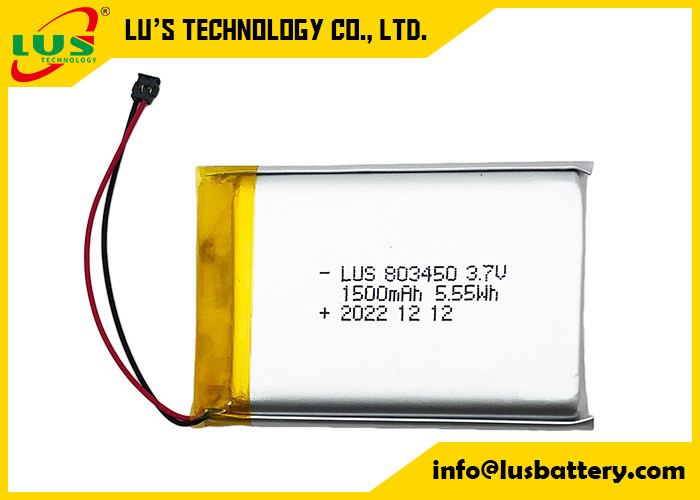

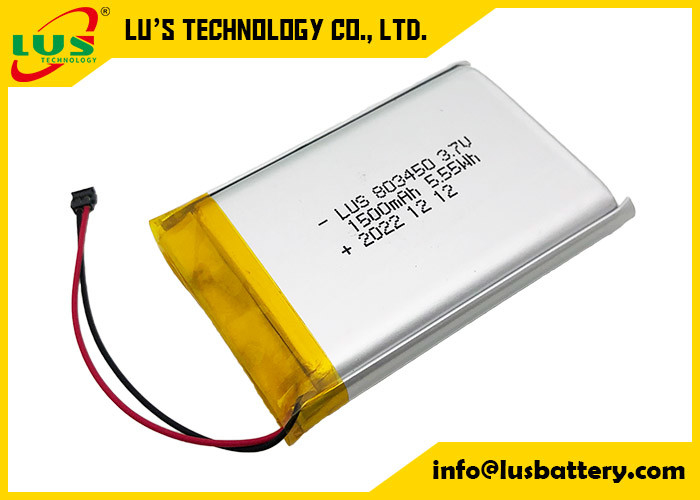

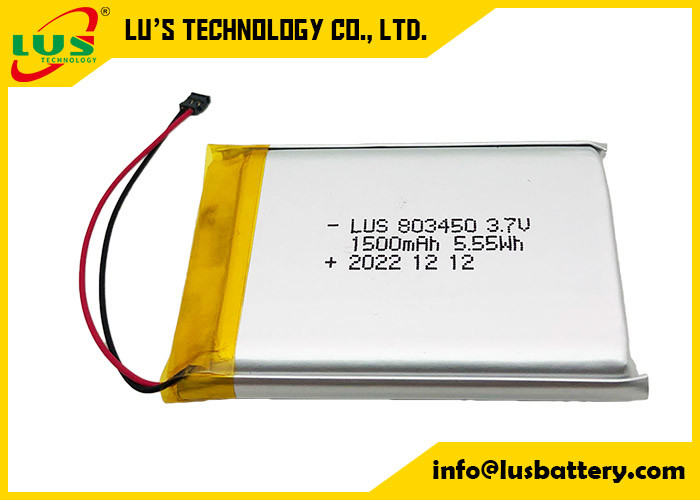

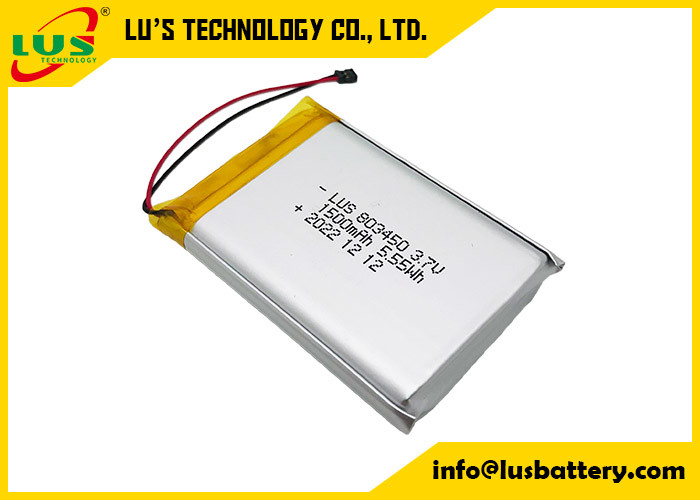

Re-battery LP083450 Li-Po cell 3.7V 1500mAh Rechargeable li-polymer battery LP803450 3.7V 1500mAh
3.7V 1500mAh Rechargeable Lipo Battery Pack with PCB LP803450
This 3.7V Lithium Polymer Battery capacity is 1500mAh, 5.55Wh Lithium Polymer Battery, 3.7V Lithium Polymer Battery with PCM and wires typically, Lithium Polymer Battery Cell is available. NTC and connector can be added as your request.
This Lithium polymer battery has a capacity of 1500mAh for about 5.55Wh. If you need other similar Lithium polymer batteries
3.7V Hot Selling Rechargeable lithium polymer batteries with fast Global shipping, Choosing good lithium polymer batteries for medical equipment please feel free to let us know. Our capacity from 10mah to 10ah with flexible size.
Specifications of cell
| NO. | Items | Specifications |
| 1 |
Charge voltage
|
4.2V |
| 2 |
Nominal voltage
|
3.7V |
| 3 |
Nominal capacity
|
1500mAh 1C Discharge |
| 4 |
Charge current
|
Standard Charging:: Rapid charge: 1.0C |
| 5 |
Standard Charging method
|
0.5C CC(constant current)charge to 4.2V,then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
|
| 6 |
Charging time
|
Standard Charging: 3.0hours(Ref.)
Rapid charge: 2hours(Ref.)
|
| 7 |
Max.charge current
|
1.0C |
| 8 |
Max.discharge current
|
1.5C |
| 9 |
Discharge cut-off voltage
|
2.45V |
| 10 |
Operating temperature
|
Charging: -20℃ ~ 55℃
Discharging: -20℃ ~ 55℃
|
| 11 |
Storage temperature
|
-10℃~ +45℃ |
| 12 |
Cell Weight
|
Approx:28.5g
|
| 13 |
Cell Dimension
|
Length : 50.5mm Max (not including tabs) Width :34.5mm Max Thickness : 8.0mm Max |
Appearance
There shall be no such defect as flaw, crack, rust, leakage, which may adversely affect
commercial value of battery.
Li-Polymer battery Product Advantages:
1) Environmental friendly
2) High density of energy
3) Light weight
4) Low self-discharge
5) Low internal resistance
6) Long cycle life, chargeable up to 500 or 1000 times
7) No memory effect
8) Doesn’t contain Mercury, No fire, No explosion, No leakage
9) Very good and quick charge, capability can be charged to 90% within 10 min.
10) Thickness can be adjusted while width and height keep the same
Major Application:
1)MP3/MP4 player, bluetooth, speakers, car GPS and all possible electronics products
2)Widely applied in Telecommunications, Audio and Video Devices, Information Devices...Etc.
Standard Test Conditions:
Test should be conducted with new batteries within one week after shipment from our factory
and the cells shall not be cycled more than five times before the test.
Unless otherwise specified, test and measurement shall be done under temperature of 20±5℃
and relative humidity of 45~85%.
If it is judged that the test results are not affected by such conditions, the tests may be
conducted at temperature 15~30℃ and humidity 25~85%RH.
LP083450 Polymer Lithium Battery PL803450:
