Product Details:
|
| Type: | Limno2 Battery CR2 | Rechargeable: | Primary Battery CR2 |
|---|---|---|---|
| Voltage: | 3V | Discharge Capacity: | 800±50 MAh |
| Part Number: | CR2 Or CR15H270 | OEM: | Welcomed |
| High Light: | CR2 Dry Cell Battery,3 Volt Limno2 Battery,digital cameras Limno2 Battery |
||

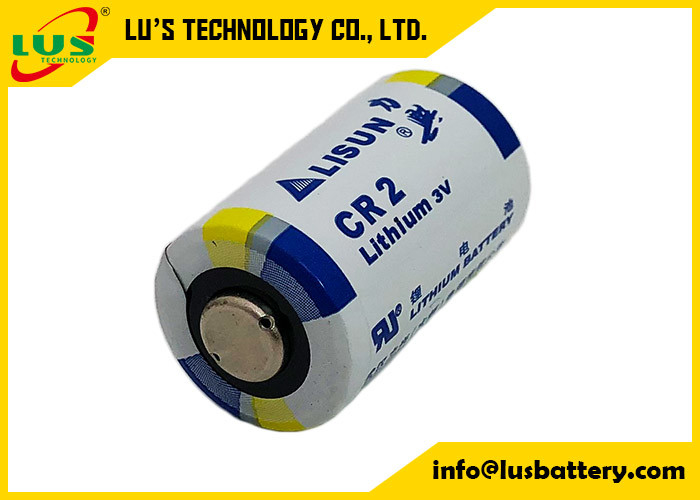

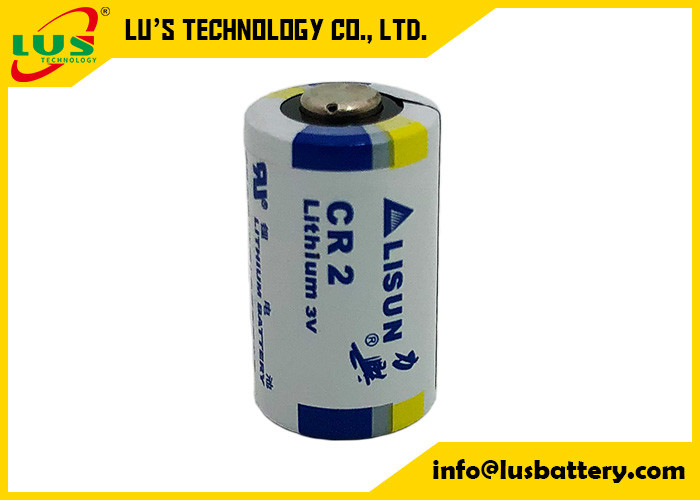

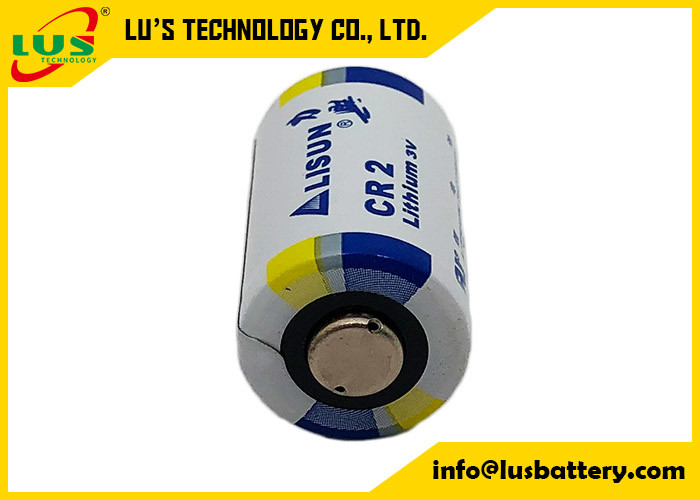

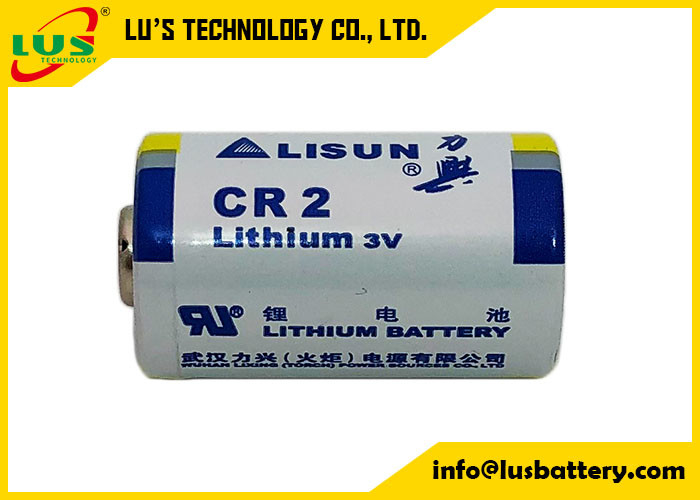

CR15H270 Dry cell battery CR2 3-volt battery 850mAh Long Lasting lithium Batteries CR2
attery Size: CR2
Battery Technology: Lithium
Voltage: 3V
Replaces: CR2, EL1CR2,DL245,KCR2
The CR2 Lithium Batteries are suited for high drain electronic devices like digital cameras and camera flashes.
With this battery’s high energy density, you can be sure that every shot will count.
Its ability to cope with extreme temperatures makes it suitable for outdoor use, even out in the hot desert dunes or snow covered slopes. Its storage and operating temperature ranges from -40C to 60C.
This long lasting battery with its flatter and longer discharge curve can last up to 10 years, making almost 7x more shots than alkaline batteries.
This also translates to minimal replacement of batteries to ensure that you won’t miss capturing those winning moments.
Technical parameters
| No. | Items | Characteristics |
| 1 | Nominal Capacity* | 850 mAh |
| 2 |
Discharge capacity (continuously discharge under 10mA,till 2.0V end voltage) |
800±50 mAh |
| 3 | Nominal Voltage | 3V |
| 4 | Operating Temperature range | -40～+85℃ |
| 5 | Max. Pulse Current | 2500 mA |
| 6 | Max. Continuous Discharge Current | 1000 mA |
| 7 | Structures | Manganese dioxide cathode, lithium anode, organic electrolyte, polypropylene separator and stainless steel cell can and cap, etc. |
| 8 | Weight for Reference | About 11g |
Outline figure is shown as follow
| Model |
Max. diameter Ф1 ( mm ) |
Max. diameter Ф2 ( mm ) |
Max. height H1 ( mm ) |
Min. height H2 ( mm ) |
| CR2 | 15.6 | 6. 5 | 27.0 | 0.7 |
Key features:
High and stable operating voltage
Superior drain capability
Low self-discharge rate (less than 3% after 1year of storage at +20 )
Optional stainless steel container for low magnetic and nickle plated steelcontainer for more
safe design
Hermetic glass-to-metal sealing
Notch technology for safety vent is recommended
PTC for finished product is optional
APPLICATION:
Electronic characteristic:
| No. | Item | Test condition | Performance within one year under room temperature | Performance after one year under room temperature |
| 1 | Open circuit voltage | |||
| Room temperature | 20±2 ℃ | ≥3.0V | ≥3.0V | |
| Low temperature | -20±2 ℃ | ≥3.0V | ≥3.0V | |
| High temperature | 60±2 ℃ | ≥3.0V | ≥3.0V | |
| 2 | Close circuit voltage | Discharge load:10Ω | ||
| Room temperature | 20±2 ℃ | ≥2.60V | ≥2.55V | |
| Low temperature | -20±2 ℃ | ≥2.45V | ≥2.40V | |
| High temperature | 60±2 ℃ | ≥2.65V | ≥2.60V |
| No. | Item | Test condition | Performance within one year under room temperature | Performance after one year under room temperature |
| 3 | Working life | Discharge load:10mA | ||
| End voltage:2.0V | ||||
| Room temperature | 20±2 ℃ | ≥750mAh | ≥700mAh | |
| Low temperature | -20±2 ℃ | ≥550mAh | ≥500mAh | |
| High temperature | 60±2 ℃ | ≥700mAh | ≥650mAh | |
| 4 | Discharge capacity (Celerity test at room temperature) |
Discharge load:50mA End voltage:2.0V |
≥700mAh | ≥650mAh |
Lithium Manganese battery list
| Mode | Voltage (V) | Capacity (mAh) | Discharge Current(mA) | End Voltage(V) | Diameter(mm) | Height (mm) | Weight (g) | Testing Temp.(℃) |
| CR14250 | 3 | 650 | 10 | 2 | 14.5 | 25 | 10 | 23±3 |
| CR14505 | 3 | 1500 | 10 | 2 | 14.5 | 50.5 | 17 | 23±3 |
| CR17335 | 3 | 1500 | 10 | 2 | 17 | 33.5 | 17 | 23±3 |
| CR17450 | 3 | 2000 | 10 | 2 | 17 | 50.5 | 23 | 23±3 |
| CR17505 | 3 | 2500 | 10 | 2 | 17 | 50.5 | 25 | 23±3 |
| CR17345(CR123A) | 3 | 1500 | 10 | 2 | 17 | 34.5 | 17 | 23±3 |
| CR11108(CR1/3N) | 3 | 160 | 2 | 2 | 11.6 | 10.8 | 3.3 | 23±3 |
| CR15H270(CR2) | 3 | 850 | 10 | 2 | 15.6 | 27 | 11 | 23±3 |
| CR-P2 | 6 | 1500 | 10 | 4 | 35x19.5x36 | 38 | 23±3 | |
| 2CR5 | 6 | 1500 | 10 | 4 | 34x45x17 | 38 | 23±3 | |
| CR-V3 | 3 | 3000 | 20 | 2 | 29x14.5x53 | 38 | 23±3 | |
