Product Details:
|
| Type: | Non Rechargeable Lipo Battery 3v | Shelf Life: | Above 10 Years |
|---|---|---|---|
| Color: | Silver | PCM: | No |
| PCB Connect: | Yes | Terminals: | Pins, Wires, Connector Or Customized |
| High Light: | Medical Devices LiMnO2 Battery,Dioxide LiMnO2 Battery,CP255050 Thin Film Lithium Battery |
||

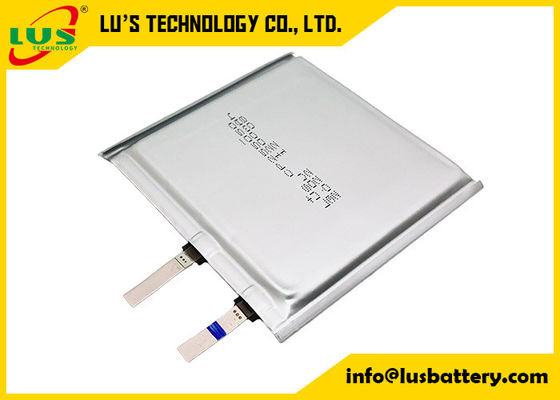

CP255050 3.0V 1200mAh LiMnO2 Battery Thin Film Lithium For Medical Devices
CP255050 3.0V 1200mAh thin film lithium battery for medical devices CP 255050 Ultra Thin Battery
Ultra Thin Battery CP255050 3.0V 1200 mah Lithium Manganese Dioxide Battery
CP255050 Electrical characteristics
1. Nominal capacity: 1200mAh ;
2. Nominal voltage: 3.0V;
3. Max constant discharge current: 300mA ;
4. Max pulse current: 600mA;
5. Operating temperature range: - 20°C~+ 60°C ;
6. Max dimension: 2.5*50*50mm ;
CP series is a hot sale soft pack limno2 battery , with safe and ultra thin design,widely used in IOT solution, GPS, trackers etc.
Hot sale modell such as : CP255050 CP285050 CP305050 CP325050 CP355050 CP505050 CP155050 CP105050 CP085050
More detial you are needed please feel free to contact us
| Name | LimnO2 Battery ultra thin cell |
| Model | CP255050 |
| Voltage | 3.0V |
| Capacity | 1200mah |
| Dimension | 2.6*51*50.5mm |
| Temperature | -40 to +70 |
| Weight | 9.5 g |
| Max contiuned current | 300mA |
| Max plus current | 500mA |
| Terminals | Can be customized |
| OEM and ODM | Welcome |
Application Field:
RFID BATTERY / ID card battery / Payment system battery etc
a. Civilian field: AMR of common instruments and CMOS circuit boards
b. Various smart meters: smart electric meters, water meters, heat meters and gas meters
c. Memories and standby power supplies: memory backup, clock power supplies and data backup power supplies
d. Radio alarm equipment/sensors: smoke alarms and temperature monitors
e. Remote monitoring systems: positioning devices and marine telemetry systems
f. Automotive electronics: tire pressure monitoring systems
g. Industrial field: automation instrumentations and equipment, oil wells, mines, medical equipment, burglar alarm, wireless communication, sea survival, etc.
h. Modern national defense and military fields: aviation, spaceflight, marine electronics, air-sea-land weapons, etc.
| Flexible limno2 battery list | |||||||
| Model | Max. dimensions (mm) | Weight (g) |
Rated voltage(v) | Rated Capacity (mAh) |
Standard Discharge Current (mA) |
Max.Current (mA) | |
| Continuous | Pulse | ||||||
| CP042922 | 0.45*29*22 | 0.4 | 3.0 | 15 | 0.5 | 10 | 20 |
| CP042345 | 0.45*23*45 | 0.8 | 3.0 | 30 | 0.5 | 20 | 35 |
| CP0453730 | 0.48*37*30 | 0.8 | 3.0 | 35 | 0.5 | 15 | 30 |
| CP104848 | 1.2*49*49 | 3.8 | 3.0 | 350 | 1.0 | 50 | 100 |
| CP142828 | 1.5*29*29 | 1.5 | 3.0 | 100 | 1.0 | 15 | 30 |
| CP144920 | 1.4*49*20 | 1.5 | 3.0 | 150 | 1.0 | 20 | 40 |
| CP153030 | 1.6*31*31 | 1.8 | 3.0 | 120 | 1.0 | 50 | 100 |
| CP155050 | 1.6*51*51 | 6.0 | 3.0 | 650 | 5.0 | 500 | 1000 |
| CP2012120 | 2.0*12*125 | 5.5 | 3.0 | 400 | 1.0 | 100 | 200 |
| CP202850 | 2.2*28.5*50 | 3.6 | 3.0 | 380 | 1.0 | 100 | 200 |
| CP224035 | 2.4*41*36 | 4.8 | 3.0 | 580 | 1.0 | 150 | 300 |
| CP223045 | 2.4*31*46 | 4.2 | 3.0 | 480 | 1.0 | 150 | 300 |
| CP224147 | 2.3*45*49 | 7.0 | 3.0 | 800 | 1.0 | 500 | 1200 |
| CP265045 | 2.8*51*46 | 9.0 | 3.0 | 1200 | 1.0 | 300 | 500 |
| CP264558 | 2.8*46*59 | 9.5 | 3.0 | 1250 | 5.0 | 300 | 500 |
| CP305050 | 3.2*51*51 | 12.5 | 3.0 | 1600 | 5.0 | 600 | 1000 |
| CP401720 | 4.2*18*21 | 2.0 | 3.0 | 220 | 1.0 | 50 | 120 |
| CP401922 | 4.2*20*23 | 2.6 | 3.0 | 300 | 1.0 | 100 | 150 |
| CP405050 | 4.2*51*51 | 17.0 | 3.0 | 2400 | 5.0 | 1000 | 1500 |
| CP451728 | 4.5*18*29 | 3.2 | 3.0 | 380 | 1.0 | 120 | 200 |
| CP502525 | 5.2*26*26 | 4.5 | 3.0 | 600 | 5.0 | 200 | 300 |
| CP502440 | 5.2*25*42 | 8.5 | 3.0 | 1200 | 1.0 | 400 | 800 |
| CP503742 | 5.2*38*43 | 13.0 | 3.0 | 1900 | 5.0 | 800 | 1200 |
| CP504644 | 5.2*47*45 | 17.0 | 3.0 | 2500 | 5.0 | 1200 | 2000 |
| CP505050 | 5.2*51*51 | 22.0 | 3.0 | 3000 | 10.0 | 1500 | 2000 |
| CP602026 | 6.2*21*27 | 4.5 | 3.0 | 550 | 1.0 | 200 | 300 |
| CP701725 | 7.2*18*26 | 4.5 | 3.0 | 520 | 1.0 | 150 | 300 |
| CP783970 | 7.8*39*70 | 36.5 | 3.0 | 5500 | 10.0 | 3000 | 5000 |
| CP7839109 | 7.8*39*109 | 63.0 | 3.0 | 10000 | 10.0 | 3000 | 5000 |
| CP802060 | 8.0*20*60 | 15.5 | 3.0 | 2100 | 10.0 | 2000 | 3000 |
| CP952434 | 9.7*25*35 | 11.5 | 3.0 | 1700 | 5.0 | 500 | 800 |
| CP1003742 | 10.2*38*43 | 26.0 | 3.0 | 3900 | 5.0 | 1200 | 2000 |
| CP9V | 17.5*26.5*48.8 | 30.0 | 9.0 | 1200 | 1.0 | 400 | 800 |
| CR123A | 17*34.5 | 17.0 | 3.0 | 1400 | 1.0 | 1500 | 3000 |
| CR2 | 15.5*27 | 11.0 | 3.0 | 800 | 10.0 | 1000 | 2000 |
| CR-P2 | 19.5*34.5 | 37.0 | 6.0 | 1400 | 10.0 | 2000 | 3000 |
| If you can't find the model on list please feel free to contact us for more information. Any special size can be customized. E-mail: cindy@lusbattery.com | |||||||
We can make Li-MnO2 soft battery as thin as 0.4-0.6mm, which is perfect for smart card, security card, RFID ,ETC and more applications.
NO MOQ with fast lead time.
Welcome for any customized.
Thanks.
Main points of flexible packaging lithium manganese battery
Flexible package structure design, special negative electrode structure design, self sealing diaphragm: improve battery safety;
Special raw material pretreatment: improve battery storage and comprehensive performance;
Continuous coating technology: improve battery performance, consistency and reliability;
Special electrolyte formula: improve battery environment, adaptability and storage performance;
HRL coating technology: improve battery safety performance and storage performance;
Battery integrated design technology: to ensure the highest safety performance of batteries, comprehensive design of the performance;
Large capacity flexible packaging lithium manganese battery technology: improve battery composition, group consistency;
Hybrid battery technology: both high specific energy and high pulse current performance.
Production Fearture:
