Product Details:
|
| Type: | Polymer Lithium Battery | Terminals: | Pins, Wires Or Connector Can Be Customized |
|---|---|---|---|
| Package: | PP+Cartons | Shipping: | Express, Sea Or Air |
| Door To Door Service: | Yes, Welcome | Model: | LP602060 |
| High Light: | Polymer Rechargeable Li Ion Batteries,LP602060 Rechargeable Li Ion Batteries,3.58wh Rechargeable Lithium Batteries |
||

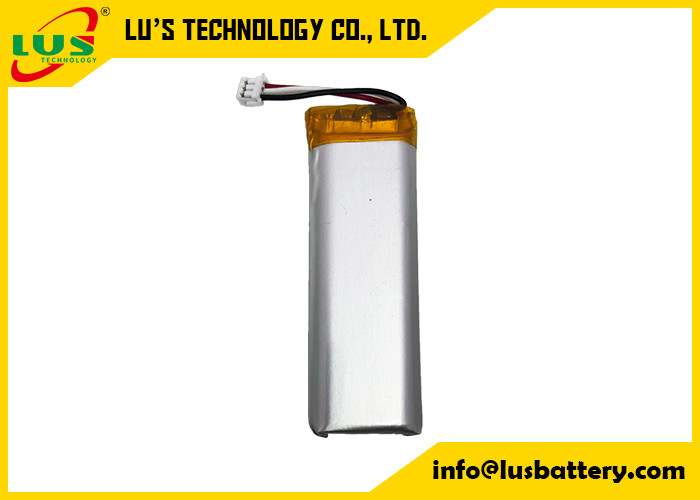

LP602060 Polymer Rechargeable Li Ion Batteries 3.58wh 3.7v 970mah
LP602060 rechargeable li-ion batterie 3.58wh 3.7v 970mah 602060 Li-ion Rechargeable Battery
This Small Li Polymer Battery LP602060 3.7V 970mAh can come with a protection circuit board, 10K NTC, 50mm, 100mm, or customized length of wires, connectors. For small samples, we support MOQ 5 pieces, In addition, we offer tailor-made services, you can make your own exclusive batteries in any shape and size.
|
Type |
Rechargeable |
|
Name |
lithium polymer batteires |
|
Part number |
602060 |
|
Voltage |
3.7v |
|
Capacity |
970mah |
|
Dimension |
6*20*60.5 mm |
|
Cell weight |
17g |
|
Standard Charging Method |
0.2C CC current charge to 4.2V, then CV charge till current declines to 0.01C |
|
Standard Charging Current |
200mA (0.2C) |
|
Standard Charging Time |
6~7 hours |
|
Rapid Charging Current |
970 mA |
|
Rapid Charging Time |
2 hours |
|
Max. Discharging Current |
970 mA |
|
Operating humidity Range |
≤ 90%RH |
Communications equipment: Interphone, PHS phone, Bluetooth earphones
Audio-visual equipment: Digital cameras, Camcorders, Portable DVD, Portable television
Portable Devices: GPS, PMP, PSP, PDA, E-book, Shaver, Portable medical device etc.
Illuminate Devices: Miner lamp, Search light.
Others: RC models, Toys
Lu’s Technology Co., Limited is a Hi-Tech enterprise in China, Which is specialized in the research, design, production and sale of primary lithium battery and rechargeable batteries. Depending on the creative R&D center, the production base and the sale, service net, the company are offering its customers excellent products and services.
3.7V lithium polymer battery list:
| Model | Voltage | Capacity | Model | Voltage | Capacity | Model | Voltage | Capacity | ||
| 022817 | 3.7V | 45mAh | 504040 | 3.7V | 800mAh | 756077 | 3.7V | 4800mAh | ||
| 102040 | 3.7V | 750mAh | 505050 | 3.7V | 1500mAh | 782150 | 3.7V | 800mAh | ||
| 102050 | 3.7V | 1000mAh | 505573 | 3.7V | 2500mAh | 801735 | 3.7V | 500mAh | ||
| 102055 | 3.7V | 1100mAh | 506090 | 3.7V | 3000mAh | 802030 | 3.7V | 400mAh | ||
| 103040 | 3.7V | 1200mAh | 523450 | 3.7V | 1000mAh | 802035 | 3.7V | 500mAh | ||
| 103048 | 3.7V | 1400mAh | 551525 | 3.7V | 170mAh | 802040 | 3.7V | 600mAh | ||
| 103450 | 3.7V | 1800mAh | 551656 | 3.7V | 480mAh | 802050 | 3.7V | 800mAh | ||
| 104050 | 3.7V | 2300mAh | 552045 | 3.7V | 450mAh | 802248 | 3.7V | 1000mAh | ||
| 104060 | 3.7V | 2800mAh | 601235 | 3.7V | 180mAh | 802528 | 3.7V | 480mAh | ||
| 105050 | 3.7V | 3000mAh | 601248 | 3.7V | 250mAh | 802530 | 3.7V | 600mAh | ||
| 105085 | 3.7V | 5000mAh | 601720 | 3.7V | 150mAh | 803035 | 3.7V | 800mAh | ||
| 124040 | 3.7V | 2000mAh | 601730 | 3.7V | 250mAh | 803040 | 3.7V | 900mAh | ||
| 126090 | 3.7V | 8000mAh | 602030 | 3.7V | 300mAh | 803048 | 3.7V | 1200mAh | ||
| 131827 | 3.7V | 500mAh | 602035 | 3.7V | 400mAh | 803448 | 3.7V | 1300mAh | ||
| 132682 | 7.4V | 1500mAh | 602040 | 3.7V | 400mAh | 803450 | 3.7V | 1500mAh | ||
| 285272 | 3.7V | 1000mAh | 602040 | 3.7V | 450mAh | 804050 | 3.7V | 1800mAh | ||
| 301525 | 3.7V | 80mAh | 602047 | 3.7V | 540mAh | 804050 | 3.7V | 2000mAh | ||
| 303020 | 3.7V | 80mAh | 602530 | 3.7V | 450mAh | 804068 | 3.7V | 2500mAh | ||
| 303055 | 3.7V | 500mAh | 602535 | 3.7V | 500mAh | 832248 | 3.7V | 920mAh | ||
| 303997 | 3.7V | 1500mAh | 641447 | 3.7V | 400mAh | 851768 | 3.7V | 850mAh | ||
| 401120 | 3.7V | 55mAh | 652540 | 3.7V | 650mAh | 901744 | 3.7V | 680mAh | ||
| 401042 | 3.7V | 100mAh | 603030 | 3.7V | 500mAh | 902030 | 3.7V | 500mAh | ||
| 401235 | 3.7V | 120mAh | 603040 | 3.7V | 680mAh | 902035 | 3.7V | 600mAh | ||
| 401430 | 3.7V | 120mAh | 603048 | 3.7V | 900mAh | 902248 | 3.7V | 1050mAh | ||
| 402065 | 3.7V | 550mAh | 603759 | 3.7V | 1400mAh | 902535 | 3.7V | 800mAh | ||
| 402535 | 3.7V | 300mAh | 604050 | 3.7V | 1500mAh | 903450 | 3.7V | 1600mAh | ||
| 402780 | 3.7V | 1000mAh | 604060 | 3.7V | 1700mAh | 951768 | 3.7V | 1200mAh | ||
| 402895 | 3.7V | 1200mAh | 604070 | 3.7V | 2000mAh | 955050 | 3.7V | 2800mAh | ||
| 402934 | 3.7V | 350mAh | 605060 | 3.7V | 2000mAh | 14430 | 3.7V | 650mAh | ||
| 405085 | 3.7V | 2000mAh | 605070 | 3.7V | 2300mAh | 18650 | 3.7V | 2600mAh | ||
| 443441 | 3.7V | 650mAh | 605080 | 3.7V | 3000mAh | 134065 | 3.7V | 4000mAh | ||
| 452536 | 3.7V | 400mAh | 606080 | 3.7V | 5000mAh | 103030-2P | 3.7V | 2000mAh | ||
| 501318 | 3.7V | 55mAh | 606090 | 3.7V | 4000mAh | 162027-2P | 3.7V | 700mAh | ||
| 501447 | 3.7V | 280mAh | 634169 | 3.7V | 2000mAh | 502025-4P | 3.7V | 800mAh | ||
| 501535 | 3.7V | 200mAh | 653040 | 3.7V | 800mAh | 414256-2S | 7.4V | 5500mAh | ||
| 501535 | 3.7V | 220mAh | 654060 | 3.7V | 1700mAh | 523450-2S | 7.4V | 1000mAh | ||
| 502025 | 3.7V | 200mAh | 654065 | 3.7V | 2000mAh | 604040-2S | 7.4V | 1000mAh | ||
| 502030 | 3.7V | 250mAh | 701330 | 3.7V | 200mAh | 804262-2S | 7.4V | 2500mAh | ||
| 502035 | 3.7V | 300mAh | 701435 | 3.7V | 300mAh | 102050-2S | 7.4V | 1000mAh | ||
| 502065 | 3.7V | 700mAh | 701488 | 3.7V | 850mAh | 124060-2S | 7.4V | 1700mAh | ||
| 502248 | 3.7V | 500mAh | 701535 | 3.7V | 350mAh | 4030100-2S | 7.4V | 1400mAh | ||
| 502530 | 3.7V | 350mAh | 702050 | 3.7V | 800mAh | 603450-3S | 11.1V | 1200mAh | ||
| 502535 | 3.7V | 400mAh | 702060 | 3.7V | 850mAh | 803273-3S | 11.1V | 2000mAh | ||
| 502545 | 3.7V | 600mAh | 702257 | 3.7V | 1000mAh | 285272-5S | 18.5V | 1000mAh | ||
| 502728 | 3.7V | 360mAh | 703048 | 3.7V | 1000mAh | 18650-30Q-2P | 3.7V | 6000mAh | ||
| 503035 | 3.7V | 500mAh | 703440 | 3.7V | 1000mAh | 18650-2S | 7.4V | 2000mAh | ||
| 503040 | 3.7V | 600mAh | 721944 | 3.7V | 630mAh | 18650-2S2P | 7.4V | 5200mAh | ||
| 503048 | 3.7V | 750mAh | 751635 | 3.7V | 380mAh | 192560 | 3.2V | 1800mAh | ||
| 503070 | 3.7V | 1400mAh | 752035 | 3.7V | 500mAh | 143060 | 3.2V | 1800mAh | ||
| 503759 | 3.7V | 1200mAh | 753450 | 3.7V | 1300mAh |
