Product Details:
|
| Type: | Litium Manganese Dioxide Battery | Size: | 20.0*2.5 Mm |
|---|---|---|---|
| Voltage: | 3.0V | Part Number: | CR2025 |
| Package: | Blistcard | LOGO: | Welcome Customized |
| High Light: | 3 Volt Lithium Coin Batteries IEC,CR2025 3 Volt Lithium Coin Batteries |
||

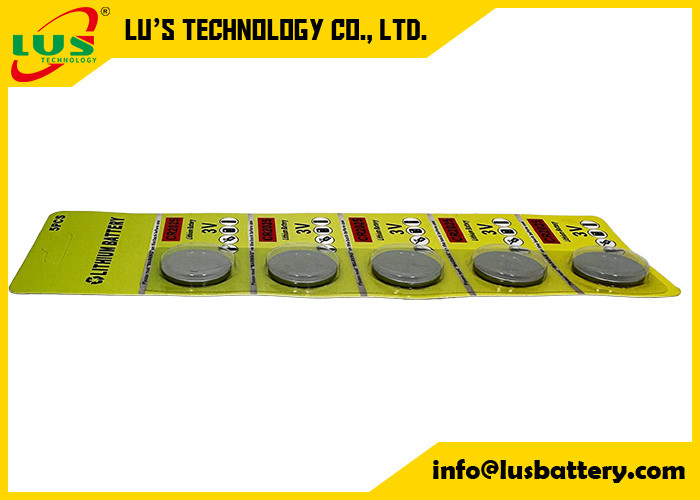

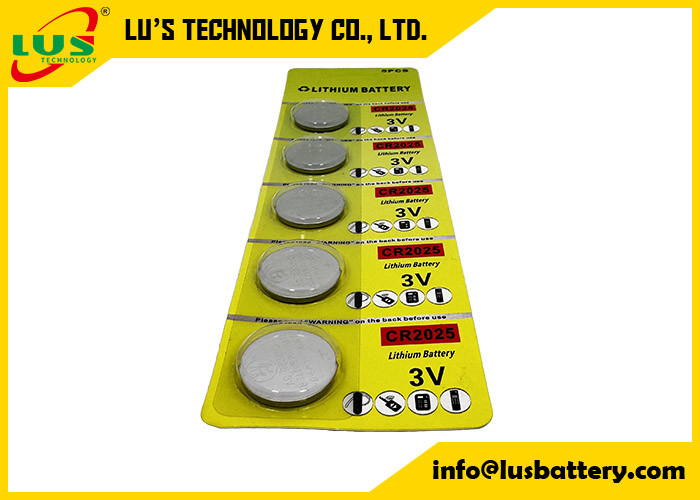

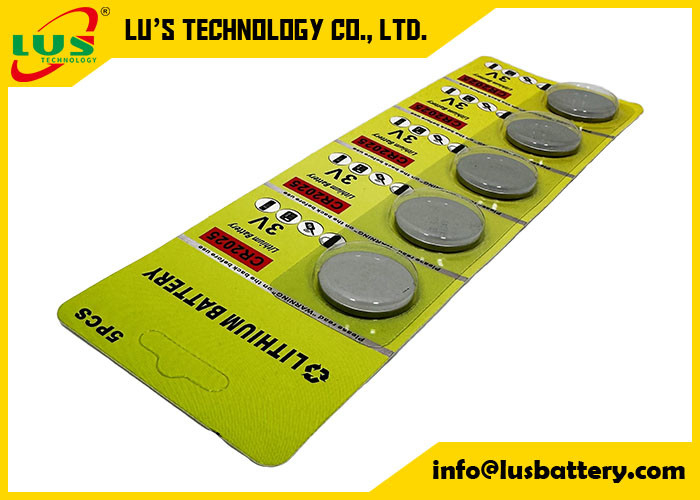

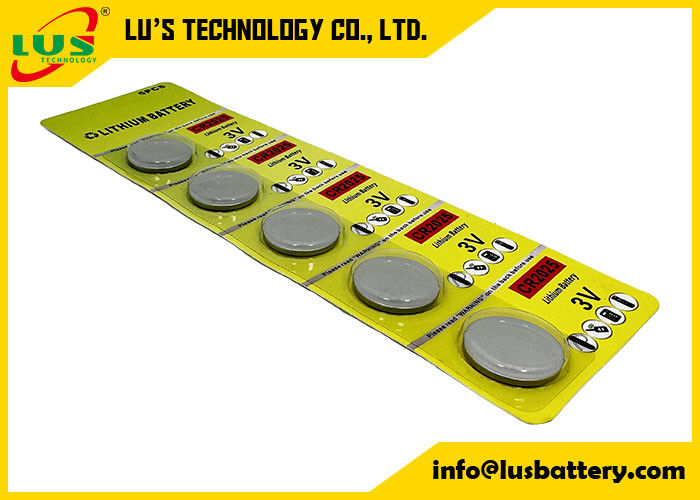

Pack of Five 2025 3 Volt Lithium Coin Batteries IEC CR2025 Replacement for: 280-205, 5003LC, BR2025, DL2025, ECR2025 SB-T14
CR2025 Lithium Batteries (1 Pack of 5)
CR2025 batteries are standard 3 Volt lithium batteries, commonly used in watches, cmos, car keys, electronic toys and calculators.
The CR in the phrase 'CR2025 battery' means that it is 3V lithium manganese dioxide. The 20 means the battery is 20mm in diameter and the 25 means the battery is 2.5mm in thickness.
| Item | Unit | Secification | Conditions |
| Voltage | V | 3.0 | Standard discharge |
| Capacity | Mah | 150 | Standard discharge |
| Weight | g | 2.5 | |
| Chargeable or Not | No | ||
| Storage temperature | ℃ | -10~50 | |
| Self-discharge rate |
≤5% | Stored for 12 months at normal temperature, then continuously discharged with 15 load till 2.0v end-voltage |
| ITEM | CONDITIONS | CHARACTERISTICS |
| Self-discharge rate | Stored for 12 months at normal temperature, then continuously discharged with 15kΩ load till 2.0v end-voltage | ≤5% |
Welcome any terminals by Customized
Suggestions And Cautions
1 Install batteries correctly.
2 Ensure the contact points to be clean and conductive.
3 Do not mix different types, different brands batteries to serve together.
4 Do not heat, recharge the batteries.
5 Do not dispose of the batteries in fire.
6 Keep away from the small children, if swallowed promptly see doctor.
7 Pay attention to the producing date.
Coin Cell Battery Application:
Widely used in watches,computers, laptops, music card;
Voice table,hearing aids, electroni cnotepads, dict;
Cameras, medical devices, flashing lights;
Shoes, lamps and other electronic products.
Such as:
Vacuum cleaner, shaver, MP3, MP4, Digital camera, portable computer,
Lighting, electrical toys, electronic game Machine and electrical vehicles,
Cordless Phones, interphones, and all kinds of Cell phones.
Advantage for Button Cell Limno2 battery:
High capacity and long cycle life
Long service lifespan
Excellent life cycle
Enviromental friendly
High energy density
Excellent overcharge performance
Rapid charge performance
Lower inner resistance and low self-discharge
Safety and reliability
Wide temperature range, specially design battery can used in high and low temperature
Good quality with competitive price and best service
3.0v Button cell:
| Mode | Voltage(V) | Capacity(mAh) | Dimension(mm) | Weight(g) | Chargeable or Non |
| CR2032 | 3 | 220 | 20.0*3.2 | 3 | Non |
| CR2032 | 3 | 240 | 20.0*3.2 | 3 | Non |
| CR1220 | 3 | 35 | 12.5*2.0 | 0.8 | Non |
| CR1225 | 3 | 50 | 12.5*2.5 | 0.9 | Non |
| CR1616 | 3 | 50 | 16.0*1.6 | 1.1 | Non |
| CR1620 | 3 | 70 | 16.0*2.0 | 1.3 | Non |
| CR1632 | 3 | 120 | 16.0*3.2 | 1.8 | Non |
| CR2016 | 3 | 83 | 20.0*1.6 | 1.7 | Non |
| CR2025 | 3 | 150 | 20.0*2.5 | 2.5 | Non |
| CR2450 | 3 | 600 | 24.5*5.0 | 6.2 | Non |
| CR3032 | 3 | 550 | 30.0*3.2 | 7 | Non |
| ML1220 | 3 | 17 | 12.5*2.0 | 0.8 | Yes |
