Product Details:
|
| Series: | Button Cell | Materies: | Litium Manganese Dioxide Battery |
|---|---|---|---|
| Part Number: | CR2032 | Voltage: | 3.0V |
| Capactiy: | 240mah | Package: | Blistcard |
| High Light: | 5 pcs Lithium Button Cell,CR2032 Lithium Button Cell |
||

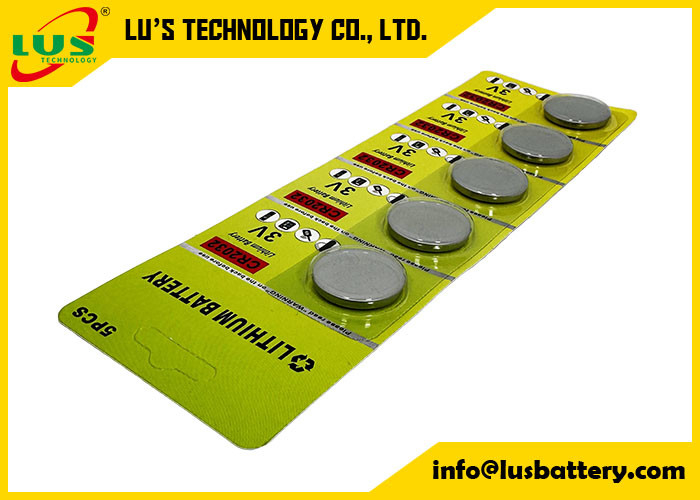

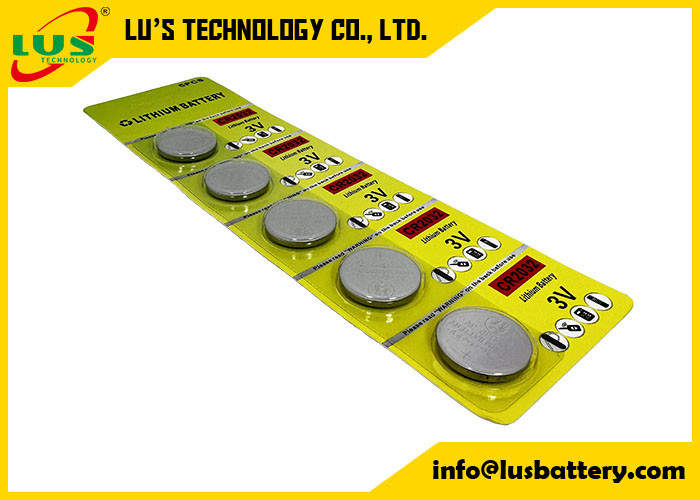

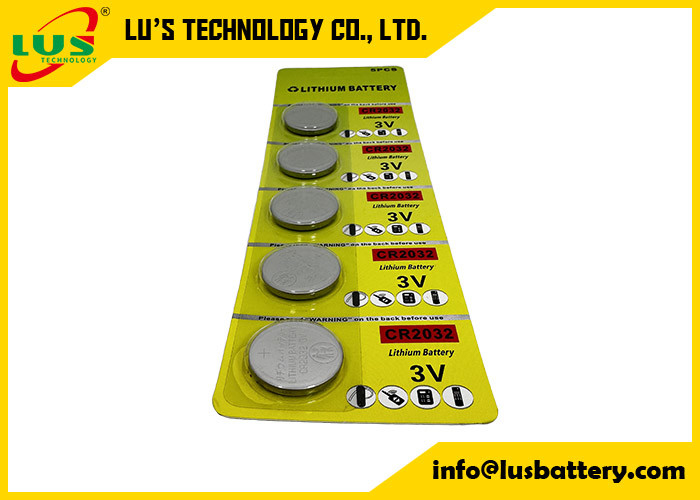

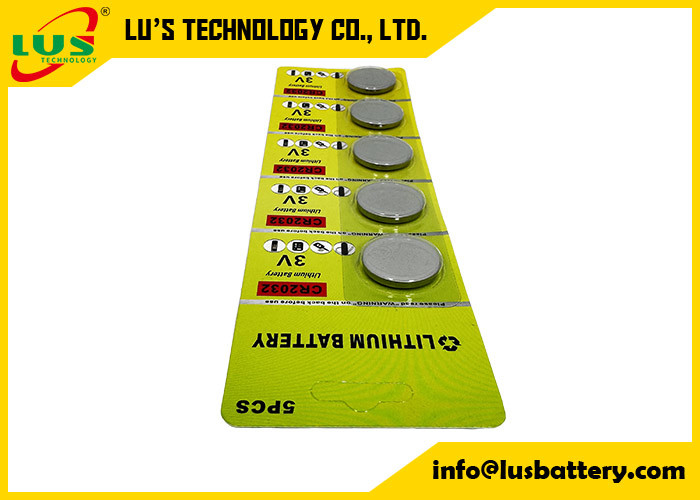

CR2032 Battery Watch Batteries 5 pcs CR2032 Button Cell Batteries CR 2032 Volts 3 For automotive keyless entry systems
CR-2032PG/1B genuine CR2032 Lithium Coin Battery 3V 1Pack 220 mAh Button Cell replaces DL2032, ECR2032, 5004LC, KECR2032, GPCR2032, SB-T51, CR2032BH, CR2032EC
CR2032 Lithium Thick Coin Cell Battery 5 Pack
| Item | Unit | Secification | Conditions |
| Voltage | V | 3.0 | Standard discharge |
| Capacity | Mah | 240 | Standard discharge |
| Instandtaneous Short-circuit current | mA | ≥250 | Time≤0.5 second |
| Off-load voltage | V | ≥3.25 | |
| Storage temperature | ℃ | -10~50 | |
| Standard weight | g | 3.0 | Unit cell |
| Self-discharge rate |
≤5% | Stored for 12 months at normal temperature, then continuously discharged with 15 load till 2.0v end-voltage |
| ITEM | CONDITIONS | CHARACTERISTICS |
| Self-discharge rate | Stored for 12 months at normal temperature, then continuously discharged with 15kΩ load till 2.0v end-voltage | ≤5% |
Suggestions And Cautions
1 Install batteries correctly.
2 Ensure the contact points to be clean and conductive.
3 Do not mix different types, different brands batteries to serve together.
4 Do not heat, recharge the batteries.
5 Do not dispose of the batteries in fire.
6 Keep away from the small children, if swallowed promptly see doctor.
7 Pay attention to the producing date.
Coin Cell Battery Application:
Widely used in watches,computers, laptops, music card;
Voice table,hearing aids, electroni cnotepads, dict;
Cameras, medical devices, flashing lights;
Shoes, lamps and other electronic products.
Such as:
Vacuum cleaner, shaver, MP3, MP4, Digital camera, portable computer,
Lighting, electrical toys, electronic game Machine and electrical vehicles,
Cordless Phones, interphones, and all kinds of Cell phones.
Advantage for Button Cell Battery Lithium Limno2:
High capacity and long cycle life
Long service lifespan
Excellent life cycle
Enviromental friendly
High energy density
Excellent overcharge performance
Rapid charge performance
Lower inner resistance and low self-discharge
Safety and reliability
Wide temperature range, specially design battery can used in high and low temperature
Good quality with competitive price and best service
3.0v Button cell:
| Mode | Voltage(V) | Capacity(mAh) | Dimension(mm) | Weight(g) | Chargeable or Non |
| CR2032 | 3 | 220 | 20.0*3.2 | 3 | Non |
| CR2032 | 3 | 240 | 20.0*3.2 | 3 | Non |
| CR1220 | 3 | 35 | 12.5*2.0 | 0.8 | Non |
| CR1225 | 3 | 50 | 12.5*2.5 | 0.9 | Non |
| CR1616 | 3 | 50 | 16.0*1.6 | 1.1 | Non |
| CR1620 | 3 | 70 | 16.0*2.0 | 1.3 | Non |
| CR1632 | 3 | 120 | 16.0*3.2 | 1.8 | Non |
| CR2016 | 3 | 83 | 20.0*1.6 | 1.7 | Non |
| CR2025 | 3 | 150 | 20.0*2.5 | 2.5 | Non |
| CR2450 | 3 | 600 | 24.5*5.0 | 6.2 | Non |
| CR3032 | 3 | 550 | 30.0*3.2 | 7 | Non |
| ML1220 | 3 | 17 | 12.5*2.0 | 0.8 | Yes |
1) Comprehensive
One-stop service of R&D, production, and marketing of all kinds batteries and battery packs.
High production capability can keep stable and reliable supply to enhance the competitive of your market.
Products cover the most complete category of batteries: 3V lithium primary battery, Lithium polymer battery, Ni-MH battery& pack, Ni-Cd battery& pack, Lithium thionyl chloride battery, Ultra thin battery and Custom/OEM button battery,Battery holder, Battery charger,etc.
Professional R&D team aims to providing the most creative and advanced products to facilitate your business development.
With strong technical strength; Sophisticated production equipment; Rich-experienced sales and after-sales team.
3. Fast
Quick delivery: 3 -7 days for samples; 15-20 days for batch goods.
Prompt direct-shipping or drop-shipping to your customers.
4. Price
Affordable and competitive price for each product with the highest quality.
5. Quality
Complete and strict product testing is accordance with international test standard.
100% tested and inspection before shipping to make no unqualified goods in order to reduce your risk.
Talent in green products with environmental friendly chemistry.
6. Reputation
Products are highly appreciated and commented by our customers from all over the world.
Support multiple payment way,such as L/C,T/T,Western Union,Paypal,etc.
OEM/ODM service and customize design to meet customers' special demands. Your logo and brand can be added as your request.
We will definitely provide our full support to help you achieve your business goals with our highest quality, best price, fast delivery and sincerest service.
Sincerely looking forward to from you. Many thanks!
