Product Details:
|
| Battery Type: | Lithium Ion Battery | Cell Number: | 18650 |
|---|---|---|---|
| Capacity: | 6600mah | Voltage: | 7.4v |
| Protection: | BMS | Terminals: | Wires/connector Depends On Your Needed |
| High Light: | 6600mAh Li-Ion Battery,Rechargeable Lithium Ion Battery Pack 7.4V,UPS Lithium Ion Battery Pack |
||
Rechargeable Lithium Ion Battery Pack 7.4V 6600mAh li-ion battery make with ICR18650 CELL
li-ion battery 7.4v 6600mah lithium ion battery 18650 battery pack 2s3p 7.4v 6600mah

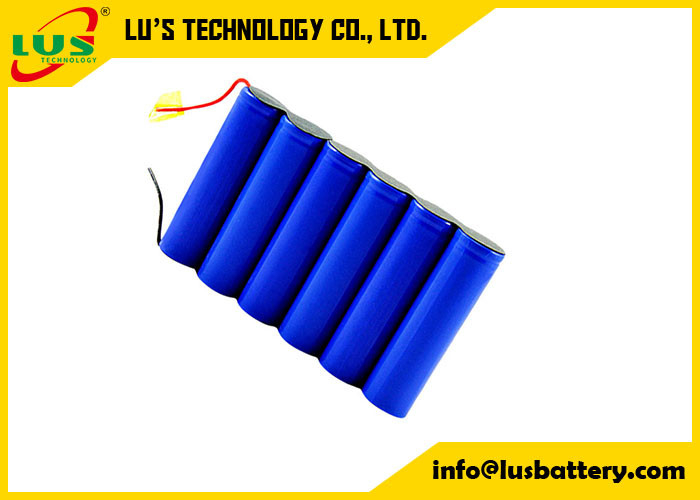

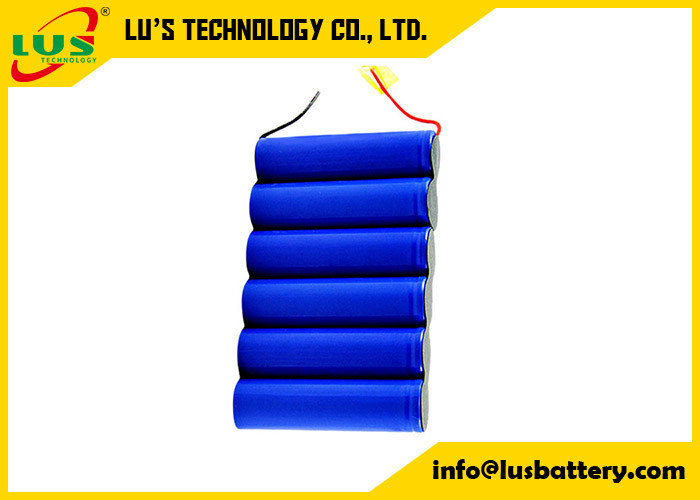

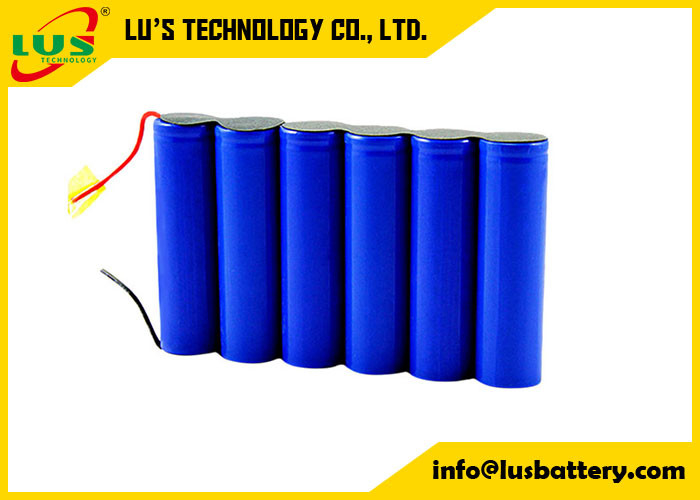

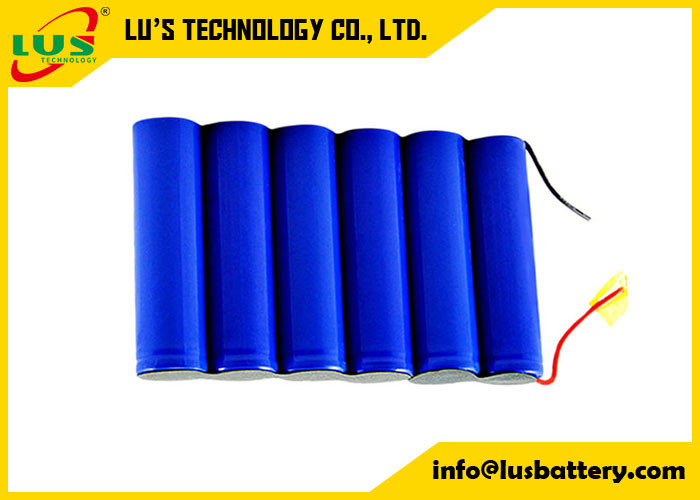

This high quality 7.4V Li-Ion rechargeable battery pack is made from 6 x 2200mAh cylindrical 18650 cells and comes equipped with a Protection Circuit Board
7.4v 6600mah 18650 lithium-ion battery for portable electronics
You also can choose below battery cell to make your battery pack, we are welcome any customized.
| Model | Capacity | Min. capacity | Continuous discharge | Internal resistance | Certificate |
| 18650F56 | 2200 | 2180mAh | 1C | ≤ 60mΩ | ULCBBISUNBSMI |
| 18650F8R | 2600 | 2550mAh | 1C(2550mA) | ≤ 60mΩ | ULCBBISUNBSMI |
| 18650F9L | 3350 | 3250mAh | 0.5C (1625mA)(-20~5℃) 1.5C (4875mA)(5~50℃) |
≤ 60mΩ | ULCBBISUNBSMI |
| 18650F30 | 3000 | 2900mAh | 1C | ≤ 60mΩ | ULCBBISUNBSMI |
| 18650F30P | 3000 | 2900mAh | 20A(无切断温度) 30A(切断温度 80℃) |
≤ 18mΩ | ULCBBISUNBSMI |
| 21700F2E | 5000 | 4900mAh | 3.0C(14400mA) (70℃温度切断) |
≤ 25mΩ | ULCBBISUNBSMI |
| 18650F8L | 2600 | 2500mAh | 3C | ≤ 25mΩ(≥ 4.15V) | ULCBBISUNBSMI |
| 18650F8M7 | 2600 | 2500mAh | 3C | ≤ 30mΩ | ULCBBISUNBSMI |
| 18650F8P | 2500 | 2500mAh | 20A(无切断温度) 30A(切断温度 80℃) |
≤ 18mΩ | ULCBBISUNBSMI |
| 18650F9E | 3500 | 3450mAh | 10000mA | ≤ 40mΩ | ULCBBISUNBSMI |
| 18650F9M | 3200 | 3100mAh | 3.0C(9300mA) | ≤ 40mΩ | ULCBBISUNBSMI |
Hot sale model 18650 / 26650
| Cell model | Voltage/V | Capacity/mAh | Capacity/mAh | Charge current | Discharge current | |||
| Standard | Max. | Standard | Rapid | Max. | ||||
| IFR18650-1600mAh-3.2V | 3.2 | 1600 | ≥1550 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFR18650-1800mAh-3.2V | 3.2 | 1800 | ≥1750 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFR26650-3200mAh-3.2V | 3.2 | 3200 | ≥3100 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFR26650-3600mAh-3.2V | 3.2 | 3600 | ≥3550 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFR26650-3800mAh-3.2V | 3.2 | 3800 | ≥3750 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFR26650-4000mAh-3.2V | 3.2 | 4000 | ≥3950 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFRP18650-1100mAh-3.2V | 3.2 | 1100 | ≥1050 | 2C | 5C | 5C | 10C | 30C |
| IFRP26650-3000mAh-3.2V | 3.2 | 3000 | ≥2900 | 1C | 3C | 2C | 5C | 10C |
| INR18650-2200mAh-3.6V | 3.6 | 2200 | ≥2150 | 0.5C | 1C | 0.5C | 1C | 3C |
| INR18650-2600mAh-3.6V | 3.6 | 2600 | ≥2550 | 0.3C | 0.5C | 0.5C | 1C | 2C |
| INR26650-5000mAh-3.6V | 3.6 | 5000 | ≥4900 | 0.5C | 1C | 0.5C | 1C | 2C |
Application of Lithium Battery
⇒ UPS, Solar, Wind, Mobile generator, Back up power
⇒ Solar power bank, Solar LED lighting, Solar street light
⇒ Scooter, E-bike, Golf cart, E-motor, E-tour car, tricycle
⇒ Electric drill, electric saw, lawn mower and so on
⇒ Remote control cars, boat, aircraft, toys
⇒ Medical devices, equipment and portable equipment
⇒ Bluetooth, GPS, Wearable device, Power supply, Wireless
1. Back-up System and UPS: Telecom Base / CATV system / Computer Server Center / Medical Instruments / Military Equipment.
2. Energy Storage: Solar-Wind Power System / City Grid (On/Off) / Community and Family / RV Motorhome / Golf Carts Battery / Boat Marine Yachts / Electric Skateboard / Vehicle.
3. Other Applications: Security and Electronics / Mobile POS, Mining Light/ Torch / LED Light / Emergency Light / LED Backup / Engine Starting Battery,etc.
The lifepo4 battery pack is widely used for RV, Camper, Yacht, Golf cart, Solar energy storage system, electric bicycle, electric bike, electric wheelchair, power tools, electric scooter,emergency light,etc
Advantages:
High energy particle density.
Always stable with a certain voltage.
Reduce environmental pollution.
Long service life
Safe
Capacity and voltage are always stable.
High safety when the battery automatically disconnects when fully charged.
Batteries are manufactured and distributed from the factory
1-way current, low self-discharge capacity
Battery covered by PVC
