Product Details:
|
| Capacity: | 3.6 Ah | Rated Voltage: | 3.6V |
|---|---|---|---|
| Operating Temperature Range: | -55～85℃ | Weight: | Approx 25 G |
| Storage Temperature (recommended): | +30C | Discharge Characteristics: | 23±2℃ |
| LOGO: | Can Be Customized | Terminals: | Pins, Tabs, Wires, Connector |
| SMT PCB: | YES | ||
| High Light: | ER17505 Non Rechargeable Battery,3.6V 3.6Ah Non Rechargeable Battery,Li-SOCl2 Cylindrical Battery |
||
ER17505 size A 3.6V 3.6Ah Non-rechargeable Battery 17505 ER17505 Li-SOCl2 Cylindrical Battery
3.6V Lithium-thionyl chloride [Li-SOCl2] A-size bobbin battery ER17505 Widely used in utilities,medical, stainless steel container etc

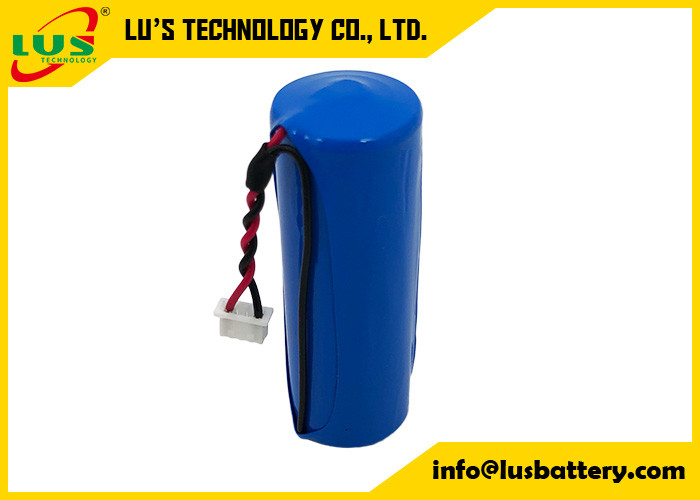

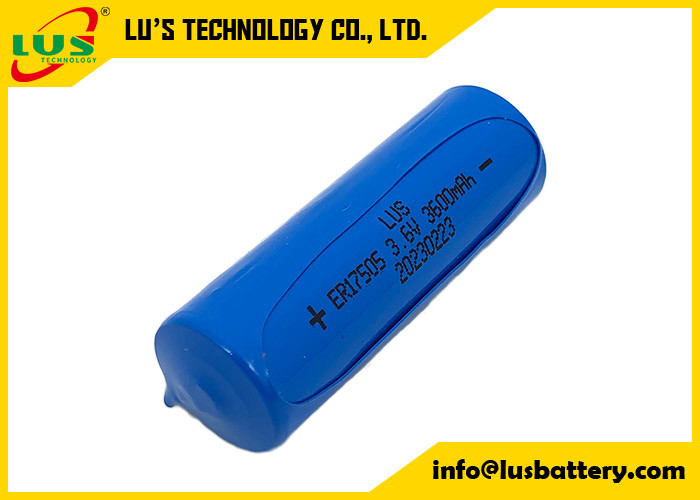

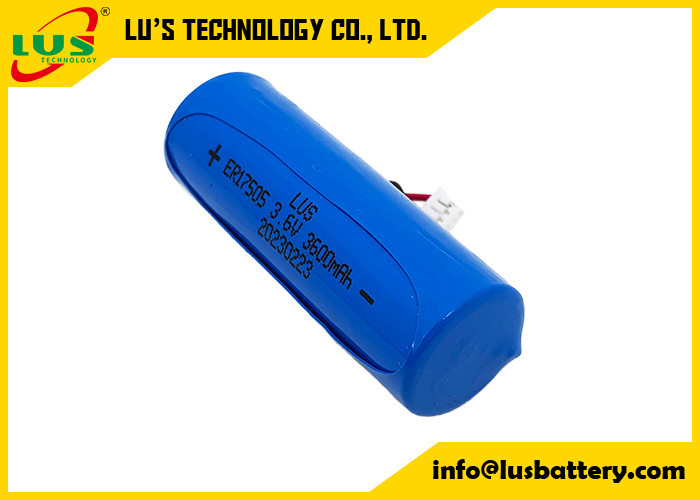

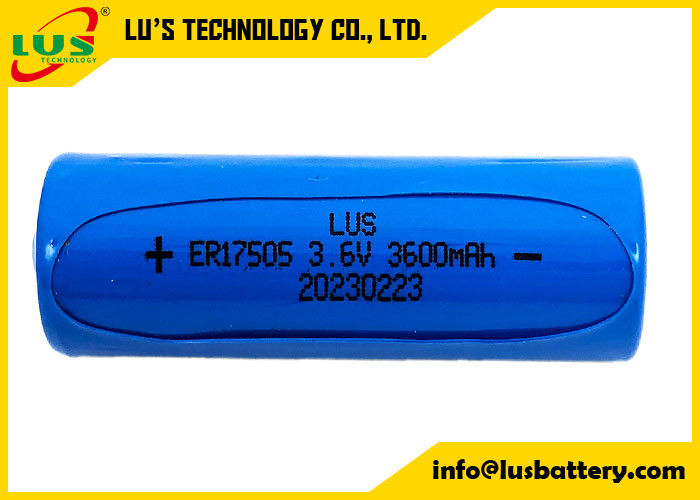

ER17505, A Size, 3.6V/ 3600 mAh Lithium Thionyl Chloride Battery Bobbin Type. Non-Rechargeable cell
The ER17505 battery is a non-rechargeable lithium battery measuring 17.5 * 50.5 mm and is one of the ER series batteries.
ER17505 lithium battery Drawing:
3.6V battery ER17505 Technical data:
| Name | Lithium Thionyl Chloride Battery |
| Model | ER17505 |
| Size | A |
| Nominal capacity (3mA~2V) | 3.6 Ah |
| Rated voltage | 3.6 V |
| Max constant current of discharge | 120 mA |
| Max discharge current(pulse) | 200 mA |
| Weight | 25 g |
| Operating temperature range | -55℃~+85℃ |
| Storage temperature (recommended) | +30℃ |
Application:
1)With high-operating voltage and stable
2)Performance independent from cell orientation
3)Superior shelf lifespan and reliability: over 10 years at room temperature and self-discharge rate <1% of nominal capacity per year
4)Bobbin structure energy type and best suited for low and discharge current
5)May require depassivation before medium currents
6)Typical values relative to cells stored for one year or less at 30°C
7)Adding the spot, welding wire, welding plug, label are OK
Lithium Battery 3.6v:
| Model | voltage (v) | capacity(mAh) | demension(mm) | Nominal Discharge Current(mA) | weight (g) | |
| Diameter | Height | |||||
| ER10250 | 3.6 | 400 | 10.5 | 25 | 0.5 | 5 |
| ER10280 | 3.6 | 450 | 10.5 | 28 | 0.5 | 6 |
| ER10450 | 3.6 | 700 | 10.5 | 45 | 1 | 8 |
| ER14250 | 3.6 | 1200 | 14.5 | 25.4 | 1 | 10 |
| ER14335 | 3.6 | 1600 | 14.5 | 33.5 | 1 | 12 |
| ER14505 | 3.6 | 2400 | 14.5 | 50.5 | 2 | 19 |
| ER17335 | 3.6 | 1800 | 17.5 | 34 | 3 | 18 |
| ER17505 | 3.6 | 3200 | 17.5 | 50.5 | 3 | 26 |
| ER18505 | 3.6 | 3600 | 18.7 | 50.5 | 3 | 28 |
| ER26500 | 3.6 | 9000 | 26.2 | 50 | 4 | 52 |
| ER34320 | 3.6 | 8000 | 34.2 | 32.5 | 4 | 58 |
| ER34615 | 3.6 | 19000 | 34.2 | 61.5 | 5 | 100 |
| ER341245 | 3.6 | 36000 | 34.2 | 124.5 | 10 | 195 |
| ER14250M | 3.6 | 800 | 14.5 | 25.4 | 2 | 10 |
| ER14335M | 3.6 | 1300 | 14.5 | 33.5 | 3 | 13 |
| ER14505M | 3.6 | 2200 | 14.5 | 50.5 | 4 | 19 |
| ER17505M | 3.6 | 2800 | 17.5 | 50.5 | 5 | 27 |
| ER18505M | 3.6 | 3200 | 18.7 | 50.5 | 5 | 28 |
| ER26500M | 3.6 | 6500 | 26.2 | 50 | 10 | 52 |
| ER34615M | 3.6 | 14000 | 34.2 | 61.5 | 15 | 100 |
| ER13150S | 3.6 | 300 | 13.2 | 15 | 0.5 | 6 |
| ER14250S | 3.6 | 750 | 14.5 | 25.2 | 1 | 10 |
| ER14505S | 3.6 | 1600 | 14.5 | 50.5 | 2 | 20 |
| ER26500S | 3.6 | 4100 | 26.2 | 50 | 4 | 60 |
| ER34615S | 3.6 | 10500 | 34.2 | 61.5 | 5 | 106 |
| ER2450 | 3.6 | 500 | 24.5 | 5.9 | 1 | 9 |
| ER32100 | 3.6 | 1700 | 32.9 | 10 | 1 | 25 |
| ER3265 | 3.6 | 1000 | 32.9 | 6.5 | 1 | 17 |
| ER9V | 10.8 | 1200 | 17*26.3*48.5 | 1 | 30 | |
| EF651615 | 3.6 | 400 | 16.8*15.8*6.8 | 1 | 5 | |
| EF651625 | 3.6 | 750 | 16.8*25.8*6.8 | 1 | 8 | |
| Remark: 1)"M"-Power Type; 2)"S"-High Temperature; | ||||||
