Product Details:
|
| Rated Voltage: | 3.6V | Operating Temperature Range: | -55～85℃ |
|---|---|---|---|
| Weight: | Approx 25 G | Storage Temperature (recommended): | +30C |
| Discharge Characteristics: | 23±2℃ | Terminals: | Pins, Tabs, Wires, Connector |
| High Light: | Li-SOCl2 Lithium Cell Battery,ER17505 Primary Lithium Cell Battery,High Capacity Li-SOCl2 Battery |
||

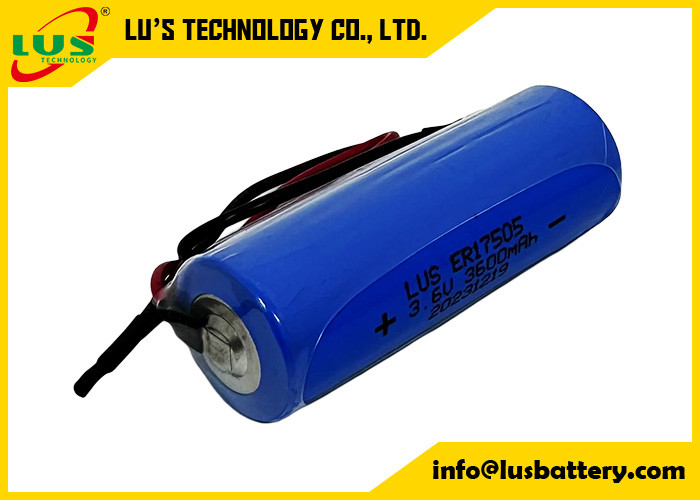

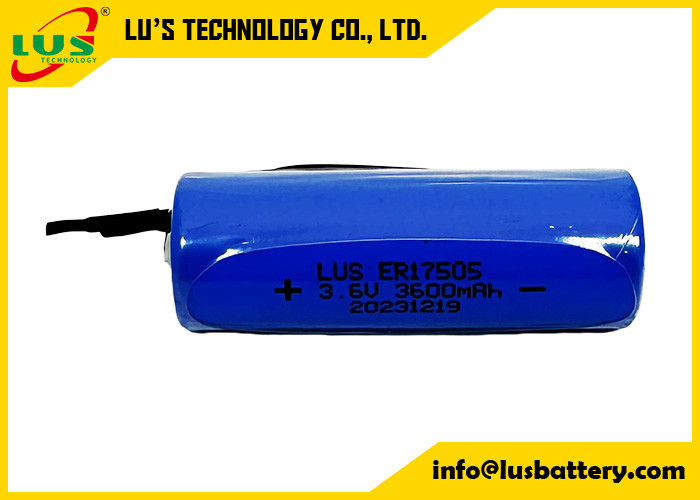

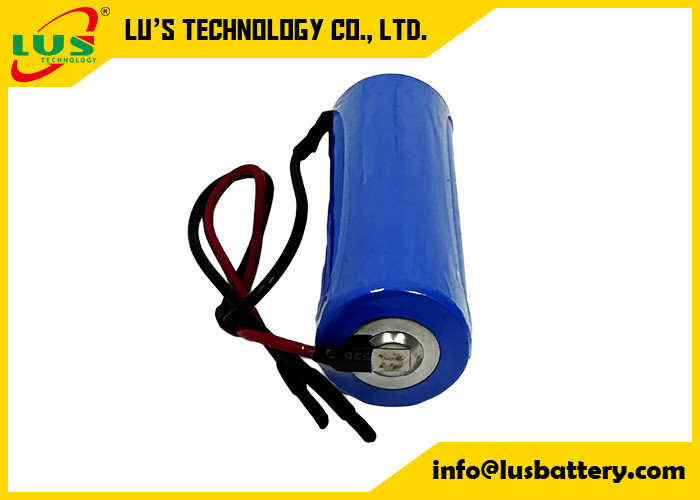

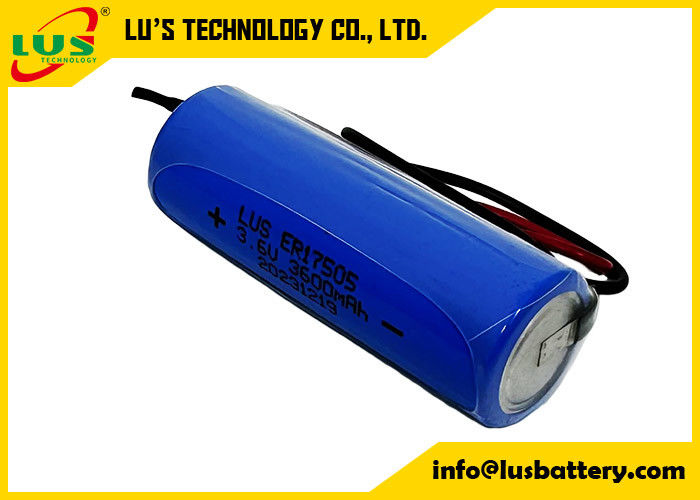

3600mAh Battery ER17505 Primary Lithium Cell Battery A size 3.6V Li-SOCl2 battery with OEM terminals
ER17505 A size 3.6V 3600mAh High Capacity Lithium Thionyl Chloride Battery - Bobbin Type
Long shelf life: self discharge rate less than 1% at 25°C.
Substitute or cross refer to the battery part no. ER17505 battery. Maxell ER17500 battery. Omnicel ER17505 battery. Saft LS17500 battery.
ER17505 lithium battery
| Name | Lithium Thionyl Chloride Battery |
| Model | ER17505 |
| Size | A |
| Nominal capacity (3mA~2V) | 3.6 Ah |
| Rated voltage | 3.6 V |
| Max constant current of discharge | 120 mA |
| Max discharge current(pulse) | 200 mA |
| Weight | 25 g |
| Operating temperature range | -55℃~+85℃ |
| Storage temperature (recommended) | +30℃ |
Application:
1)With high-operating voltage and stable
2)Performance independent from cell orientation
3)Superior shelf lifespan and reliability: over 10 years at room temperature and self-discharge rate <1% of nominal capacity per year
4)Bobbin structure energy type and best suited for low and discharge current
5)May require depassivation before medium currents
6)Typical values relative to cells stored for one year or less at 30°C
7)Adding the spot, welding wire, welding plug, label are OK
Lithium Battery 3.6v:
| Model | voltage (v) | capacity(mAh) | demension(mm) | Nominal Discharge Current(mA) | weight (g) | |
| Diameter | Height | |||||
| ER10250 | 3.6 | 400 | 10.5 | 25 | 0.5 | 5 |
| ER10280 | 3.6 | 450 | 10.5 | 28 | 0.5 | 6 |
| ER10450 | 3.6 | 700 | 10.5 | 45 | 1 | 8 |
| ER14250 | 3.6 | 1200 | 14.5 | 25.4 | 1 | 10 |
| ER14335 | 3.6 | 1600 | 14.5 | 33.5 | 1 | 12 |
| ER14505 | 3.6 | 2400 | 14.5 | 50.5 | 2 | 19 |
| ER17335 | 3.6 | 1800 | 17.5 | 34 | 3 | 18 |
| ER17505 | 3.6 | 3200 | 17.5 | 50.5 | 3 | 26 |
| ER18505 | 3.6 | 3600 | 18.7 | 50.5 | 3 | 28 |
| ER26500 | 3.6 | 9000 | 26.2 | 50 | 4 | 52 |
| ER34320 | 3.6 | 8000 | 34.2 | 32.5 | 4 | 58 |
| ER34615 | 3.6 | 19000 | 34.2 | 61.5 | 5 | 100 |
| ER341245 | 3.6 | 36000 | 34.2 | 124.5 | 10 | 195 |
| ER14250M | 3.6 | 800 | 14.5 | 25.4 | 2 | 10 |
| ER14335M | 3.6 | 1300 | 14.5 | 33.5 | 3 | 13 |
| ER14505M | 3.6 | 2200 | 14.5 | 50.5 | 4 | 19 |
| ER17505M | 3.6 | 2800 | 17.5 | 50.5 | 5 | 27 |
| ER18505M | 3.6 | 3200 | 18.7 | 50.5 | 5 | 28 |
| ER26500M | 3.6 | 6500 | 26.2 | 50 | 10 | 52 |
| ER34615M | 3.6 | 14000 | 34.2 | 61.5 | 15 | 100 |
| ER13150S | 3.6 | 300 | 13.2 | 15 | 0.5 | 6 |
| ER14250S | 3.6 | 750 | 14.5 | 25.2 | 1 | 10 |
| ER14505S | 3.6 | 1600 | 14.5 | 50.5 | 2 | 20 |
| ER26500S | 3.6 | 4100 | 26.2 | 50 | 4 | 60 |
| ER34615S | 3.6 | 10500 | 34.2 | 61.5 | 5 | 106 |
| ER2450 | 3.6 | 500 | 24.5 | 5.9 | 1 | 9 |
| ER32100 | 3.6 | 1700 | 32.9 | 10 | 1 | 25 |
| ER3265 | 3.6 | 1000 | 32.9 | 6.5 | 1 | 17 |
| ER9V | 10.8 | 1200 | 17*26.3*48.5 | 1 | 30 | |
| EF651615 | 3.6 | 400 | 16.8*15.8*6.8 | 1 | 5 | |
| EF651625 | 3.6 | 750 | 16.8*25.8*6.8 | 1 | 8 | |
| Remark: 1)"M"-Power Type; 2)"S"-High Temperature; | ||||||
