Place of Origin:
China
Brand Name:
OEM
Certification:
Meet UL
Model Number:
CP255050 thin batteries
Video
Video

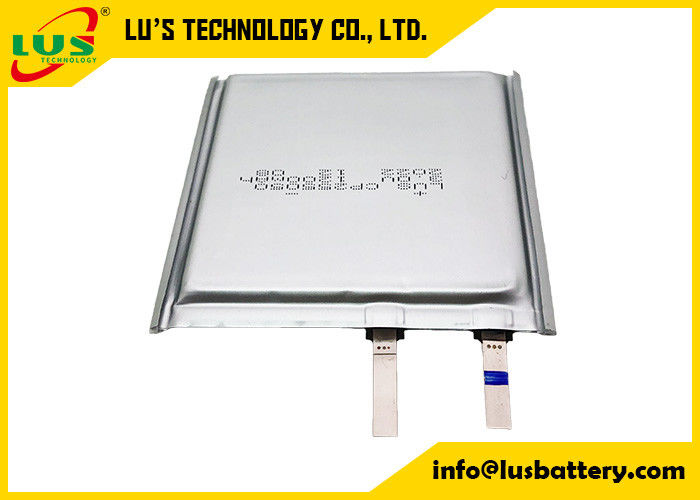

CP255050 3.0V 1200mah flexible soft package flat ultra thin battery for electronic lock battery CP255050 doorbell lithium battery CP255050 3.0V 1250mAh thin film lithium battery for medical devices
Electrical characteristics
1. Nominal capacity: 1250mAh ;
2. Nominal voltage: 3.0V;
3. Max constant discharge current: 300mA ;
4. Max pulse current: 600mA;
5. Operating temperature range: - 20°C~+ 60°C ;
6. Max dimension: 2.5*50*50mm ;
Ultra thin Batteries are safe and light weight primary Lithium batteries.
These thin batteries use same chemistry as CR series coin cells but is packed in a soft polymer foil package same as used in Lithium Polymer batteries.
These Ultra Thin Cells have a operating voltage of 3.0V and comes in the range of 15mAh to 10000mAh capacity.
| Name | LimnO2 Battery ultra thin cell |
| Model | CP255050 |
| Voltage | 3.0V |
| Capacity | 1200mah |
| Dimension | 2.6*51*50.5mm |
| Temperature | -40 to +70 |
| Weight | 9.5 g |
| Max contiuned current | 300mA |
| Max plus current | 500mA |
| Terminals | Can be customized |
| OEM and ODM | Welcome |
Application Field:
RFID BATTERY / ID card battery / Payment system battery etc
a. Civilian field: AMR of common instruments and CMOS circuit boards
b. Various smart meters: smart electric meters, water meters, heat meters and gas meters
c. Memories and standby power supplies: memory backup, clock power supplies and data backup power supplies
d. Radio alarm equipment/sensors: smoke alarms and temperature monitors
e. Remote monitoring systems: positioning devices and marine telemetry systems
f. Automotive electronics: tire pressure monitoring systems
g. Industrial field: automation instrumentations and equipment, oil wells, mines, medical equipment, burglar alarm, wireless communication, sea survival, etc.
h. Modern national defense and military fields: aviation, spaceflight, marine electronics, air-sea-land weapons, etc.
| Flexible limno2 battery list | |||||||
| Model | Max. dimensions (mm) | Weight (g) |
Rated voltage(v) | Rated Capacity (mAh) |
Standard Discharge Current (mA) |
Max.Current (mA) | |
| Continuous | Pulse | ||||||
| CP042922 | 0.45*29*22 | 0.4 | 3.0 | 15 | 0.5 | 10 | 20 |
| CP042345 | 0.45*23*45 | 0.8 | 3.0 | 30 | 0.5 | 20 | 35 |
| CP0453730 | 0.48*37*30 | 0.8 | 3.0 | 35 | 0.5 | 15 | 30 |
| CP104848 | 1.2*49*49 | 3.8 | 3.0 | 350 | 1.0 | 50 | 100 |
| CP142828 | 1.5*29*29 | 1.5 | 3.0 | 100 | 1.0 | 15 | 30 |
| CP144920 | 1.4*49*20 | 1.5 | 3.0 | 150 | 1.0 | 20 | 40 |
| CP153030 | 1.6*31*31 | 1.8 | 3.0 | 120 | 1.0 | 50 | 100 |
| CP155050 | 1.6*51*51 | 6.0 | 3.0 | 650 | 5.0 | 500 | 1000 |
| CP2012120 | 2.0*12*125 | 5.5 | 3.0 | 400 | 1.0 | 100 | 200 |
| CP202850 | 2.2*28.5*50 | 3.6 | 3.0 | 380 | 1.0 | 100 | 200 |
| CP224035 | 2.4*41*36 | 4.8 | 3.0 | 580 | 1.0 | 150 | 300 |
| CP223045 | 2.4*31*46 | 4.2 | 3.0 | 480 | 1.0 | 150 | 300 |
| CP224147 | 2.3*45*49 | 7.0 | 3.0 | 800 | 1.0 | 500 | 1200 |
| CP265045 | 2.8*51*46 | 9.0 | 3.0 | 1200 | 1.0 | 300 | 500 |
| CP264558 | 2.8*46*59 | 9.5 | 3.0 | 1250 | 5.0 | 300 | 500 |
| CP305050 | 3.2*51*51 | 12.5 | 3.0 | 1600 | 5.0 | 600 | 1000 |
| CP401720 | 4.2*18*21 | 2.0 | 3.0 | 220 | 1.0 | 50 | 120 |
| CP401922 | 4.2*20*23 | 2.6 | 3.0 | 300 | 1.0 | 100 | 150 |
| CP405050 | 4.2*51*51 | 17.0 | 3.0 | 2400 | 5.0 | 1000 | 1500 |
| CP451728 | 4.5*18*29 | 3.2 | 3.0 | 380 | 1.0 | 120 | 200 |
| CP502525 | 5.2*26*26 | 4.5 | 3.0 | 600 | 5.0 | 200 | 300 |
| CP502440 | 5.2*25*42 | 8.5 | 3.0 | 1200 | 1.0 | 400 | 800 |
| CP503742 | 5.2*38*43 | 13.0 | 3.0 | 1900 | 5.0 | 800 | 1200 |
| CP504644 | 5.2*47*45 | 17.0 | 3.0 | 2500 | 5.0 | 1200 | 2000 |
| CP505050 | 5.2*51*51 | 22.0 | 3.0 | 3000 | 10.0 | 1500 | 2000 |
| CP602026 | 6.2*21*27 | 4.5 | 3.0 | 550 | 1.0 | 200 | 300 |
| CP701725 | 7.2*18*26 | 4.5 | 3.0 | 520 | 1.0 | 150 | 300 |
| CP783970 | 7.8*39*70 | 36.5 | 3.0 | 5500 | 10.0 | 3000 | 5000 |
| CP7839109 | 7.8*39*109 | 63.0 | 3.0 | 10000 | 10.0 | 3000 | 5000 |
| CP802060 | 8.0*20*60 | 15.5 | 3.0 | 2100 | 10.0 | 2000 | 3000 |
| CP952434 | 9.7*25*35 | 11.5 | 3.0 | 1700 | 5.0 | 500 | 800 |
| CP1003742 | 10.2*38*43 | 26.0 | 3.0 | 3900 | 5.0 | 1200 | 2000 |
| CP9V | 17.5*26.5*48.8 | 30.0 | 9.0 | 1200 | 1.0 | 400 | 800 |
| CR123A | 17*34.5 | 17.0 | 3.0 | 1400 | 1.0 | 1500 | 3000 |
| CR2 | 15.5*27 | 11.0 | 3.0 | 800 | 10.0 | 1000 | 2000 |
| CR-P2 | 19.5*34.5 | 37.0 | 6.0 | 1400 | 10.0 | 2000 | 3000 |
| If you can't find the model on list please feel free to contact us for more information. Any special size can be customized. E-mail: cindy@lusbattery.com | |||||||
We can make Li-MnO2 soft battery as thin as 0.4-0.6mm, which is perfect for smart card, security card, RFID ,ETC and more applications.
NO MOQ with fast lead time.
Welcome for any customized.
Thanks.
Main points of flexible packaging lithium manganese battery
Flexible package structure design, special negative electrode structure design, self sealing diaphragm: improve battery safety;
Special raw material pretreatment: improve battery storage and comprehensive performance;
Continuous coating technology: improve battery performance, consistency and reliability;
Special electrolyte formula: improve battery environment, adaptability and storage performance;
HRL coating technology: improve battery safety performance and storage performance;
Battery integrated design technology: to ensure the highest safety performance of batteries, comprehensive design of the performance;
Large capacity flexible packaging lithium manganese battery technology: improve battery composition, group consistency;
Hybrid battery technology: both high specific energy and high pulse current performance.
Production Fearture:
