Place of Origin:
China
Brand Name:
OEM
Model Number:
ER26500
Model: ER26500 Primary lithium batteries Li-SOCl Energy type C size with terminals
Technical data:
| Name | Disposable battery | lithium battery |
| Model | ER26500 | ER26500M |
| Size | C | C |
| Nominal capacity (3mA~2V) | 9Ah | 6500mah |
| Rated voltage | 3.6 V | 3.6v |
| Max constant current of discharge | 130 mA | 1000mA |
| Max discharge current(pulse) | 400 mA | 2000mA |
| Weight | 53 g | 53 g |
| Operating temperature range | -55~+85℃ | -55~+85℃ |
Characteristics:
1. High energy density (620Wh/Kg); which is the highest among all lithium batteries.
2. High open circuit voltage (3.66V for single cell), high operating voltage (varying with load, normally ranging from 3.3V to 3.6V).
3. Wide range of operating temperature(-55C~+85C).
4. Stable voltage and current, over 90% of the cell capacity is discharged at high plateau voltage.
5. Long operating time (over 8 years) for continuous low current discharge with medium current pulses.
6. Low self-discharge rate (less than 1% per year) and long storage life (over 10 year under normal room temperature).
Application:
Lisocl2 product list
| International Model Size | Model Number | Max Dimension | Weight | Nominal | End Voltage | Nominal Capacity | Max Continuous Operating Current | Max Pulse Discharge Current |
| mm | g | Voltage | V | mAh | mA | mA | ||
| AAA | ER10450 | φ10.4X45.3 | 8 | 3.6 | 2 | 600(1mA) | 25 | 60 |
| ER11120 | φ11.5X12.0 | 2 | 3.6 | 2 | 100(0.2mA) | 2 | 4 | |
| ER13150 | φ13.5X15.0 | 6 | 3.6 | 2 | 450(0.5mA) | 10 | 30 | |
| L31 | ER13460 | φ13.5X46.0 | 14 | 3.6 | 2 | 1500(1mA) | 60 | 100 |
| 1/2AA | ER14250 | φ14.5X25.0 | 10 | 3.6 | 2 | 1200(0.5mA) | 20 | 45 |
| 2/3AA | ER14335 | φ14.5X33.5 | 13 | 3.6 | 2 | 1650(1.3mA) | 75 | 150 |
| AA | ER14505 | φ14.5X50.5 | 22 | 3.6 | 2 | 2400(2mA) | 100 | 200 |
| 2/3A | ER17335 | φ17.0X33.5 | 21 | 3.6 | 2 | 2100(2mA) | 100 | 200 |
| ER17505 | φ17.0X50.5 | 25 | 3.6 | 2 | 3400(4mA) | 120 | 200 | |
| A | ER18505 | φ18.8X50.5 | 30 | 3.6 | 2 | 4000(2mA) | 120 | 200 |
| C | ER26500 | φ26.2X50.0 | 53 | 3.6 | 2 | 8500(3mA) | 130 | 300 |
| D | ER34615 | φ34.0X61.5 | 108 | 3.6 | 2 | 19000(2mA) | 200 | 400 |
| International Model Size | Model Number | Max Dimension | Weight | Nominal | End Voltage | Nominal Capacity | Max Continuous Operating Current | Max Pulse Discharge Current |
| mm | g | Voltage | V | mAh | mA | mA | ||
| 1/2AA | ER14250M | φ14.5X25.2 | 10 | 3.6 | 2 | 750(4mA) | 120 | 250 |
| 2/3AA | ER14335M | φ14.5X33.5 | 13 | 3.6 | 2 | 1200(4mA) | 300 | 500 |
| AA | ER14505M | φ14.5X50.5 | 22 | 3.6 | 2 | 1800(10mA) | 500 | 1000 |
| 2/3A | ER17335M | φ17.0X33.5 | 21 | 3.6 | 2 | 1700(5mA) | 500 | 1000 |
| A | ER18505M | φ18.8X50.5 | 30 | 3.6 | 2 | 3200(10mA) | 800 | 1500 |
| C | ER26500M | φ26.2X50.0 | 53 | 3.6 | 2 | 6500(10mA) | 1000 | 2000 |
| D | ER34615M | φ34.0X61.5 | 108 | 3.6 | 2 | 14000(10mA) | 2000 | 3000 |
| Application:Utility Metering, Automatic Meter Reading, Medical Electronics, Memory Backup, Tracking Systems, Law Enforcement (RFID), Earthquake Detectors, Digital Control Devices, Remote Monitory Systems, Electronic Toll Tags, Scientific Instruments, Portable Communication Equipment, Military Radio Stations, and other electric powered devices requiring small size, high power batteries. | ||||||||
Drawing:
S: Standard termination
Notes:
Dimension: mm
Special terminations can be Made as requested.
T: Solder tabs
P: Axial pins
Important Notes:
Do not short or charge the battery.
Over-discharging, crushing, incinerating, and disassembling the battery are prohibited.
Do not heat/use the battery beyond the permitted temperature range.

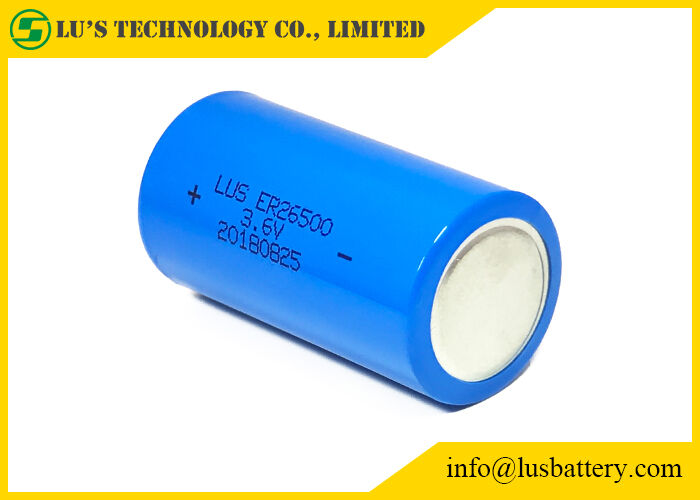

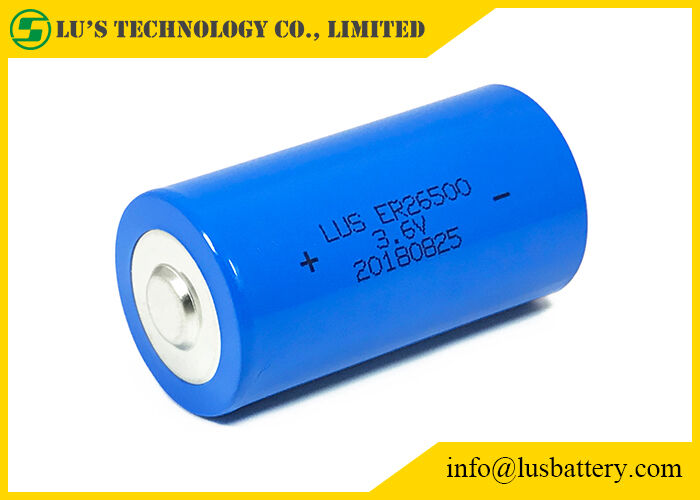

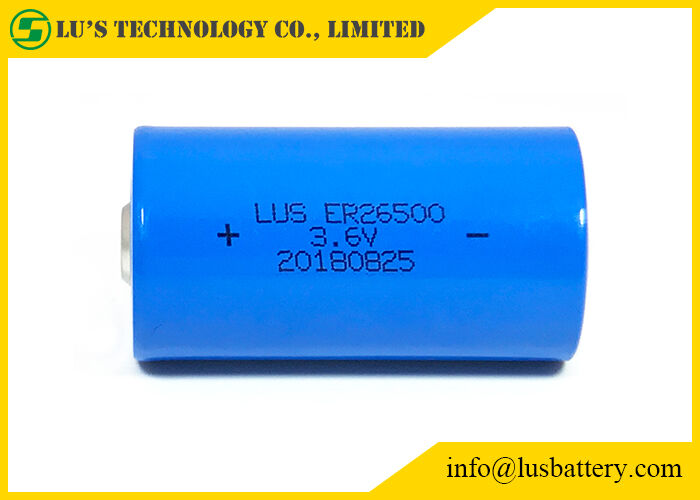

Product Picture:
1.Could you tell me your main product?
Re:Our main production is LiMnO2 flexible battery(ultra thin cell), LiSoCl2 battery and Rechargable battery.
2.What is your MOQ?
Re: For available items NO MOQ
For OEM designs MOQ is 500 pcs per item
3.Could we do our logo customized ?
Re:Yes,we could do your printing and also accept original design service.
4.What is sample Date?
Re: we will send out within 1 week after details confirmation.
5.What is the Order Deliver Date?
Re: For available items in our stock is 3-5 days is ok.
For OEM designs need 15-25 days
6.Could you tell me your payment item?
Payment Item:
1: T/T, credit card / Visa / Mastercard / Alipay
2: 30% deposit advance,70% balance paid before ship out.
7.What is your After-sell service.
Re: When you find the product are damaged ,pls take photos and send to the salesman you are talking with. We will handle this and give you a satisfied solution method.
8.Can we set order by alibaba online?
Re: Of course you can and we strongly support our customer to set orders on line. No matter you set order online or off-line, you get the quality guarantee by our company.
9.Could we visit you factory before setting orders.
Re: Yes. You can visit our factory when you are convenience. We are sure that you will trust us after your visiting. We will pick you up if you need.
