Battery 9V 1200mAh primary lithium battery 9v thin cell

Battery 9V 1200mAh primary lithium battery 9v thin cell
Battery 9V 1200mAh primary lithium battery 9v thin cell

Large Image :  Battery 9V 1200mAh primary lithium battery 9v thin cell

Product Details:
Place of Origin: China
Brand Name: OEM
Model Number: 9V
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: Bargain
Packaging Details: cartons
Delivery Time: 7-10 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000pcs/days

Battery 9V 1200mAh primary lithium battery 9v thin cell

Model: 9v 1200mah Discharge Cut-off Voltage: 5.4 V
Cell Weight: Approx: 32 G Length: 49.0mm
Width: 27.5 Mm Thickness: 17.5 Mm
High Light:

9v 1200mah battery


non rechargeable battery

Model: CR9V 3V lithium manganese battery 9V 1200mAh


Assembly Way:


Three cells in series in aluminum case  3S1P



Type Disposable battery Non rechargeable battery
Name Lithium Manganese Dioxide Battery Limno2 battery
Model CR9V CP9V
Capacity 1200mah Single cell
Max. Discharge Current 300mA

At 23±2℃,battery discharge duration for 3

seconds and stand 27 seconds, it can discharge at least the max pulse discharge value which rated capacity 50% can permit

Discharge Cut-off


5.4 V
Operating Temperature -20℃~ +60℃ Exceed the operating temperature range could lead to battery operating voltage reduction or even a security risk.
storage temperature -5 ℃~+35℃ 9.15V~9.75V
Storage life 10 years

Relative humidity


-5 ℃~+35℃

Cell Weight Approx: 32 g
Self Discharge Rate 2% Out of the recommended condition, the self-discharge rate 2% may increase.
Assemblage Dimension Length:49.0mm Max Width:27.5 mm Max Thickness:17.5 mm Max

Measured weight of 300gf at 25 ℃ ± 1

℃.Not including battery connecting wire.



Tab connection


1 Ultrasonic welding or spot welding is recommended to connect the battery with the PCM or


other parts.


2 If the tab is to be soldered to the PCM, the instructions below are very important to ensure


battery performance.


a) The solder iron should be temperature controlled and ESD safe.


b) Soldering temperature should not exceed 350±10℃.


c) Soldering time should not be longer than 3 seconds.


d) Soldering times should not be fewer than 5.


e) Let the battery tab cool down before soldering again.


f) Direct heat to the cell body is strictly prohibited. The battery will be damaged by heat above


approx. 60ºC.


Cell fixing


1 The cell should be fixed to the battery pack by its large surface area.


2 There should be no sharp edges at the assembly contact area.


3 Cells must be held firmly in the battery pack; movement is not allowed.


4 The total thickness (the cell thickness plus the thickness of auxiliary materials,e.g. sponge


pad, insulate pad, tape and so on) can't exceed the interior room of the plastic case, in order


to prevent the cell from the damage and safe issue.


Safety Test







Testing Conditions and Method












A battery is short-circuited for 1 hour at





No explosion, no fire




Heat shock


The cell is placed in a thermal chamber. Temperature is raised to 130±2ºC at the rate

of (5±2ºC)/min and held for 10 minutes, then cooled to room temperature at the rate of




No explosion, no fire







Humidity and heat test

A battery is placed in a box for 48 hours where the temperature is 40ºC±2ºC and the

relative humidity is 90%~95%





No explosion, no fire

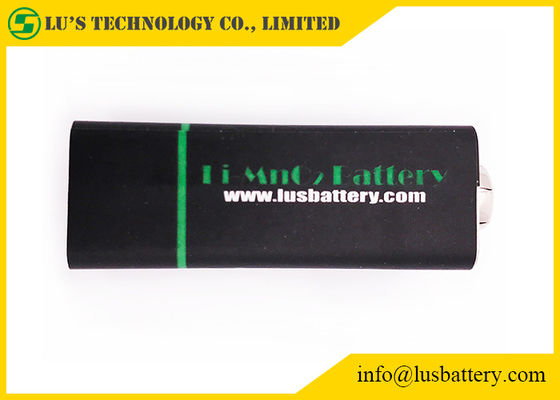

 Product Picture:


Battery 9V 1200mAh primary lithium battery 9v thin cell 0


Battery 9V 1200mAh primary lithium battery 9v thin cell 1
