Place of Origin:
China
Brand Name:
OEM
Model Number:
C9VP 1200mAh
Video
Video
Model:CR9V 1200mAh Square lithium manganese battery
| Type | Disposable battery | Non rechargeable battery |
| Name | Lithium Manganese Dioxide Battery | Limno2 battery |
| Model | CR9V | CP9V |
| Capacity | 1200mah | Single cell |
| Max. Discharge Current | 300mA |
At 23±2℃,battery discharge duration for 3 seconds and stand 27 seconds, it can discharge at least the max pulse discharge value which rated capacity 50% can permit |
|
Discharge Cut-off Voltage |
5.4 V | |
| Operating Temperature | -20℃~ +60℃ | Exceed the operating temperature range could lead to battery operating voltage reduction or even a security risk. |
| storage temperature | -5 ℃~+35℃ | 9.15V~9.75V |
| Storage life | 10 years |
Relative humidity Temperature -5 ℃~+35℃ |
| Cell Weight | Approx: 32 g | |
| Self Discharge Rate | 2% | Out of the recommended condition, the self-discharge rate 2% may increase. |
| Assemblage Dimension | Length:49.0mm Max Width:27.5 mm Max Thickness:17.5 mm Max |
Measured weight of 300gf at 25 ℃ ± 1 ℃.Not including battery connecting wire. |
Discharging Current:
The cell shall be discharged at less than the maximum discharge current specified in the
Specification Approval Sheet. A high discharging current may reduce the discharge capacity
significantly or cause overheating.
Discharging Temperature
The Discharging Temperature must be within the range specified in this Specification
Approval Sheet.
Over-Discharge
Over-discharging will cause cell degradation and functional losses. The cell can degrade into
an over-discharge state through self discharging. In order to prevent over-discharging, the cell
should be charged periodically to retain between 3.05V and 3.25V.
Storage
Cells should be stored at the proper temperature that is identified in the Specification
Approval Sheet.
Recommended Notice:
1 Using cells on specified facilities only.
2 Using cells in normal ambition temperature. Temperature: -10～35℃,Relative Humidity:
45~75%.
3 Using the cells, away from heat source. Don’t let children play with cells.
4 Avoid the positive pole shortcutting with the negative one. Avoid the cells affected with damp.
5 Useless cells should be deal with in a safety way. Don’t drop them into the water or fire.
Others
1 Disassembly may cause an internal short circuit to the cell, which may cause out-gassing, fire, or other problems.
2 LIP battery should not have liquid flowing, but in case the electrolyte come into contact with the skin, or eyes, physicians, we recommend as below:
a. The electrolyte touch eyes: Flush the electrolyte immediately with fresh water for
15min. and medical advice is to be sought.
b. The electrolyte touch skin: Flush the electrolyte immediately with a great deal of fresh water.
c. Breath the released gas: Go outside to breath flash air. d. Mis-eaten: Go to take some medical advice.
3 Prohibition of dumping of cells into fire
Never incinerate or dispose the cells in fire, for these may cause firing of the cells.
4 The cells should never be soaked with liquids such as water, drinks or oil.
5 Prohibit using the cells mixed with different manufactories. Prohibit using new cells mixed with old ones.
6 Prohibit using damaged cells.

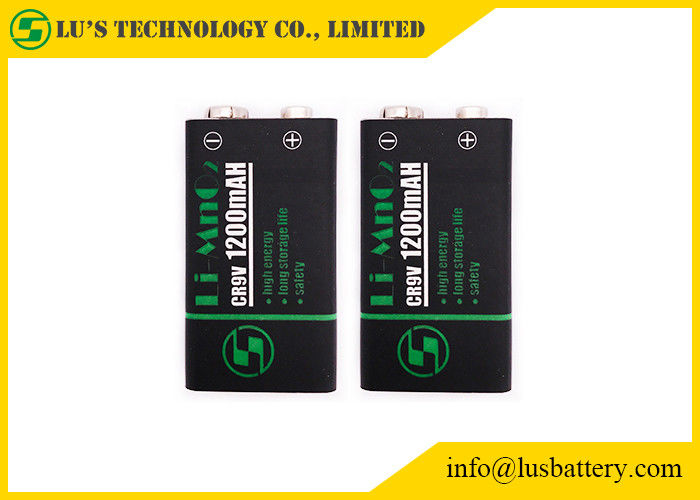

Product Pictrue:
Drawing:
