Place of Origin:
China
Brand Name:
OEM
Certification:
Meet UL
Model Number:
CP1005050

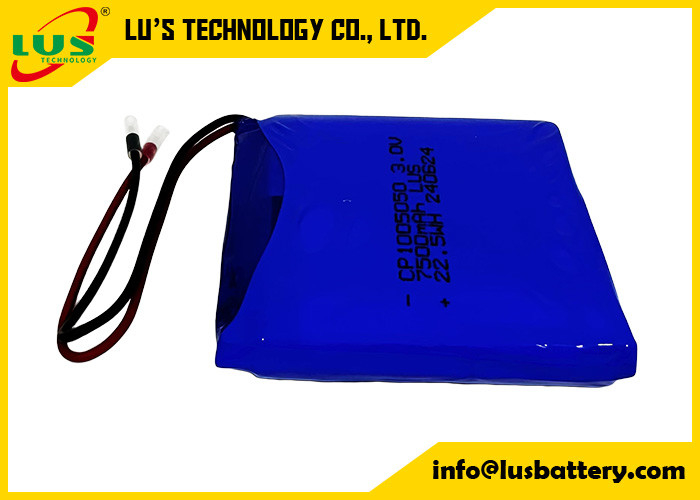

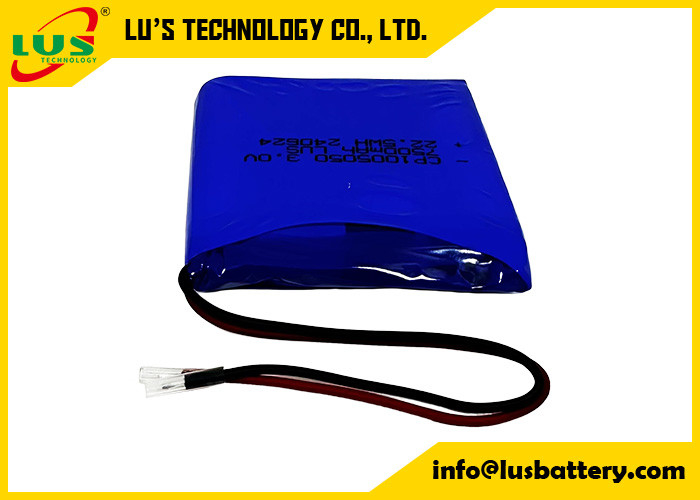

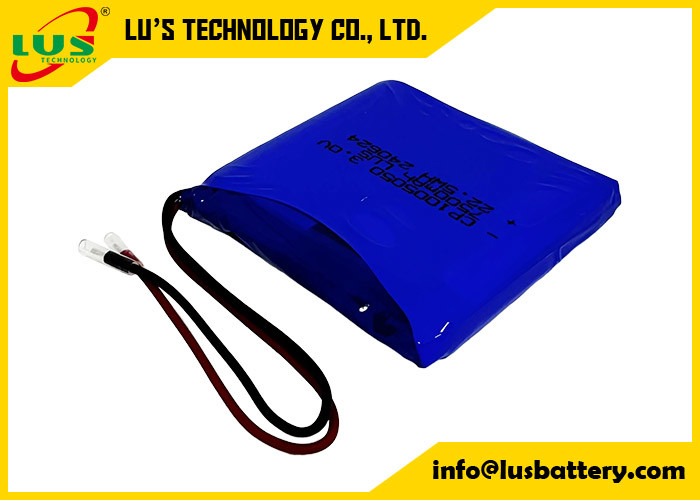

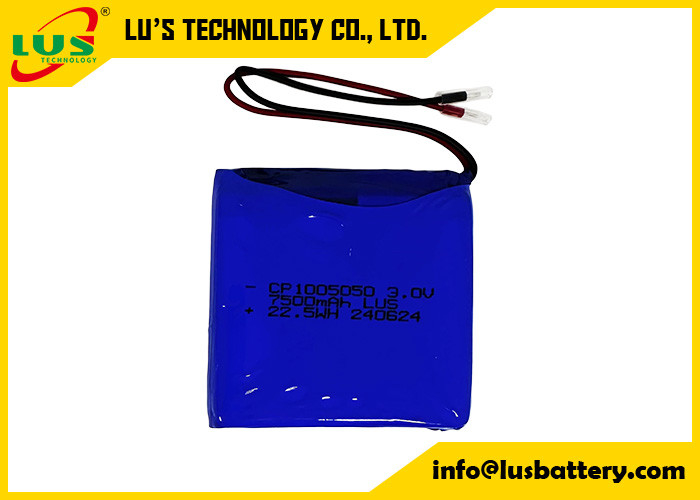

Name | Li-MnO2 Battery ultra thin cell |
Model | CP1005050 |
Voltage | 3.0V |
Capacity | 6000mah |
Dimension | Max.10.2*51*51mm |
Temperature | -40 to +70 |
Weight | 44g |
Max.Continuous Current (mA) | 3000mA |
Max.Pulse Current (mA) | 4000mA |
Terminals | Can be customized |
OEM and ODM | Welcome |
Application Field:
We can make Li-MnO2 soft battery as thin as 0.4-0.6mm, which is perfect for smart card, security card, RFID ,ETC,Tags and modre applications.
NO MOQ with fast lead time.
Welcome for any customized.
Thanks.
Work Shop:
Model Size | Nominal Voltage | Nominal Capacity | Max Continuous Discharge Current | Max Pulse Discharge Current | Dimension | ||
T(mm) | W(mm) | H(mm) | |||||
CP042345 | 3V | 35mAh | 2mA | 4mA | 0.45 | 23±0.5 | 45±0.5 |
CP042529 | 3V | 22mAh | 2mA | 4mA | 0.45 | 25±0.5 | 29±0.5 |
CP042722 | 3V | 15 mAh | 1mA | 2mA | 0.45 | 27±0.5 | 22±0.5 |
CP042922 | 3V | 15mAh | 1mA | 2mA | 0.41 | 29 | 23 |
CP044040 | 3V | 50mAh | 5mA | 10mA | 0.45 | 40 | 40±0.5 |
CP044560 | 3V | 100mAh | 10mA | 20mA | 0.45 | 45.5 | 60 |
CP052039 | 3V | 25 mAh | 2 mA | 4 mA | 0.5 | 20 | 39 |
CP052722 | 3V | 22mAh | 1mA | 2mA | 0.5 | 27 | 22 |
CP053050 | 3V | 80mAh | 15mA | 30mA | 0.5 | 30 | 50 |
CP054248 | 3V | 100mAh | 20mA | 40mA | 0.5 | 48.5±0.5 | 48.5±0.5 |
CP064348 | 3V | 200mAh | 20mA | 50mA | 0.6 | 48.5±0.5 | 48.5±0.5 |
CP073545 | 3V | 160mAh | 10mA | 20mA | 0.7 | 35 | 45 |
CP082922 | 3V | 50 mAh | 20mA | 80mA | 0.8 | 29 | 22 |
CP084248 | 3V | 320mAh | 20mA | 50mA | 0.8 | 48.5±0.5 | 48.5±0.5 |
CP102015 | 3V | 30mAh | 2mA | 5mA | 1 | 20±0.5 | 15±0.5 |
CP104248 | 3V | 420mAh | 100mA | 200mA | 1.05 | 49 | 49 |
CP105050 | 3V | 420mAh | 100mA | 200mA | 1.05 | 50 | 50 |
CP105075 | 3V | 450mAh | 200mA | 300mA | 1.05 | 45.2 | 75 |
CP105256 | 3V | 500mAh | 30mA | 50mA | 1.05 | 52 | 56 |
CP124444 | 3V | 420 mAh | 75 mA | 150mA | 1.2 | 44 | 44 |
CP142828 | 3V | 160mAh | 25mA | 50mA | 1.4 | 28±1.0 | 28±1.0 |
CP142828H | 3V | 140mAh | 50mA | 100mA | 1.4 | 28±1.0 | 28±1.0 |
CP151220 | 3V | 35mAh | 5mA | 10mA | 1.5 | 12±0.5 | 20±0.5 |
CP153030 | 3V | 170mAh | 40mA | 80mA | 1.5 | 30 | 30 |
CP153030H | 3V | 140mAh | 50mA | 100mA | 1.5 | 30 | 30 |
CP154580 | 3V | 1000mAh | 150mA | 300mA | 1.5 | 45±0.5 | 80 |
CP151015 | 3V | 18mAh | 0.5mA | 1mA | 1.5 | 10±0.5 | 15±0.5 |
CP161220H | 3V | 20mAh | 16mA | 30mA | 1.6 | 12±0.5 | 20±0.5 |
CP161230H | 3V | 45mAh | 16mA | 30mA | 1.6 | 12±0.5 | 30±0.5 |
CP162235 | 3V | 160mAh | 30mA | 50mA | 1.6 | 22 | 35 |
CP164548 | 3V | 700mAh | 50mA | 100mA | 1.6 | 45.5 | 48.5 |
CP171234 | 3V | 140mAh | 20mA | 50mA | 3.6 | 35 | 13.5 |
CP181234 | 3V | 125mAh | 25mA | 50mA | 1.8 | 12±0.5 | 34 |
CP183123 | 3V | 150mAh | 45mA | 75mA | 1.8 | ||
CP201335 | 3V | 120mAh | 25mA | 50mA | 2 | 10 | 35 |
CP201535 | 3V | 120mAh | 30mA | 60mA | 1.9 | 14 | 35 |
CP202128 | 3V | 130mAh | 20mA | 40mA | 2 | 21±0.5 | 28±0.5 |
CP202540 | 3V | 350mAh | 75mA | 150mA | 2 | 25±0.5 | 40±0.5 |
CP202721 | 3V | 140mAh | 40mA | 80mA | 2 | 27±0.5 | 21±0.5 |
CP203030 | 3V | 230mAh | 50mA | 100mA | 2 | 30 | 30 |
CP203034 | 3V | 275 mAh | 50 mA | 100mA | 2 | 30 | 34 |
CP203040 | 3V | 210mAh/380MAH | 100mA | 200mA | 2 | 30±0.5 | 40±0.5 |
CP203242 | 3V | 375mAh | 75mA | 150mA | 2.1 | 32 | 42 |
CP204517 | 3V | 210mAh | 20mA | 50mA | 2 | 45±0.5 | 17±0.5 |
CP204547 | 3V | 750mAh | 50mA | 100mA | 2 | 45±0.5 | 47±0.5 |
CP222920 | 3V | 150mAh | 45mA | 75mA | 2.2 | ||
CP224248 | 3V | 850mAh | 100mA | 200mA | 2.2 | 45±0.5 | 48.5±0.5 |
CP225050 | 3V | 1000mAh | 200mA | 400mA | 2.2 | 50 | 50 |
CP225080 | 3V | 1700mAh | 200mA | 400mA | 2.2 | 50 | 80 |
CP242030 | 3V | 230mAh | 50mA | 100mA | 2.4 | 20±0.5 | 30±0.5 |
CP255050 | 3V | 1200mAh | 150mA | 300mA | 2.5 | 50 | 50 |
CP251525 | 3V | 150mAh | 40mA | 80mA | 2.5 | 15±0.5 | 25±0.5 |
CP251626 | 3V | 150mAh | 60mA | 150mA | 2.5 | 16±0.5 | 26.5±0.5 |
CP252525 | 3V | 250mAh | 30mA | 60mA | 2.5 | 25.5 | 25.5 |
CP255047 | 3V | 1250mAh | 150mA | 300mA | 2.5 | 50 | 47.5±0.5 |
CP255080 | 3V | 2050mAh | 300mA | 600mA | 2.5 | 50 | 80 |
CP301415 | 3V | 85mAh | 30mA | 60mA | 3 | 14±0.5 | 15±0.5 |
CP301919-2S | 6V | 150mAh | 50 mA | 100mA | 6.1 | 19.5 | 19.5 |
CP302525 | 3V | 350mAh | 75 mA | 150 mA | 3 | 25 | 25 |
CP304580 | 3V | 2500mAh | 200mA | 500mA | 3 | 45 | 80 |
CP321626 | 3V | 250mAh | 50mA | 100mA | 6.1 | 19.5 | 19.5 |
CP334728 | 3V | 700mAh | 100mA | 200mA | 3.5 | 47.5 | 28.0±0.5 |
CP352440 | 3V | 750mAh | 100mA | 300mA | 3.5 | 24.5 | 41 |
CP355050 | 3V | 2000mAh | 500mA | 1000mA | 3.5 | 50 | 50 |
CP402020 | 3V | 275mAh | 50mA | 100mA | 4 | 20±0.5 | 20±0.5 |
CP402424H | 3V | 400mAh | 100mA | 300mA | 4 | 24 | 24 |
CP403030 | 3V | 550mAh | 75mA | 150mA | 4 | 30 | 30 |
CP453450 | 3V | 1700mAh | 300mA | 600mA | 4.5 | 33±0.5 | 49±0.5 |
CP501525 | 3V | 350mAh | 80mA | 150mA | 5 | 15±0.5 | 25.5±0.5 |
CP502440 | 3V | 1200mAh | 150mA | 300mA | 5 | 24.5±0.5 | 41 |
CP502540 | 3V | 1200mAh | 150mA | 300mA | 5.2 | 42 | 25.5 |
CP503436 | 3V | 1550mAh | 200mA | 500mA | 5.2 | 34.5 | 36 |
CP503740 | 3V | 1700mAh | 300mA | 600mA | 5 | 37±0.5 | 40±0.5 |
CP503742 | 3V | 1700mAh | 300mA | 600mA | 5 | 37±0.5 | 42±0.5 |
CP505050 | 3V | 3000mAh | 500mA | 1500mA | 5.2 | 50.5±0.5 | 50.5±0.5 |
CP505050-2S | 6V | 3000mAh | 600mA | 1800mA | |||
CP505050-2P | 3V | 6000mAh | 1000mA | 2000mA | 10.3 | 50.5 | 50.5 |
CP543537 | 3V | 1500mAh | 200mA | 400mA | 5.6 | 35.5 | 37 |
CP601919 | 3V | 300mAh | 100mA | 200mA | 6.1 | 19.5 | 19.5 |
CP603450 | 3V | 2400mAh | 500mA | 1000mA | 6.1 | 34±0.5 | 50±0.5 |
CP603956 | 3V | 3300mAh | 800mA | 1500mA | 6.1 | 39±0.5 | 56 |
CP604446-2S | 6V | 3000mAh | 2000mA | 4000mA | 13 | 46 | 44 |
CP603244 | 3V | 2000mAh | 1000mA | 1500mA | 6.2 | 32,5 | 44.5 |
CP702242 | 3V | 1500mAh | 200mA | 1200mA | 7 | 22 | 42 |
CP703028 | 3V | 1000mAh | 200mA | 400mA | 7 | 30 | 28 |
CP703448 | 3V | 2000mAh | 1000mA | 1500mA | 7 | 34 | 48.5 |
CP806468 | 3V | 8000mAh | 2000mA | 4000mA | 7.6 | 64 | 68 |
CP1002045 | 3V | 1800mAh | 900mA | 1500mA | 10.2 | 20.5 | 45.5 |
CP1002440 | 3V | 2400mAh | 400mA | 800mA | 10.2 | 25.5 | 40.5 |
CP1002550 | 3V | 2700mAh | 500mA | 1000mA | 10.2 | 25.5 | 50.5 |
CP4542100 | 3V | 4750mAh | 800mA | 1500mA | 4.5 | 42.5 | 100 |
CP7839109 | 3V | 9000mAh | 2000mA | 3000mA | 7.9 | 39±0.5 | 109 |
CP11568125 | 3V | 28000mAh | 4000mA | 6000mA | 12 | 68.5 | 126 |
CP9V | 9V | 1200mAh | 150mA | 300mA |
