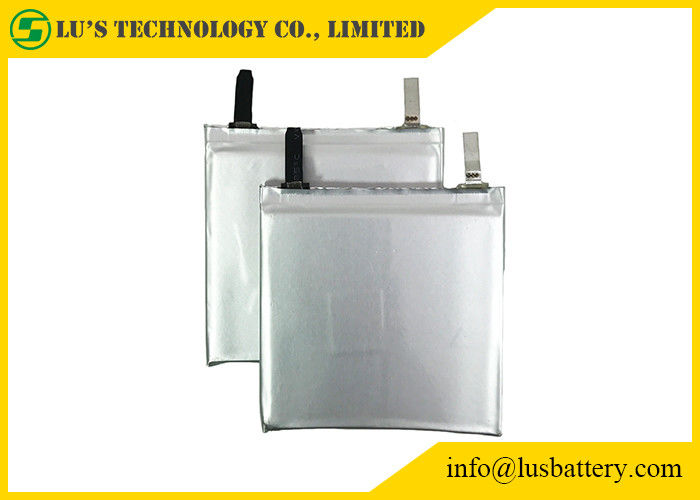

3v 8000mah Ultra Thin Battery 3.0 vlot Soft Pack Battery Cp806468 For IOT solution

3v 8000mah Ultra Thin Battery 3.0 vlot Soft Pack Battery Cp806468 For IOT solution

cylindrical lithium ion battery

primary lithium battery

Place of Origin:

China

Brand Name:

OEM

Model Number:

Cp806468

Contact Us
Request A Quote
Product Details
Capacity:
8Ah
Voltage:
3.0V
Type:
Lithium Primary Battery
Name:
Ultra Thin Cell
Material:
Limno2
Samples:
Available
High Light:

cylindrical lithium ion battery

,

primary lithium battery

Payment & Shipping Terms
Minimum Order Quantity
10pcs
Price
Bargain
Packaging Details
cartons
Delivery Time
7-10 days
Payment Terms
L/C, T/T, Western Union
Supply Ability
50000pcs/Month
Product Description
Data sheets:
Name Li-MnO2 Battery ultra thin battery
Model Cp806468
Voltage 3.0V
Capacity 8000mah
Dimension 7.6*64*68mm
Max Continuous Discharge Current 2000mA
Max Pulse Discharge Current 4000mA
Temperature -40 to +60
Shelf life 10 years
Terminal Can be customized
OEM and ODM Welcome





Main Characteristics:



a. High and stable working voltage



b. Wide operating temperature range



c. Longer storage life and higher reliability



d. High safety and non-pollution

3v 8000mah Ultra Thin Battery 3.0 vlot Soft Pack Battery Cp806468 For IOT solution 0



Application Field:



RFID BATTERY / ID card battery / Payment system battery etc





3v 8000mah Ultra Thin Battery 3.0 vlot Soft Pack Battery Cp806468 For IOT solution 1







LU's Batteries

LiSOCL2 energy type and power type:


ER10250, ER10280,ER10450, ER13150, ER13170, ER14250, ER14335, ER14505, ER17335, ER17505, ER18505, ER20505,ER26500, ER34615, ER341245,ER9V and more ...


LiMnO2 energy type and power type:


CR10250, CR10450, CR14335, CR14505, CR17285, CR17335, CR17450, CR17505, CR10450, CR18505, CR20505, CR26500, CR26600, CR34615, CR123A, CR2,CR9V...


Soft pack LimnO2 battery type:


CP042922 CP042345 CP0453730 CP263638 CP265040 CP092142 CP104848 CP142828 CP153030 CP155050 CP2012120 CP202850

CP224035 CP223045 CP224147 CP265045 CP264558 CP305050

CP401720 CP401922 CP405050 CP451728 CP502525 CP502440

CP503742 CP504644 CP505050 CP602026 CP701725 CP783970

CP7839109 CP802060 CP952434 CP1003742 CP383040 CR9V



LU's battery is an experienced supplier of batteries specialized in the production of Lithium batteries.
Includes LiSOCL2 battery, LiMnO2 battery ,Ultra thin battery and custom-designed battery packs.
We welcome to OEM and ODM orders.Thanks.



Work Shop:

3v 8000mah Ultra Thin Battery 3.0 vlot Soft Pack Battery Cp806468 For IOT solution 2
Ultra slim lithium battery:
Model Size Nominal Voltage Nominal Capacity Max Continuous Discharge Current Max Pulse Discharge Current Dimension
T(mm) W(mm) H(mm)
CP042345 3V 35mAh 2mA 4mA 0.45 23±0.5 45±0.5
CP042529 3V 22mAh 2mA 4mA 0.45 25±0.5 29±0.5
CP042722 3V 15 mAh 1mA 2mA 0.45 27±0.5 22±0.5
CP042922 3V 15mAh 1mA 2mA 0.41 29 23
CP044040 3V 50mAh 5mA 10mA 0.45 40 40±0.5
CP044560 3V 100mAh 10mA 20mA 0.45 45.5 60
CP052039 3V 25 mAh 2 mA 4 mA 0.5 20 39
CP052722 3V 22mAh 1mA 2mA 0.5 27 22
CP053050 3V 80mAh 15mA 30mA 0.5 30 50
CP054248 3V 100mAh 20mA 40mA 0.5 48.5±0.5 48.5±0.5
CP064348 3V 200mAh 20mA 50mA 0.6 48.5±0.5 48.5±0.5
CP073545 3V 160mAh 10mA 20mA 0.7 35 45
CP082922 3V 50 mAh 20mA 80mA 0.8 29 22
CP084248 3V 320mAh 20mA 50mA 0.8 48.5±0.5 48.5±0.5
CP102015 3V 30mAh 2mA 5mA 1 20±0.5 15±0.5
CP104248 3V 420mAh 100mA 200mA 1.05 49 49
CP105050 3V 420mAh 100mA 200mA 1.05 50 50
CP105075 3V 450mAh 200mA 300mA 1.05 45.2 75
CP105256 3V 500mAh 30mA 50mA 1.05 52 56
CP124444 3V 420 mAh 75 mA 150mA 1.2 44 44
CP142828 3V 160mAh 25mA 50mA 1.4 28±1.0 28±1.0
CP142828H 3V 140mAh 50mA 100mA 1.4 28±1.0 28±1.0
CP151220 3V 35mAh 5mA 10mA 1.5 12±0.5 20±0.5
CP153030 3V 170mAh 40mA 80mA 1.5 30 30
CP153030H 3V 140mAh 50mA 100mA 1.5 30 30
CP154580 3V 1000mAh 150mA 300mA 1.5 45±0.5 80
CP151015 3V 18mAh 0.5mA 1mA 1.5 10±0.5 15±0.5
CP161220H 3V 20mAh 16mA 30mA 1.6 12±0.5 20±0.5
CP161230H 3V 45mAh 16mA 30mA 1.6 12±0.5 30±0.5
CP162235 3V 160mAh 30mA 50mA 1.6 22 35
CP164548 3V 700mAh 50mA 100mA 1.6 45.5 48.5
CP171234 3V 140mAh 20mA 50mA 3.6 35 13.5
CP181234 3V 125mAh 25mA 50mA 1.8 12±0.5 34
CP183123 3V 150mAh 45mA 75mA 1.8
CP201335 3V 120mAh 25mA 50mA 2 10 35
CP201535 3V 120mAh 30mA 60mA 1.9 14 35
CP202128 3V 130mAh 20mA 40mA 2 21±0.5 28±0.5
CP202540 3V 350mAh 75mA 150mA 2 25±0.5 40±0.5
CP202721 3V 140mAh 40mA 80mA 2 27±0.5 21±0.5
CP203030 3V 230mAh 50mA 100mA 2 30 30
CP203034 3V 275 mAh 50 mA 100mA 2 30 34
CP203040 3V 210mAh/380MAH 100mA 200mA 2 30±0.5 40±0.5
CP203242 3V 375mAh 75mA 150mA 2.1 32 42
CP204517 3V 210mAh 20mA 50mA 2 45±0.5 17±0.5
CP204547 3V 750mAh 50mA 100mA 2 45±0.5 47±0.5
CP222920 3V 150mAh 45mA 75mA 2.2
CP224248 3V 850mAh 100mA 200mA 2.2 45±0.5 48.5±0.5
CP225050 3V 1000mAh 200mA 400mA 2.2 50 50
CP225080 3V 1700mAh 200mA 400mA 2.2 50 80
CP242030 3V 230mAh 50mA 100mA 2.4 20±0.5 30±0.5
CP255050 3V 1200mAh 150mA 300mA 2.5 50 50
CP251525 3V 150mAh 40mA 80mA 2.5 15±0.5 25±0.5
CP251626 3V 150mAh 60mA 150mA 2.5 16±0.5 26.5±0.5
CP252525 3V 250mAh 30mA 60mA 2.5 25.5 25.5
CP255047 3V 1250mAh 150mA 300mA 2.5 50 47.5±0.5
CP255080 3V 2050mAh 300mA 600mA 2.5 50 80
CP301415 3V 85mAh 30mA 60mA 3 14±0.5 15±0.5
CP301919-2S 6V 150mAh 50 mA 100mA 6.1 19.5 19.5
CP302525 3V 350mAh 75 mA 150 mA 3 25 25
CP304580 3V 2500mAh 200mA 500mA 3 45 80
CP321626 3V 250mAh 50mA 100mA 6.1 19.5 19.5
CP334728 3V 700mAh 100mA 200mA 3.5 47.5 28.0±0.5
CP352440 3V 750mAh 100mA 300mA 3.5 24.5 41
CP355050 3V 2000mAh 500mA 1000mA 3.5 50 50
CP402020 3V 275mAh 50mA 100mA 4 20±0.5 20±0.5
CP402424H 3V 400mAh 100mA 300mA 4 24 24
CP403030 3V 550mAh 75mA 150mA 4 30 30
CP453450 3V 1700mAh 300mA 600mA 4.5 33±0.5 49±0.5
CP501525 3V 350mAh 80mA 150mA 5 15±0.5 25.5±0.5
CP502440 3V 1200mAh 150mA 300mA 5 24.5±0.5 41
CP502540 3V 1200mAh 150mA 300mA 5.2 42 25.5
CP503436 3V 1550mAh 200mA 500mA 5.2 34.5 36
CP503740 3V 1700mAh 300mA 600mA 5 37±0.5 40±0.5
CP503742 3V 1700mAh 300mA 600mA 5 37±0.5 42±0.5
CP505050 3V 3000mAh 500mA 1500mA 5.2 50.5±0.5 50.5±0.5
CP505050-2S 6V 3000mAh 600mA 1800mA
CP505050-2P 3V 6000mAh 1000mA 2000mA 10.3 50.5 50.5
CP543537 3V 1500mAh 200mA 400mA 5.6 35.5 37
CP601919 3V 300mAh 100mA 200mA 6.1 19.5 19.5
CP603450 3V 2400mAh 500mA 1000mA 6.1 34±0.5 50±0.5
CP603956 3V 3300mAh 800mA 1500mA 6.1 39±0.5 56
CP604446-2S 6V 3000mAh 2000mA 4000mA 13 46 44
CP603244 3V 2000mAh 1000mA 1500mA 6.2 32,5 44.5
CP702242 3V 1500mAh 200mA 1200mA 7 22 42
CP703028 3V 1000mAh 200mA 400mA 7 30 28
CP703448 3V 2000mAh 1000mA 1500mA 7 34 48.5
CP806468 3V 8000mAh 2000mA 4000mA 7.6 64 68
CP1002045 3V 1800mAh 900mA 1500mA 10.2 20.5 45.5
CP1002440 3V 2400mAh 400mA 800mA 10.2 25.5 40.5
CP1002550 3V 2700mAh 500mA 1000mA 10.2 25.5 50.5
CP4542100 3V 4750mAh 800mA 1500mA 4.5 42.5 100
CP7839109 3V 9000mAh 2000mA 3000mA 7.9 39±0.5 109
CP11568125 3V 28000mAh 4000mA 6000mA 12 68.5 126
CP9V 9V 1200mAh 150mA 300mA
