Product Details:
|
| Color: | Silver | PCM: | Yes |
|---|---|---|---|
| Rapid Charge: | 1C | Temperature: | -20 To 60 |
| Rapid Discharge: | 1C | Model: | 9660110 |
| High Light: | lithium ion polymer rechargeable battery,lithium ion polymer battery pack |
||
Model:

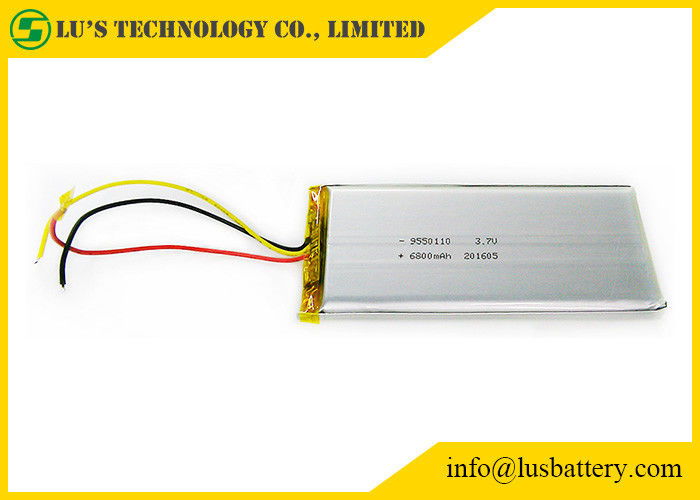

6800mah 3.7V Lithium Polymer Battery LP9550110 LI Ion
Li-Polymer battery LP9550110
3.7V rechargeable batteries LP9550110
Polymer lithium battery LP9550110
LP9550110 Lithium ion battery
Li-ion Polymer Battery LP9550110
| Name | Lipo rechargeable battery |
| Model | LP9550110 |
| Nominal capacity | 6800mah |
| Nominal voltage | 3.7V |
| Voltage at end of Discharge | 2.5V |
| Charging Voltage | 4.2±0.03V |
| Protect | PCM |
| Terminals | Wires |
Major Application:
1) MP3/MP4 player, bluetooth, speakers, car GPS and all possible electronics products
2) Widely applied in Telecommunications, Audio and Video Devices, Information Devices...Etc.
Li-Polymer battery Product Advantages:
1) Environmental friendly
2) High density of energy
3) Light weight
4) Low self-discharge
5) Low internal resistance
6) Long cycle life, chargeable up to 500 or 1000 times
7) No memory effect
8) Doesn’t contain Mercury, No fire, No explosion, No leakage
9) Very good and quick charge, capability can be charged to 90% within 10 min.
10) Thickness can be adjusted while width and height keep the same
Storage and Others
a) Long Time Storage
If the Cell is stored for a long time, the cell’s storage should be 3.6~3.9V and the cell is to be
stored in a condition as specification.
b) Others
Any matters that this specification does not cover should be conferred between the customer
and LUS.
Standard environmental test condition
Unless otherwise specified, all tests stated in this Product Specification are conducted at
below condition:
Temperature:23±3℃
Humidity: 60±15%RH
Barometric:86kpa-106kpa
Battery initial performance inspection: within a week after arrival.
Specifications of cell :
| NO. | Items | Specifications |
| 1 |
Charge voltage
|
4.2V |
| 2 |
Nominal voltage
|
3.7V |
| 3 |
Nominal capacity
|
6800mAh 1C Discharge |
| 4 |
Charge current
|
Standard Charging:: 0.5C Rapid charge: 1.0C |
| 5 |
Standard Charging method
|
0.5C CC(constant current)charge to 4.2V,then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
|
| 6 |
Charging time
|
Standard Charging: 3.0hours(Ref.)
Rapid charge: 2hours(Ref.)
|
Appearance
There shall be no such defect as flaw, crack, rust, leakage, which may adversely affect
commercial value of battery.
Pack :
The sketch, size, color of marking should match GB/T191-2000 requests.
1 Model and specification of product;
2 Quantity;
3 Measure up marking;
4 Make date;
5 Other markings, like color.
9550110 Polymer Lithium Battery 6800mah Li Ion Rechargeable Cell:
