Place of Origin:
China
Brand Name:
OEM
Model Number:
CR123A
Video
Video
Video
Video
Model: CR123A Lithium Manganese Dioxide Battery 3V 1500mah
Descriptions Of CR123A :
| Model | CR123A |
| Voltage | 3V |
| Capacity | 1500mah |
| PVC | Customized |
| Lead time | 7-10 days |
Technical parameters
| No. | Items | Characteristics |
| 1 | Nominal Capacity* | 1500 mAh |
| 2 |
Discharge capacity (continuously discharge under 10mA,till 2.0V end voltage) |
1400±100 mAh |
| 3 | Nominal Voltage | 3V |
| 4 | Operating Temperature range | -40～+85℃ |
| 5 | Max. Pulse Current | 3500 mA |
| 6 | Max. Continuous Discharge Current | 1500 mA |
| 7 | Structures | Manganese dioxide cathode, lithium anode, organic electrolyte, polypropylene separator and stainless steel cell can and cap, etc. |
| 8 | Weight for Reference | About 17g |
Packaging
| Dimension of box | Net weight | Gross weight |
| 406mm×287mm×165mm | 12.3KG | 14.5KG |
Normal package : 720 pcs per box.
Warning:
－Do not place the battery in heater, washer or high-pressure container.
－Do not use the battery together with different kind of or different type of battery.
－Stop using when the battery become heat, emit smell or appear other abnormality during
use, or storing.
－Do not recharge the battery.
－Do not force-discharge the battery.
－Keep away from the battery when the battery is leakage or emit abnormal smell.
－Wash yourself quickly when the electrolyte infiltrate to your skin or clothes.
－Wash your eyes with clean water quickly and go to hospital for further check if the
electrolyte infiltrate to your eyes.
－Please contact with us in advance If two or more batteries are to be connected in a series
and / or placed in a parallel arrangement.
Drawing:
| Model |
Max. diameter Ф1 ( mm ) |
Max. diameter Ф2 ( mm ) |
Max. height H1 ( mm ) |
Min. height H2 ( mm ) |
| CR123A | 17.0 | 6. 5 | 34.5 | 1.0 |

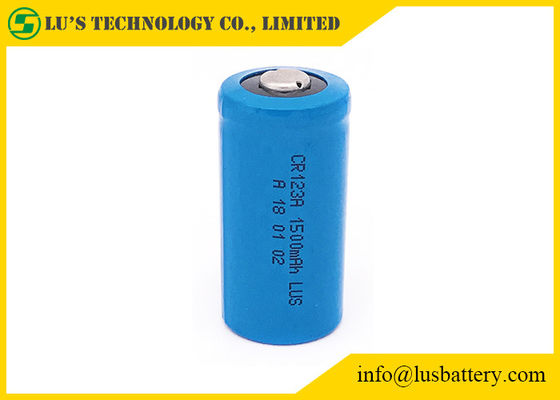

1500mah Primary Lithium Battery CR123A Picture:
