Place of Origin:
China
Brand Name:
OEM
Model Number:
12V600mah
Model:
Nickel Metal Hydride Battery
NIMH battery

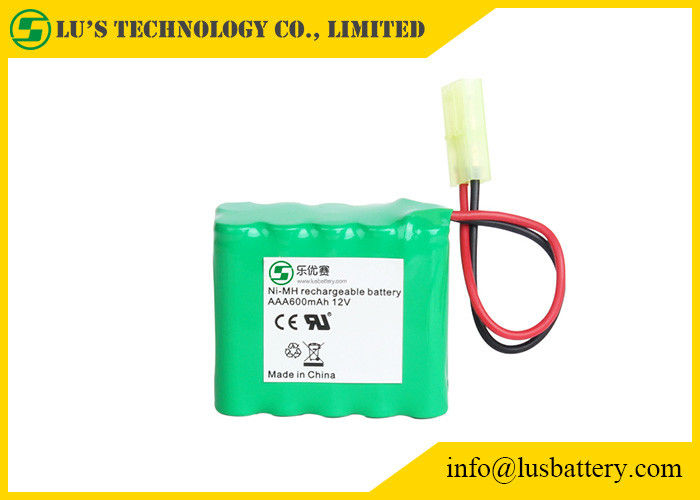

1.2V Rechargeable Battery NIMH 12V Nickel Metal Hydride Battery AAA600mah
Description of 12V600mah NIMH AAA:
| Type | NIMH |
| Voltage of Cell | 1.2V |
| Pack Voltage | 12V |
| Capacity | 600mah |
| Size | AAA |
| Terminals | Wires and Connector |
| Color | Customized |
| Package | Cartons |
Data Of Battery Pack:
The data of battery pack, including voltage and weight, is almost equivalent to the multiple
numbers of the relevant single cells.
Example: Battery pack consisting three single cells
Nominal voltage of single cell = 1.2V
Nominal voltage of battery pack = 1.2V×10 = 12V
NIMH Size AAA BatteryTechnical Data:
| Model | Spec. | Dimension(mm) | Capacity | Rapid Charge | Internal Impedance | Weight(g) | ||
| Diameter | High | Nominal | Current(mA) | Time(h) | Range(mΩ) | |||
| AAA | 1/4AAA8H | 10.5 +0 -0.7 | 12.5±0.5 | 80 | 80 | 1.2 | 65～95 | 3.0 |
| AAA | 1/4AAA8HP | 10.5 +0 -0.7 | 14.5±0.5 | 80 | 40 | 2.1 | 30～45 | 3.0 |
| AAA | 1/4AAA10HP | 10.5 +0 -0.7 | 14.5±0.5 | 100 | 50 | 30～45 | 3.5 | |
| AAA | 1/4AAA12HP | 10.5 +0 -0.7 | 14.5±0.5 | 120 | 60 | 30～45 | 4.0 | |
| AAA | 1/4AAA13H | 10.5 +0 -0.7 | 14.5±0.5 | 130 | 65 | 40～60 | 4.0 | |
| AAA | 1/4AAA13HP | 10.5 +0 -0.7 | 14.5±0.5 | 130 | 65 | 30～45 | 4.0 | |
| AAA | 1/4AAA15H | 10.5 +0 -0.7 | 14.5±0.5 | 150 | 75 | 40～60 | 4.0 | |
| AAA | 1/4AAA15HP | 10.5 +0 -0.7 | 17.5±0.5 | 150 | 75 | 30～45 | 4.5 | |
| AAA | 1/3AAA17H | 10.5 +0 -0.7 | 21.5±0.5 | 170 | 85 | 55～85 | 5.0 | |
| AAA | 1/4AAA18H | 10.5 +0 -0.7 | 17.5±0.5 | 180 | 90 | 40～60 | 5.0 | |
| AAA | 1/4AAA18HP | 10.5 +0 -0.7 | 17.5±0.5 | 180 | 90 | 30～45 | 5.0 | |
| AAA | 1/3AAA20HP | 10.5 +0 -0.7 | 21.5±0.5 | 200 | 200 | 1.2 | 25～35 | 5.5 |
| AAA | 1/3AAA21H | 10.5 +0 -0.7 | 21.5±0.5 | 210 | 210 | 50～85 | 5.5 | |
| AAA | 2/3AAA28H | 10.5 +0 -0.7 | 28.0±0.5 | 280 | 280 | 45～60 | 6.5 | |
| AAA | 2/3AAA28HJ | 10.5 +0 -0.7 | 29.5±0.5 | 280 | 280 | 45～60 | 6.5 | |
| AAA | 2/3AAA30H | 10.5 +0 -0.7 | 28.0±0.5 | 300 | 300 | 45～60 | 6.5 | |
| AAA | 2/3AAA30HJ | 10.5 +0 -0.7 | 29.5±0.5 | 300 | 300 | 45～60 | 7.0 | |
| AAA | 2/3AAA30HP | 10.5 +0 -0.7 | 28.0±0.5 | 300 | 150 | 2.1 | 15～25 | 7.5 |
| AAA | 2/3AAA35H | 10.5 +0 -0.7 | 28.0±0.5 | 350 | 350 | 1.2 | 45～60 | 7.5 |
| AAA | 2/3AAA35HJ | 10.5 +0 -0.7 | 29.5±0.5 | 350 | 350 | 45～60 | 7.5 | |
| AAA | 2/3AAA40H | 10.5 +0 -0.7 | 28.5±0.5 | 400 | 200 | 2.1 | 40～60 | 7.5 |
| AAA | 2/3AAA40HJ | 10.5 +0 -0.7 | 30.0±0.5 | 400 | 200 | 40～60 | 7.5 | |
| AAA | 4/5AAA48H | 10.5 +0 -0.7 | 37.5±0.5 | 480 | 480 | 1.2 | 25～55 | 10.0 |
| AAA | AAA30H | 10.5 +0 -0.7 | 42.5±0.5 | 300 | 300 | 35～55 | 9.5 | |
| AAA | AAA30HJ | 10.5 +0 -0.7 | 44.0±0.5 | 300 | 300 | 35～55 | 9.5 | |
| AAA | AAA35HT | 10.5 +0 -0.7 | 42.5±0.5 | 350 | 350 | 30～50 | 9.0 | |
| AAA | AAA40H | 10.5 +0 -0.7 | 42.5±0.5 | 400 | 400 | 35～55 | 10.0 | |
| AAA | AAA40HJ | 10.5 +0 -0.7 | 44.0±0.5 | 400 | 400 | 35～55 | 10.0 | |
| AAA | AAA45H | 10.5 +0 -0.7 | 42.5±0.5 | 450 | 450 | 45～65 | 10.5 | |
| AAA | AAA45HJ | 10.5 +0 -0.7 | 44.5+0-0.5 | 450 | 450 | 45～65 | 10.5 | |
| AAA | AAA50H | 10.5 +0 -0.7 | 42.5±0.5 | 500 | 500 | 45～60 | 11.0 | |
| AAA | AAA50HJ | 10.5 +0 -0.7 | 44.5+0-0.5 | 500 | 500 | 45～60 | 11.0 | |
| AAA | AAA55H | 10.5 +0 -0.7 | 42.5±0.5 | 550 | 550 | 35～55 | 11.0 | |
| AAA | AAA55HJ | 10.5 +0 -0.7 | 44.5+0-0.5 | 550 | 550 | 35～55 | 11.0 | |
| AAA | AAA60H | 10.5 +0 -0.7 | 42.5±0.5 | 600 | 600 | 35～55 | 11.5 | |
| AAA | AAA60HJ | 10.5 +0 -0.7 | 44.5+0-0.5 | 600 | 600 | 35～55 | 11.5 | |
| AAA | AAA60HP | 10.5 +0 -0.7 | 43.5±0.5 | 600 | 600 | 10～20 | 12.5 | |
| AAA | AAA65H | 10.5 +0 -0.7 | 42.5±0.5 | 650 | 325 | 2.1 | 35～50 | 12.0 |
| AAA | AAA65HJ | 10.5 +0 -0.7 | 44.5+0-0.5 | 650 | 325 | 35～50 | 12.0 | |
| AAA | AAA65HZ | 10.5 +0 -0.7 | 42.5±0.5 | 650 | 325 | 35～50 | 12.0 | |
| AAA | AAA65HZJ | 10.5 +0 -0.7 | 44.5+0-0.5 | 650 | 325 | 35～50 | 12.0 | |
| AAA | AAA70H | 10.5 +0 -0.7 | 43.5±0.5 | 700 | 350 | 30～50 | 12.0 | |
| AAA | AAA70HJ | 10.5 +0 -0.7 | 44.0±0.5 | 700 | 350 | 30～50 | 12.0 | |
| AAA | AAA75H | 10.5 +0 -0.7 | 43.5±0.5 | 750 | 375 | 25～50 | 12.5 | |
| AAA | AAA75HJ | 10.5 +0 -0.7 | 44.0±0.5 | 750 | 375 | 25～50 | 12.5 | |
| AAA | AAA75HZJ | 10.5 +0 -0.7 | 44.0±0.5 | 750 | 375 | 25～50 | 12.5 | |
| AAA | AAA80H | 10.5 +0 -0.7 | 43.5±0.5 | 800 | 400 | 25～50 | 13.0 | |
| AAA | AAA80HJ | 10.5 +0 -0.7 | 44.0±0.5 | 800 | 400 | 25～50 | 13.0 | |
| AAA | AAA85H | 10.5 +0 -0.7 | 43.5±0.5 | 850 | 255 | 3.6 | 25～50 | 13.5 |
| AAA | AAA85HJ | 10.5 +0 -0.7 | 44.0±0.5 | 850 | 255 | 25～50 | 13.5 | |
| AAA | AAA90H | 10.5 +0 -0.7 | 43.5±0.5 | 900 | 270 | 25～50 | 14.0 | |
| AAA | AAA90HJ | 10.5 +0 -0.7 | 44.0±0.5 | 900 | 270 | 25～50 | 14.0 | |
| AAA | 5/4AAA60H | 10.5 +0 -0.7 | 49.5±0.5 | 600 | 300 | 2.1 | 40～55 | 11.5 |
| AAA | 5/4AAA75H | 10.5 +0 -0.7 | 49.5±0.5 | 750 | 375 | 25～55 | 13.0 | |
| AAA | 5/4AAA80H | 10.5 +0 -0.7 | 49.5±0.5 | 800 | 400 | 25～55 | 14.0 | |
| AAA | 4/3AAA95H | 10.5 +0 -0.7 | 64.5±0.5 | 950 | 475 | 25～45 | 18.0 | |
NIMH Application:
MP3, Walkman, E-toys, E-tooth brusher, Brushes shaver, LED torch, Alarm system, Fire
alarm, Mining light, Sex toys, Adult toys.
NIMH Features:
1) High energy density
2) Low self-discharge
3) Long service life
4) Chargeable up to 500 or 1000 times
5) Excellent performance of high rate charge and discharge
6) Low internal resistance
12V NIMH Batteries 600mah AAA Size:
