Place of Origin:
China
Brand Name:
OEM
Model Number:
3S3A
Video
Video

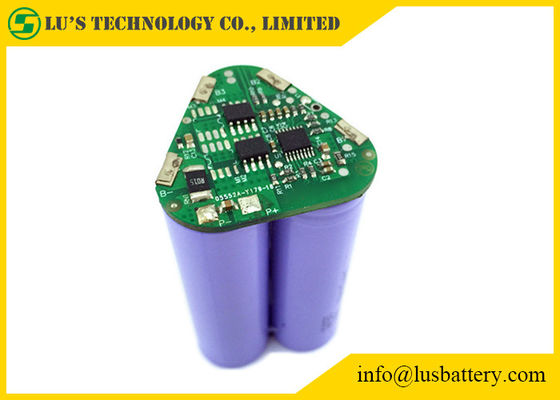

Product name: Protection Circuit Module (PCM)
Model No: PCM-3S3A-SH
Battery type: LiFePO4 battery
Lithium Polymer battery
LiCoO2 battery
LiMnO2 battery
LiCoxNiyMnzO2 battery
For 3S 18650/18500/14500/26650/32650/21700/32700 Lithium-ion Battery Packs
| Details | Min | Typ | Max | tolerance | Unit | ||
| Absolute Maximum Rating | |||||||
| Input Charging Current | 3 | 4 | A | ||||
| Output Discharging Voltage | 7.5 | 10.8 | 12.6 | V | |||
| Output Discharging Current | 3 | 4 | A | ||||
| Continuous Output Discharging Current | ≤6 | A | |||||
| Protection Parameters (for Individual Cell). | |||||||
| Over-Charge Voltage Protection (OVP) | 4.25 | ±25mV | V | ||||
| Over-Charge Voltage Protection Release (OVPR) | 4.15 | ±50mV | V | ||||
| Over-Charge Voltage Protection Delay Time (OVPDT) | 1 | S | |||||
| Over-Discharge Voltage Protection (UVP) | 2.5 | ±0.8V | V | ||||
| Over-Discharge Voltage Protection Release (UVPR) | 3 | ±0.1V | V | ||||
| Over-Current Discharge Protection (OCDP) | 6.66 | A | |||||
| Over-Current Protection Delay Time (OCPDT) | 9 | mS | |||||
| Over-Current Discharge Protection Release | Remove load | ||||||
| Short circuit protection Release | Remove load | ||||||
| Normal Mode | 100 | uA | |||||
| Idle mode | 100 | uA | |||||
| Ship mode | 40 | 80 | uA | ||||
| PCM Size | 53mm*17mm*5mm | ||||||
Picture:
Feature:
1.True lithum battery pack BMS factory
2.Supply OEM/ODM and custom service
3.High quality with smart balance function
4.Wholesale price
5.Environment
6.Fast delivery
Function:
Detect and protect the battery from over-charge ,over-dicharge, over-current short-circuit
,temperature detecting protection and auotmatically voltage balance function .
Build with high end electronic components (High End IC and MOSFET ) ,simple structure
design will let it have more stable quality working performance , Flexible application ( it can be used for less
series battery by leaving some connection pins at empty status ),full set of protection measures let it works well
without any infulence from external unexpected accidents.
About your products,just tell us the relative voltage/ cells/ current A or equipment etc,
we will help to recomment the most suitable products for you. or we design for you!
