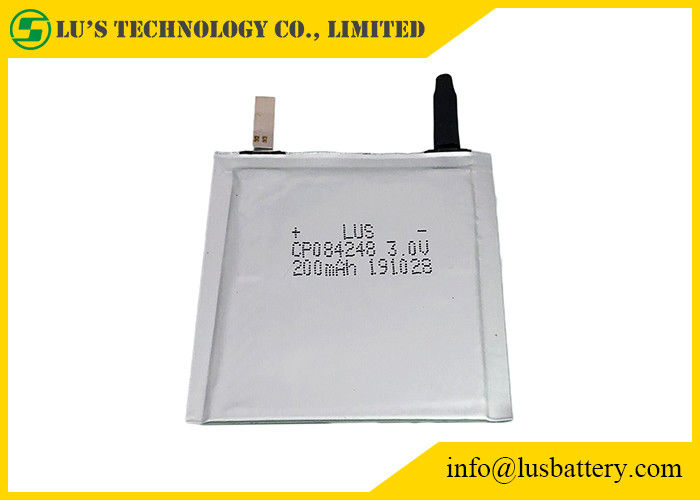

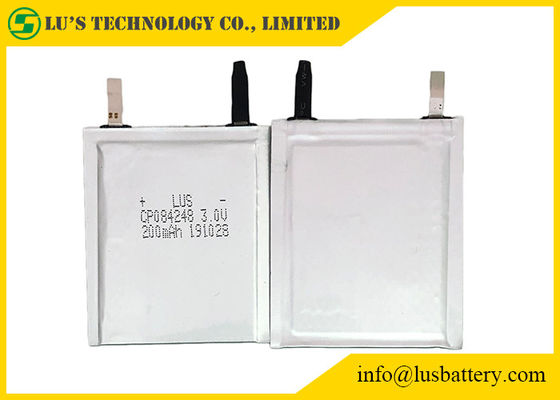

Disposable 3.0V 320mAh Lithium Ion Pouch Cell CP084248

Disposable 3.0V 320mAh Lithium Ion Pouch Cell CP084248
Disposable 3.0V 320mAh Lithium Ion Pouch Cell CP084248 Disposable 3.0V 320mAh Lithium Ion Pouch Cell CP084248 Disposable 3.0V 320mAh Lithium Ion Pouch Cell CP084248 Disposable 3.0V 320mAh Lithium Ion Pouch Cell CP084248

Large Image :  Disposable 3.0V 320mAh Lithium Ion Pouch Cell CP084248

Product Details:
Place of Origin: China
Brand Name: OEM
Model Number: CP084248 battery disposable cell
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: Bargain
Packaging Details: Carton
Delivery Time: 10-15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs/Month

Disposable 3.0V 320mAh Lithium Ion Pouch Cell CP084248

Description
Disposable Battery: Ultra Thin Battery Application: Tracking System And Smart Card
PCM: No Need Used For PCB: Very Suitable
OEM And ODM: Welcomed Voltage: 3v
Shelf Life: More Than 10 Years Payment: T/T
High Light:

320mAh Lithium Ion Pouch Cell

,

3.0V Lithium Ion Pouch Cell

,

Tracking System Disposable Pouch Cell


Data sheets:
Name Flexible lithium battery ultra thin cell
Model CP084248
Voltage 3.0V
Capacity 200mah
Dimension 0.8×42.5×48.5mm
Temperature -40 to +70
Weight 2 g
Max continuous discharge current 50mA
Max pluse discharge current 120mA
Shelf life Above 10 years
Terminals Customized
Shipping AIR/SEA/EXPRESS





Our service:
Disposable 3.0V 320mAh Lithium Ion Pouch Cell CP084248 0







Application Field:



RFID BATTERY / ID card battery / Payment system battery etc



Disposable 3.0V 320mAh Lithium Ion Pouch Cell CP084248 1

Flexible limno2 battery list
Model Max. dimensions (mm) Weight
(g)
Rated voltage(v) Rated Capacity
(mAh)
Standard
Discharge Current (mA)
Max.Current (mA)
Continuous Pulse
CP042922 0.45*29*22 0.4 3.0 15 0.5 10 20
CP042345 0.45*23*45 0.8 3.0 30 0.5 20 35
CP0453730 0.48*37*30 0.8 3.0 35 0.5 15 30
CP104848 1.2*49*49 3.8 3.0 350 1.0 50 100
CP142828 1.5*29*29 1.5 3.0 100 1.0 15 30
CP144920 1.4*49*20 1.5 3.0 150 1.0 20 40
CP153030 1.6*31*31 1.8 3.0 120 1.0 50 100
CP155050 1.6*51*51 6.0 3.0 650 5.0 500 1000
CP2012120 2.0*12*125 5.5 3.0 400 1.0 100 200
CP202850 2.2*28.5*50 3.6 3.0 380 1.0 100 200
CP224035 2.4*41*36 4.8 3.0 580 1.0 150 300
CP223045 2.4*31*46 4.2 3.0 480 1.0 150 300
CP224147 2.3*45*49 7.0 3.0 800 1.0 500 1200
CP265045 2.8*51*46 9.0 3.0 1200 1.0 300 500
CP264558 2.8*46*59 9.5 3.0 1250 5.0 300 500
CP305050 3.2*51*51 12.5 3.0 1600 5.0 600 1000
CP401720 4.2*18*21 2.0 3.0 220 1.0 50 120
CP401922 4.2*20*23 2.6 3.0 300 1.0 100 150
CP405050 4.2*51*51 17.0 3.0 2400 5.0 1000 1500
CP451728 4.5*18*29 3.2 3.0 380 1.0 120 200
CP502525 5.2*26*26 4.5 3.0 600 5.0 200 300
CP502440 5.2*25*42 8.5 3.0 1200 1.0 400 800
CP503742 5.2*38*43 13.0 3.0 1900 5.0 800 1200
CP504644 5.2*47*45 17.0 3.0 2500 5.0 1200 2000
CP505050 5.2*51*51 22.0 3.0 3000 10.0 1500 2000
CP602026 6.2*21*27 4.5 3.0 550 1.0 200 300
CP701725 7.2*18*26 4.5 3.0 520 1.0 150 300
CP783970 7.8*39*70 36.5 3.0 5500 10.0 3000 5000
CP7839109 7.8*39*109 63.0 3.0 10000 10.0 3000 5000
CP802060 8.0*20*60 15.5 3.0 2100 10.0 2000 3000
CP952434 9.7*25*35 11.5 3.0 1700 5.0 500 800
CP1003742 10.2*38*43 26.0 3.0 3900 5.0 1200 2000
CP9V 17.5*26.5*48.8 30.0 9.0 1200 1.0 400 800
CR123A 17*34.5 17.0 3.0 1400 1.0 1500 3000
CR2 15.5*27 11.0 3.0 800 10.0 1000 2000
CR-P2 19.5*34.5 37.0 6.0 1400 10.0 2000 3000
If you can't find the model on list please feel free to contact us for more information. Any special size can be customized. E-mail: cindy@lusbattery.com







Thin Cell Advantage

We can make Li-MnO2 soft battery as thin as 0.4-0.6mm, which is perfect for smart card, security card, RFID ,ETC and more applications.

NO MOQ with fast lead time.

Welcome for any customized.



Product Feature:

Disposable 3.0V 320mAh Lithium Ion Pouch Cell CP084248 2

Main points of flexible packaging lithium manganese battery



Flexible package structure design, special negative electrode structure design, self sealing diaphragm: improve battery safety;



Special raw material pretreatment: improve battery storage and comprehensive performance;



Continuous coating technology: improve battery performance, consistency and reliability;



Special electrolyte formula: improve battery environment, adaptability and storage performance;



HRL coating technology: improve battery safety performance and storage performance;



Battery integrated design technology: to ensure the highest safety performance of batteries, comprehensive design of the performance;



Large capacity flexible packaging lithium manganese battery technology: improve battery composition, group consistency;



Hybrid battery technology: both high specific energy and high pulse current performance.



FAQ

1.Could you tell me your main product?

Re:Our main production is LiMnO2 flexible battery(ultra thin cell), LiSoCl2 battery and Rechargable battery.



2.What is your MOQ?

Re: For available items NO MOQ

For OEM designs MOQ is 500 pcs per item



3.Could we do our logo customized ?

Re:Yes,we could do your printing and also accept original design service.



4.What is sample Date?

Re: we will send out within 1 week after details confirmation.



5.What is the Order Deliver Date?

Re: For available items in our stock is 3-5 days is ok.

For OEM designs need 15-25 days





6.Could you tell me your payment item?

Payment Item:

1: T/T, credit card / Visa / Mastercard / Alipay

2: 30% deposit advance,70% balance paid before ship out.



7.What is your After-sell service.
Re: When you find the product are damaged ,pls take photos and send to the salesman you are talking with. We will handle this and give you a satisfied solution method.

8.Can we set order by alibaba online?
Re: Of course you can and we strongly support our customer to set orders on line. No matter you set order online or off-line, you get the quality guarantee by our company.

9.Could we visit you factory before setting orders.
Re: Yes. You can visit our factory when you are convenience. We are sure that you will trust us after your visiting. We will pick you up if you need.
