|Self Discharge Rate:||2%||Shipping:||Customized|
|Assembly Way:||Single Cell The Inflexed Fold And Solder||Name:||Ultra Thin Cell|

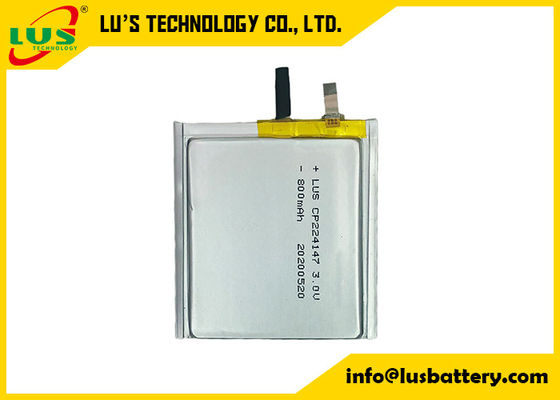

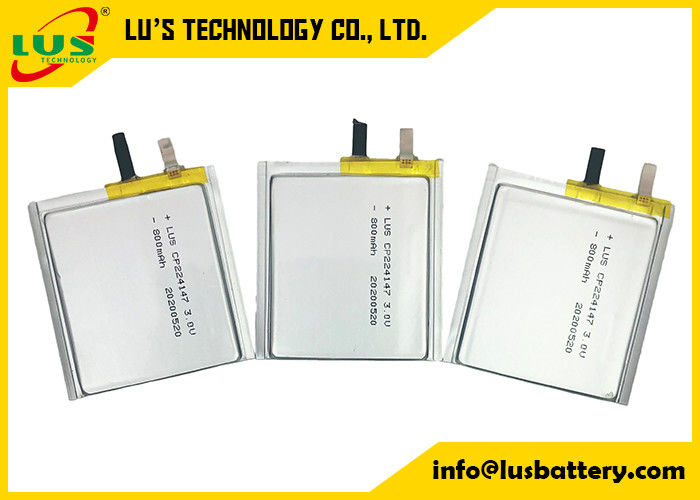

800mah Ultra Thin Limno2 Battery,
CP224147 Ultra Thin Limno2 Battery,
3.0v Limno2 Flat Lithium Battery
CP224147 3V Ultra Thin Battery
|Name||Limno2 batteries 3v ultra thin battery|
|Temperature||-40 to +70|
|Max discharge current||500mA|
|Max pluse discharge current||1200mA|
|Storage life||15 years|
|Terminals||Can be customized|
a. Civilian field: AMR of common instruments and CMOS circuit boards
b. Various smart meters: smart electric meters, water meters, heat meters and gas meters
c. Memories and standby power supplies: memory backup, clock power supplies and data backup power supplies
d. Radio alarm equipment/sensors: smoke alarms and temperature monitors
e. Remote monitoring systems: positioning devices and marine telemetry systems
f. Automotive electronics: tire pressure monitoring systems
g. Industrial field: automation instrumentations and equipment, oil wells, mines, medical equipment, burglar alarm, wireless communication, sea survival, etc.
h. Modern national defense and military fields: aviation, spaceflight, marine electronics, air-sea-land weapons, etc.
a. High and stable working voltage
b. Wide operating temperature range
c. Longer storage life and higher reliability
d. High safety and non-pollution
Main points of flexible packaging lithium manganese battery
Flexible package structure design, special negative electrode structure design, self sealing
diaphragm: improve battery safety;
Special raw material pretreatment: improve battery storage and comprehensive performance;
Continuous coating technology: improve battery performance, consistency and reliability;
Special electrolyte formula: improve battery environment, adaptability and storage
HRL coating technology: improve battery safety performance and storage performance;
Battery integrated design technology: to ensure the highest safety performance of batteries,
comprehensive design of the performance;
Large capacity flexible packaging lithium manganese battery technology: improve battery
composition, group consistency;
Hybrid battery technology: both high specific energy and high pulse current performance.
If the cell is to be stored for 3 months or longer it should be held in a dry and cool environment.
Voltage during storage needs to me maintained between 3.05V~3.28V.
Any issues not covered in this specification should be discussed between the customer and LUS.
The repair period is 6 months from the data that the batteries are shipped out from LUS factory (the printing date on the cell).
High and low temperature test
Testing Conditions and Method
A battery is placed in an oven for 2 hours at
55ºC±2ºC, then discharged at a 1mA current to the termination voltage.
Discharge 90 percent of the original capacity.
A battery is placed in a thermal chamber for 2 hours at -10ºC±2ºC; then discharged at
1mA to the termination voltage.
Discharge more than 45 percent of the original capacity.
