Soft Cell 3V 1200mah Ultra Thin Battery CP502440 Primary Lithium Battery

Soft Cell 3V 1200mah Ultra Thin Battery CP502440 Primary Lithium Battery
Soft Cell 3V 1200mah Ultra Thin Battery CP502440 Primary Lithium Battery
Soft Cell 3V 1200mah Ultra Thin Battery CP502440 Primary Lithium Battery Soft Cell 3V 1200mah Ultra Thin Battery CP502440 Primary Lithium Battery Soft Cell 3V 1200mah Ultra Thin Battery CP502440 Primary Lithium Battery

Large Image :  Soft Cell 3V 1200mah Ultra Thin Battery CP502440 Primary Lithium Battery

Product Details:
Place of Origin: China
Brand Name: OEM
Model Number: CP502440
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Bargain
Packaging Details: cartons
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000pcs/days

Soft Cell 3V 1200mah Ultra Thin Battery CP502440 Primary Lithium Battery

Description
Nominal Voltage: 3.0V Operating Temp: -20℃ ----60℃
Shelf Life: 10 Years Discharge Cut-off Voltage: 2.0V
Shipping: Customized Material: Limno2
High Light:

Ultra Thin Battery CP502440

,

3V 1200mah Ultra Thin Battery

,

CP502440 Primary Lithium Battery

Model:



CP502440 Ultra Thin Primary Lithium Batteries soft cell 3V



Data sheets:
Type Soft pack Lithium Battery ultra thin cell
Model CP502440
Voltage 3.0V
Capacity 1200mah
Max Continuous Discharge Current 150mA
Max Pulse Discharge Current 300mA
Terminals Can be customized
Self life 10 years
OEM and ODM Welcome
Shipment AIR/SEA/EXPRESS





Main Characteristics:



a. High and stable working voltage



b. Wide operating temperature range



c. Longer storage life and higher reliability



d. High safety and non-pollution





Application Field:



a. Civilian field: AMR of common instruments and CMOS circuit boards



b. Various smart meters: smart electric meters, water meters, heat meters and gas meters



c. Memories and standby power supplies: memory backup, clock power supplies and data backup power supplies



d. Radio alarm equipment/sensors: smoke alarms and temperature monitors



e. Remote monitoring systems: positioning devices and marine telemetry systems



f. Automotive electronics: tire pressure monitoring systems



g. Industrial field: automation instrumentations and equipment, oil wells, mines, medical equipment, burglar alarm, wireless communication, sea survival, etc.



h. Modern national defense and military fields: aviation, spaceflight, marine electronics, air-sea-land weapons, etc.

Soft Cell 3V 1200mah Ultra Thin Battery CP502440 Primary Lithium Battery 0



Main points of flexible packaging lithium manganese battery



Flexible package structure design, special negative electrode structure design, self sealing



diaphragm: improve battery safety;



Special raw material pretreatment: improve battery storage and comprehensive performance;



Continuous coating technology: improve battery performance, consistency and reliability;



Special electrolyte formula: improve battery environment, adaptability and storage



performance;



HRL coating technology: improve battery safety performance and storage performance;



Battery integrated design technology: to ensure the highest safety performance of batteries,



comprehensive design of the performance;



Large capacity flexible packaging lithium manganese battery technology: improve battery



composition, group consistency;



Hybrid battery technology: both high specific energy and high pulse current performance.

Soft Cell 3V 1200mah Ultra Thin Battery CP502440 Primary Lithium Battery 1



Battery Cell Performance Criteria



Standard testing environment



Unless specifically stated otherwise, tests must be done within one month of delivery and the



number of charging-recharging cycles is fewer than 5. The following is test conditions:



Test conditions:



Ambient Temperature: 25ºC ± 1ºC Ambient Humidity: 45~75%RH



The requirement of measure instrument



(1) The measurement instrument has been certified by a qualified source.



(2) The accuracy of the measuring instrument is less than 0.01mm.



(3) The accuracy of multimeter is at least 0.5%.



(4) The current accuracy of the battery test system is at least ±0.1%, isobarically accuracy is



±0.5%, and timer accuracy is not less than ±0.1%.



(5) The accuracy of the thermometer is at least ±0.5ºC.



 Visual inspection



Not allowing any visual defects which will affect the electronic characteristics, such as leakage



and damage.

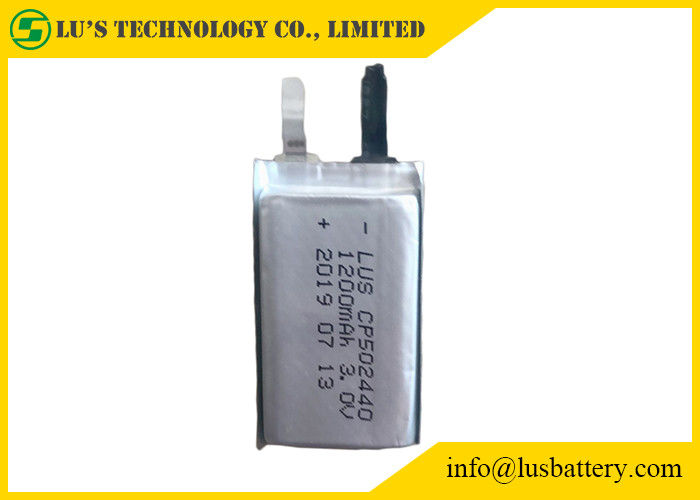

Primary Lithium Soft Package Battery 3V CP502425 Product Picture:



Soft Cell 3V 1200mah Ultra Thin Battery CP502440 Primary Lithium Battery 2
