Product Details:
|
| Type: | Disposable Battery | Material: | Limno2 |
|---|---|---|---|

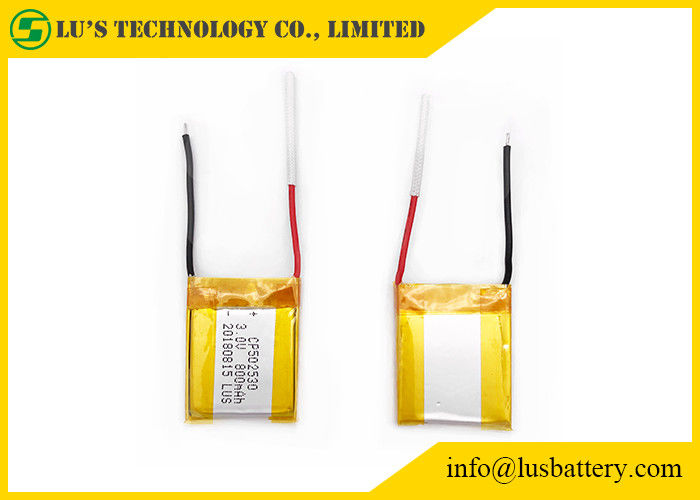

| Name: | Ultra Thin Cell | Battery Number: | CP502530 |
| Voltage: | 3V | Capacity: | 800mah |
| Factory: | Yes | Samples Testing: | Provide |
| High Light: | CP502530 Lithium Manganese Battery,3V 800mAh Lithium Manganese Battery,1S1P Limno2 Disposable Battery |
||
| No. | Item | Spec | Note |
|
1 |
Model
|
CP502530/800mAh |
1S1P |
|
2 |
Nominal Voltage
|
3.0V |
When shipping, the voltage without load is between3.05V and 3.25V.
|
|
3 |
Nominal Capacity
|
Typ:800mAh@1mA |
Nominal Capacity refer to the capacity of 1mA discharge to 2.0V cut-off voltage at 23℃.
|
|
4 |
Max.Discharge Current
|
120mA |
At 25±2℃ the battery can discharge at least the max continuous discharge value which rated capacity 50% can permit.
|
|
5 |
Max. Discharge Current
|
250mA |
At 23±2℃,battery discharge duration for 3 seconds and stand 27 seconds, it can discharge at least the max pulse discharge value which rated capacity 50% can permit
|
|
6 |
Discharge Cut-off Voltage
|
2.0V |
|
|
7 |
Operating Temperature
|
-20℃~ +60℃ |
Exceed the operating temperature range could lead to battery operating voltage reduction or even a security risk.
|
|
8 |
storage temperature
|
-5 ℃~+35℃ | 3.05V ~ 3.25V |
| 9 |
Storage life
|
10 years |
Relative humidity 45~75%RH Temperature -5 ℃~+35℃ |
|
10 |
Cell Weight
|
Approx: 7g 7g |
|
| 11 |
Self Discharge Rate
|
2% |
Out of the recommended condition, the self-discharge rate 2% may increase.
|
|
12 |
Assemblage Dimension
|
Length:30.0mm Max Width:25.0mm Max Thickness:5.1mm Max |
Measured weight of 300gf at 25 ℃ ± 1 ℃.Not including battery drawing line. |
Main Characteristics:
a. High and stable working voltage
b. Wide operating temperature range
c. Longer storage life and higher reliability
d. High safety and non-pollution
Application Field:
RFID BATTERY / ID card battery / Payment system battery etc
a. Civilian field: AMR of common instruments and CMOS circuit boards
b. Various smart meters: smart electric meters, water meters, heat meters and gas meters
c. Memories and standby power supplies: memory backup, clock power supplies and data backup power supplies
d. Radio alarm equipment/sensors: smoke alarms and temperature monitors
e. Remote monitoring systems: positioning devices and marine telemetry systems
f. Automotive electronics: tire pressure monitoring systems
g. Industrial field: automation instrumentations and equipment, oil wells, mines, medical equipment, burglar alarm, wireless communication, sea survival, etc.
h. Modern national defense and military fields: aviation, spaceflight, marine electronics, air-sea-land weapons, etc.
Product Feature:
