Place of Origin:
China
Brand Name:
OEM
Model Number:

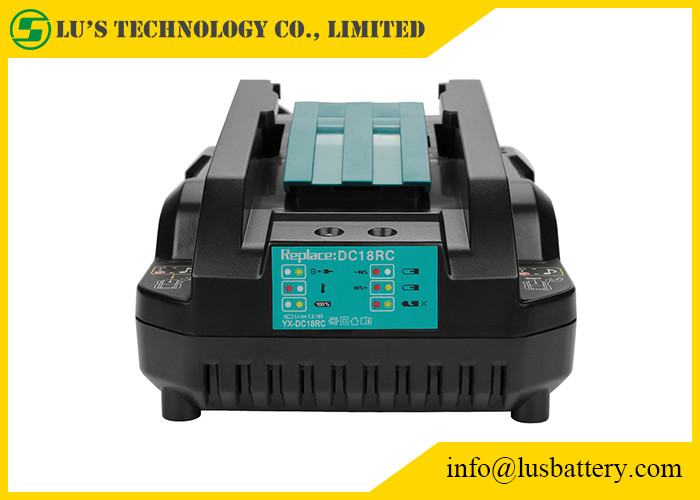

LDC18RC 3A
Video
Video
Video
DESCRIPTION:
Compatible models:
18V BL1815 BL1830 BL1840 BL1845 BL1860
14.4V BL1415 BL1430 BL1440.BL1445 BL1460
| Model | LDC18RC |
| Dimension | 190*166*103(mm) |
| AC | 100-260V |
| Frequency | 50-60Hz |
| DC | 7.2v - 18v |
| Current | 3A |
| Safety standard | EN60335 |
| Samples | Available |
| Customized | Welcome |
PROTECTION
OVER LOAD PROTECTION
OVER TEMPERATURE PROTECTION
OVER CURRENT PROTECTION.
OUTPUT SHORTED PROTECTION
INPUT LOW VOLTAGE PROTECTION
ENVIRONMENAL CONDITION
OPERATIONG CONDITION
CHAGER OPERATES IN -5℃ to-40℃. HUMIDITY:20%-85%
STORAGE CONDITION
CHARGER STORAGES CONDITION:-20℃ TO 70℃.
COOLING METHOD
FREE CONVECTION
ELECTROMAGNETIC COMPABILITY
EMI The charger EMI meets with EN55013 & FCC PART 15B
ESD The charger is cable to withstand ESD test voltage at any point around the
encournce as be low,herein refer to IEC6100-4-2.
After applied +/-4KV contact discharge and the charger is no function erro.
After applied +/-8KV air discharge and the charger is no function erro.
RELIABILITY
MTBF
The charger shall have a minimum predicted MTBF(MIL-STD-217F) of 20000hours
at mormal operation condition and nmormal use.
LIFETIME
Lifetime of the charger shall be more than 10000hours under input rating voltae
and mean output current.
Normal operation conditions and use:
- Ambient temperature:25±2℃
- Stabdby(0mA): 1 hours/day
- charger operate method:(Specified normal load):23hours/day
SAFETY STANDARD
CHAGER meets with safety standard:EN60335.
DIELECTRIC WITHSTABD VOLTAGE
HI-POT:PRI-SECOND: 2KV 5MA 5S
INSULATION RESISTANCE
DC 500V PRI-SECOND INSULATION RESISRANCE
WARNIN:
1. the charger used indoor.
2. don't shorted batter.
3. don't open che charger,shock dangerous.
4. Don't expose charger in rain or against damp place.
PRODUCT:
