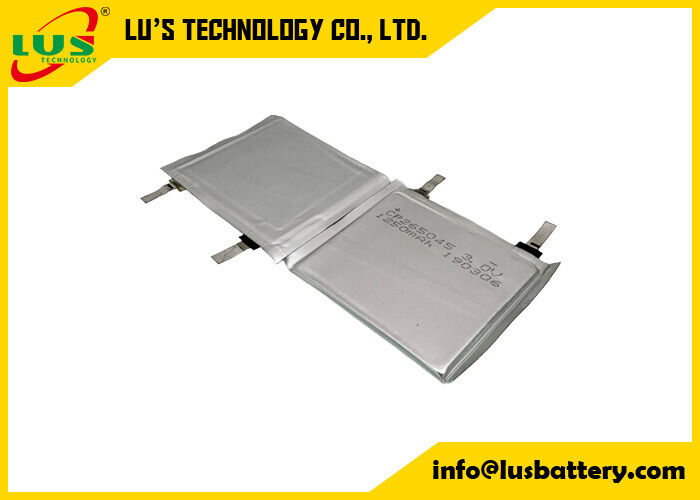

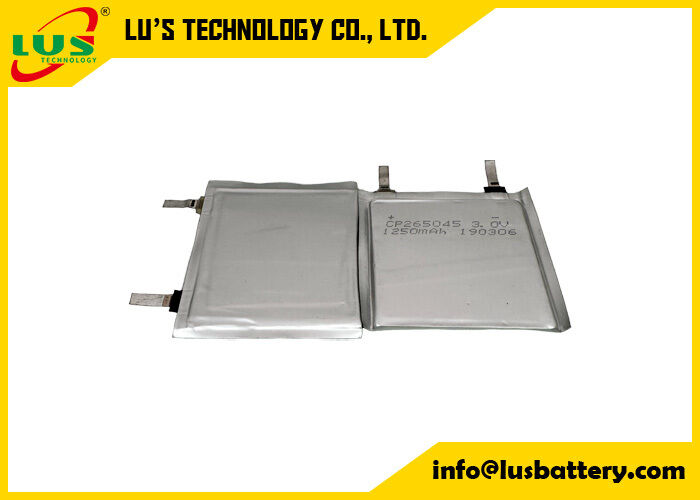

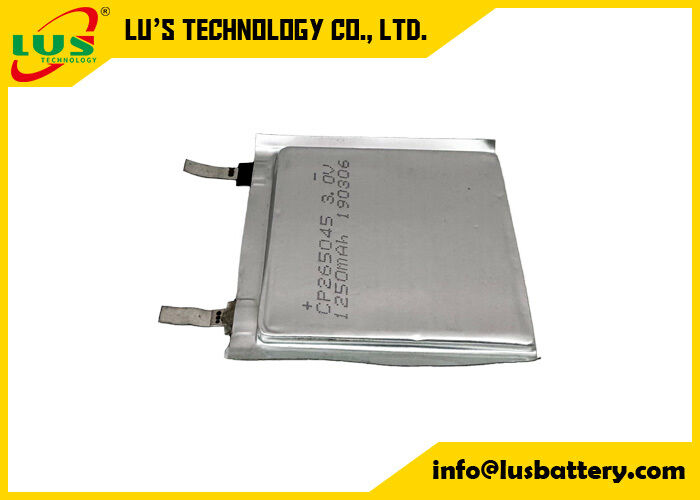

Soft LiMnO2 Primary Lithium Battery CP265045 1250mah Customized Terminals

Soft LiMnO2 Primary Lithium Battery CP265045 1250mah Customized Terminals
Soft LiMnO2 Primary Lithium Battery CP265045 1250mah Customized Terminals

Large Image :  Soft LiMnO2 Primary Lithium Battery CP265045 1250mah Customized Terminals

Product Details:
Place of Origin: China
Brand Name: OEM
Model Number: CP265045 thin battery
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Bargain
Packaging Details: cartons
Delivery Time: 8-15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000pcs/Month

Soft LiMnO2 Primary Lithium Battery CP265045 1250mah Customized Terminals

Description
Terminals: Pins/Tabs/Wires/Connector Or Customized Samples: Available
Capacity: 1250mah Voltage: 3.0V
Battery Number: CP265045 Name: Ultra Thin Lithium Primary Battery
Color: Silver Or Customized Logo Package: PVC
High Light:

Soft LiMnO2 Primary Lithium Battery

,

Customized Terminals Primary Lithium Battery

,

1250mah Ultra Thin Primary Battery


Data sheets:
Name Li-MnO2 Battery ultra thin cell
Model CP265045
Voltage 3.0V
Capacity 1250mah
Dimension Max.2.8*51*46mm
Temperature -40 to +60
Weight 9g
Max.Continuous Current (mA) 300mA
Max.Pulse Current (mA) 500mA
Terminals Can be customized
OEM and ODM Welcome



Feature:

Soft LiMnO2 Primary Lithium Battery CP265045 1250mah Customized Terminals 0





Application Field:



RFID BATTERY / ID card battery / Payment system battery etc





a. Civilian field: AMR of common instruments and CMOS circuit boards



b. Various smart meters: smart electric meters, water meters, heat meters and gas meters



c. Memories and standby power supplies: memory backup, clock power supplies and data backup power supplies



d. Radio alarm equipment/sensors: smoke alarms and temperature monitors



e. Remote monitoring systems: positioning devices and marine telemetry systems



f. Automotive electronics: tire pressure monitoring systems



g. Industrial field: automation instrumentations and equipment, oil wells, mines, medical equipment, burglar alarm, wireless communication, sea survival, etc.



h. Modern national defense and military fields: aviation, spaceflight, marine electronics, air-sea-land weapons, etc.

Soft LiMnO2 Primary Lithium Battery CP265045 1250mah Customized Terminals 1

Thin cell model
Model Size Nominal Voltage Nominal Capacity Max Continuous Discharge Current Max Pulse Discharge Current Dimension
T(mm) W(mm) H(mm)
CP042345 3V 35mAh 2mA 4mA 0.45 23±0.5 45±0.5
CP042529 3V 22mAh 2mA 4mA 0.45 25±0.5 29±0.5
CP042722 3V 15 mAh 1mA 2mA 0.45 27±0.5 22±0.5
CP042922 3V 15mAh 1mA 2mA 0.41 29 23
CP044040 3V 50mAh 5mA 10mA 0.45 40 40±0.5
CP044560 3V 100mAh 10mA 20mA 0.45 45.5 60
CP052039 3V 25 mAh 2 mA 4 mA 0.5 20 39
CP052722 3V 22mAh 1mA 2mA 0.5 27 22
CP053050 3V 80mAh 15mA 30mA 0.5 30 50
CP054248 3V 100mAh 20mA 40mA 0.5 48.5±0.5 48.5±0.5
CP064348 3V 200mAh 20mA 50mA 0.6 48.5±0.5 48.5±0.5
CP073545 3V 160mAh 10mA 20mA 0.7 35 45
CP082922 3V 50 mAh 20mA 80mA 0.8 29 22
CP084248 3V 320mAh 20mA 50mA 0.8 48.5±0.5 48.5±0.5
CP102015 3V 30mAh 2mA 5mA 1 20±0.5 15±0.5
CP104248 3V 420mAh 100mA 200mA 1.05 49 49
CP105050 3V 420mAh 100mA 200mA 1.05 50 50
CP105075 3V 450mAh 200mA 300mA 1.05 45.2 75
CP105256 3V 500mAh 30mA 50mA 1.05 52 56
CP124444 3V 420 mAh 75 mA 150mA 1.2 44 44
CP142828 3V 160mAh 25mA 50mA 1.4 28±1.0 28±1.0
CP142828H 3V 140mAh 50mA 100mA 1.4 28±1.0 28±1.0
CP151220 3V 35mAh 5mA 10mA 1.5 12±0.5 20±0.5
CP153030 3V 170mAh 40mA 80mA 1.5 30 30
CP153030H 3V 140mAh 50mA 100mA 1.5 30 30
CP154580 3V 1000mAh 150mA 300mA 1.5 45±0.5 80
CP151015 3V 18mAh 0.5mA 1mA 1.5 10±0.5 15±0.5
CP161220H 3V 20mAh 16mA 30mA 1.6 12±0.5 20±0.5
CP161230H 3V 45mAh 16mA 30mA 1.6 12±0.5 30±0.5
CP162235 3V 160mAh 30mA 50mA 1.6 22 35
CP164548 3V 700mAh 50mA 100mA 1.6 45.5 48.5
CP171234 3V 140mAh 20mA 50mA 3.6 35 13.5
CP181234 3V 125mAh 25mA 50mA 1.8 12±0.5 34
CP183123 3V 150mAh 45mA 75mA 1.8
CP201335 3V 120mAh 25mA 50mA 2 10 35
CP201535 3V 120mAh 30mA 60mA 1.9 14 35
CP202128 3V 130mAh 20mA 40mA 2 21±0.5 28±0.5
CP202540 3V 350mAh 75mA 150mA 2 25±0.5 40±0.5
CP202721 3V 140mAh 40mA 80mA 2 27±0.5 21±0.5
CP203030 3V 230mAh 50mA 100mA 2 30 30
CP203034 3V 275 mAh 50 mA 100mA 2 30 34
CP203040 3V 210mAh/380MAH 100mA 200mA 2 30±0.5 40±0.5
CP203242 3V 375mAh 75mA 150mA 2.1 32 42
CP204517 3V 210mAh 20mA 50mA 2 45±0.5 17±0.5
CP204547 3V 750mAh 50mA 100mA 2 45±0.5 47±0.5
CP222920 3V 150mAh 45mA 75mA 2.2
CP224248 3V 850mAh 100mA 200mA 2.2 45±0.5 48.5±0.5
CP225050 3V 1000mAh 200mA 400mA 2.2 50 50
CP225080 3V 1700mAh 200mA 400mA 2.2 50 80
CP242030 3V 230mAh 50mA 100mA 2.4 20±0.5 30±0.5
CP255050 3V 1200mAh 150mA 300mA 2.5 50 50
CP251525 3V 150mAh 40mA 80mA 2.5 15±0.5 25±0.5
CP251626 3V 150mAh 60mA 150mA 2.5 16±0.5 26.5±0.5
CP252525 3V 250mAh 30mA 60mA 2.5 25.5 25.5
CP255047 3V 1250mAh 150mA 300mA 2.5 50 47.5±0.5
CP255080 3V 2050mAh 300mA 600mA 2.5 50 80
CP301415 3V 85mAh 30mA 60mA 3 14±0.5 15±0.5
CP301919-2S 6V 150mAh 50 mA 100mA 6.1 19.5 19.5
CP302525 3V 350mAh 75 mA 150 mA 3 25 25
CP304580 3V 2500mAh 200mA 500mA 3 45 80
CP321626 3V 250mAh 50mA 100mA 6.1 19.5 19.5
CP334728 3V 700mAh 100mA 200mA 3.5 47.5 28.0±0.5
CP352440 3V 750mAh 100mA 300mA 3.5 24.5 41
CP355050 3V 2000mAh 500mA 1000mA 3.5 50 50
CP402020 3V 275mAh 50mA 100mA 4 20±0.5 20±0.5
CP402424H 3V 400mAh 100mA 300mA 4 24 24
CP403030 3V 550mAh 75mA 150mA 4 30 30
CP453450 3V 1700mAh 300mA 600mA 4.5 33±0.5 49±0.5
CP501525 3V 350mAh 80mA 150mA 5 15±0.5 25.5±0.5
CP502440 3V 1200mAh 150mA 300mA 5 24.5±0.5 41
CP502540 3V 1200mAh 150mA 300mA 5.2 42 25.5
CP503436 3V 1550mAh 200mA 500mA 5.2 34.5 36
CP503740 3V 1700mAh 300mA 600mA 5 37±0.5 40±0.5
CP503742 3V 1700mAh 300mA 600mA 5 37±0.5 42±0.5
CP505050 3V 3000mAh 500mA 1500mA 5.2 50.5±0.5 50.5±0.5
CP505050-2S 6V 3000mAh 600mA 1800mA
CP505050-2P 3V 6000mAh 1000mA 2000mA 10.3 50.5 50.5
CP543537 3V 1500mAh 200mA 400mA 5.6 35.5 37
CP601919 3V 300mAh 100mA 200mA 6.1 19.5 19.5
CP603450 3V 2400mAh 500mA 1000mA 6.1 34±0.5 50±0.5
CP603956 3V 3300mAh 800mA 1500mA 6.1 39±0.5 56
CP604446-2S 6V 3000mAh 2000mA 4000mA 13 46 44
CP603244 3V 2000mAh 1000mA 1500mA 6.2 32,5 44.5
CP702242 3V 1500mAh 200mA 1200mA 7 22 42
CP703028 3V 1000mAh 200mA 400mA 7 30 28
CP703448 3V 2000mAh 1000mA 1500mA 7 34 48.5
CP806468 3V 8000mAh 2000mA 4000mA 7.6 64 68
CP1002045 3V 1800mAh 900mA 1500mA 10.2 20.5 45.5
CP1002440 3V 2400mAh 400mA 800mA 10.2 25.5 40.5
CP1002550 3V 2700mAh 500mA 1000mA 10.2 25.5 50.5
CP4542100 3V 4750mAh 800mA 1500mA 4.5 42.5 100
CP7839109 3V 9000mAh 2000mA 3000mA 7.9 39±0.5 109
CP11568125 3V 28000mAh 4000mA 6000mA 12 68.5 126
CP9V 9V 1200mAh 150mA 300mA
Quality control:
Soft LiMnO2 Primary Lithium Battery CP265045 1250mah Customized Terminals 2
Thin Cell Advantage

We can make Li-MnO2 soft battery as thin as 0.4-0.6mm, which is perfect for smart card, security card, RFID ,ETC applications.

NO MOQ with fast lead time.

Welcome for any customized.

Thanks.
