Product Details:
|
| Shape: | Soft Package | Material: | Limno2 |
|---|---|---|---|
| Voltage: | 3.0v | Capacity: | 800mah |
| Dimension: | 5.1*25*30mm | Temperature: | -40 To +60 |
| High Light: | 3.0v Customizable Primary Battery,Limno2 Customizable Primary Battery,800mah Limno2 Battery Pack |
||
|
No. |
Item |
Spec |
Note |
|
1 |
Model
|
CP502530/800mAh |
1S1P |
|
2 |
Nominal Voltage
|
3.0V |
When shipping, the voltage without load is between3.05V and 3.25V.
|
|
3 |
Nominal Capacity
|
Typ:800mAh@1mA |
Nominal Capacity refer to the capacity of 1mA discharge to 2.0V cut-off voltage at 23℃.
|
|
4 |
Max.Discharge Current
|
120mA |
At 25±2℃ the battery can discharge at least the max continuous discharge value which rated capacity 50% can permit.
|
|
5 |
Max. Discharge Current
|
250mA |
At 23±2℃,battery discharge duration for 3 seconds and stand 27 seconds, it can discharge at least the max pulse discharge value which rated capacity 50% can permit
|
|
6 |
Discharge Cut-off Voltage
|
2.0V |
|
|
7 |
Operating Temperature
|
-20℃~ +60℃ |
Exceed the operating temperature range could lead to battery operating voltage reduction or even a security risk.
|
|
8 |
storage temperature
|
-5 ℃~+35℃ |
3.05V ~ 3.25V |
|
9 |
Storage life
|
10years |
Relative humidity 45~75%RH Temperature -5 ℃~+35℃ |
|
10 |
Cell Weight
|
Approx: 7g 7g |
|
|
11 |
Self Discharge Rate
|
2% |
Out of the recommended condition, the self-discharge rate 2% may increase.
|
|
12 |
Assemblage Dimension
|
Length:30.0mm Max Width:25.0mm Max Thickness:5.1mm Max |
Measured weight of 300gf at 25 ℃ ± 1 ℃.Not including battery drawing line. |
Application Field:
RFID BATTERY / ID card battery / Payment system battery etc
LiSOCL2 energy type and power type:
ER10250, ER10280,ER10450, ER13150, ER13170, ER14250, ER14335, ER14505, ER17335, ER17505, ER18505, ER20505,ER26500, ER34615, ER341245,ER9V and more ...
LiMnO2 energy type and power type:
CR10250, CR10450, CR14335, CR14505, CR17285, CR17335, CR17450, CR17505, CR10450, CR18505, CR20505, CR26500, CR26600, CR34615, CR123A, CR2,CR9V...
Soft pack LimnO2 battery type:
CP042922 CP042345 CP0453730 CP263638 CP265040 CP092142 CP104848 CP142828 CP153030 CP155050 CP2012120 CP202850
CP224035 CP223045 CP224147 CP265045 CP264558 CP305050
CP401720 CP401922 CP405050 CP451728 CP502525 CP502440
CP503742 CP504644 CP505050 CP602026 CP701725 CP783970
CP7839109 CP802060 CP952434 CP1003742 CP383040 CR9V
LU's battery is an experienced supplier of batteries specialized in the production of Lithium batteries.
Includes LiSOCL2 battery, LiMnO2 battery, Ultra thin cell and custom-designed battery packs.
We welcome to OEM and ODM orders.Thanks.

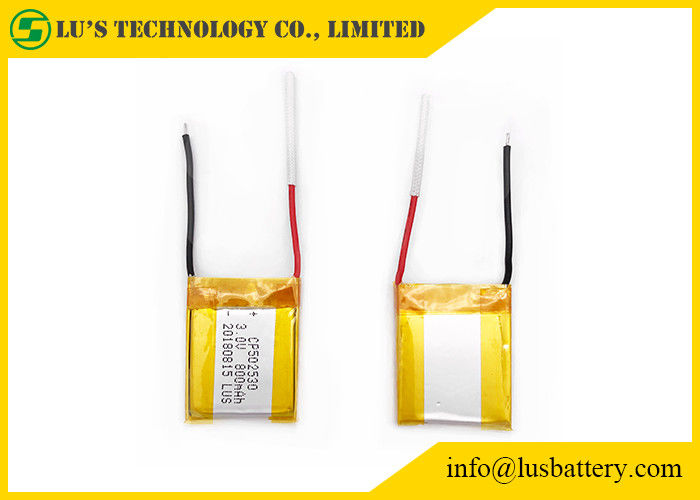

CP502530 800mah Ultra Thin Lithium Polymer Battery High Performance:
1. Could you tell me your main product?
Re: Our main production is LiMnO2 flexible battery(ultra thin cell), LiSoCl2 battery and Rechargeable battery.
2. What is your MOQ?
Re: For available items NO MOQ
For OEM designs MOQ is 500 pcs per item
3. Could we do our logo customized ?
Re: Yes,we could do your printing and also accept original design service.
4. What is sample Date?
Re: we will send out within 1 week after details confirmation.
5. What is the Order Deliver Date?
Re: For available items in our stock is 3-5 days is ok.
For OEM designs need 15-25 days
6. Could you tell me your payment item?
Payment Item:
1: T/T, credit card / Visa / Mastercard / Alipay
2: 30% deposit advance,70% balance paid before ship out.
7. What is your After-sell service.
Re: When you find the product are damaged ,pls take photos and send to the salesman you are talking with. We will handle this and give you a satisfied solution method.
8. Can we set order by alibaba online?
Re: Of course you can and we strongly support our customer to set orders on line. No matter you set order online or off-line, you get the quality guarantee by our company.
9. Could we visit you factory before setting orders.
Re: Yes. You can visit our factory when you are convenience. We are sure that you will trust us after your visiting. We will pick you up if you need.
