Place of Origin:
China
Brand Name:
OEM
Model Number:
3V Flexible Lithium Primary Cell CP255047
Video
Video

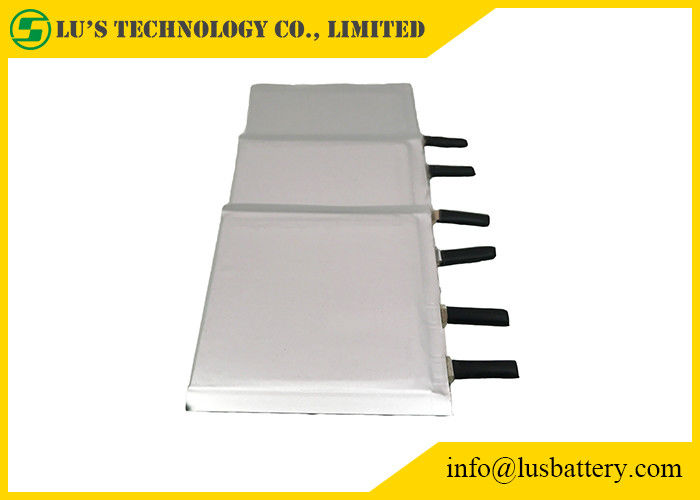

CP255047 Primary not rechargeable Lithium Battery 3V Ultrathin cell 1250mah For Credit Card Flexible Lithium Battery
CP255047 not rechargeable Battery 3V 1250mah ultra thin cell 255047 Highest Quality
For Credit Card Flexible Lithium Battery Cp255047 1250mAh 3V flexible thin cell
| Type | Ultra Thin cell |
| Model | CP255047 |
| Voltage | 3.0V |
| Capacity | 1250mah |
| Size | Max.2.6*48*50.5mm |
| Weight | 9.5g |
| Operating Temperature | -40℃~+70℃ |
| Shelf life | 10 years |
| Terminals | Can be customized |
| OEM and ODM | Welcome |
Main Characteristics:
a. High and stable working voltage
b. Wide operating temperature range
c. Longer storage life and higher reliability
d. High safety and non-pollution
Application Field:
RFID BATTERY / ID card battery / Payment system battery etc
a. Civilian field: AMR of common instruments and CMOS circuit boards
b. Various smart meters: smart electric meters, water meters, heat meters and gas meters
c. Memories and standby power supplies: memory backup, clock power supplies and data backup power supplies
d. Radio alarm equipment/sensors: smoke alarms and temperature monitors
e. Remote monitoring systems: positioning devices and marine telemetry systems
f. Automotive electronics: tire pressure monitoring systems
g. Industrial field: automation instrumentations and equipment, oil wells, mines, medical equipment, burglar alarm, wireless communication, sea survival, etc.
h. Modern national defense and military fields: aviation, spaceflight, marine electronics, air-sea-land weapons, etc.
LiSOCL2 energy type and power type:
ER10250, ER10280,ER10450, ER13150, ER13170, ER14250, ER14335, ER14505, ER17335, ER17505, ER18505, ER20505,ER26500, ER34615, ER341245,ER9V and more ...
LiMnO2 energy type and power type:
CR10250, CR10450, CR14335, CR14505, CR17285, CR17335, CR17450, CR17505, CR10450, CR18505, CR20505, CR26500, CR26600, CR34615, CR123A, CR2,CR9V...
Soft pack LimnO2 battery type:
CP042922 CP042345 CP0453730 CP263638 CP265040 CP092142 CP104848 CP142828 CP153030 CP155050 CP2012120 CP202850
CP224035 CP223045 CP224147 CP265045 CP264558 CP305050
CP401720 CP401922 CP405050 CP451728 CP502525 CP502440
CP503742 CP504644 CP505050 CP602026 CP701725 CP783970
CP7839109 CP802060 CP952434 CP1003742 CP383040 CR9V
LU's battery is an experienced supplier of batteries specialized in the production of Lithium batteries.
Includes LiSOCL2 battery, LiMnO2 battery,Ultra thin battery and custom-designed battery packs.
We welcome to OEM and ODM orders.Thanks.
3V UltraThin Cell Cp255047 Soft lithium battery 1250mah Cp 255047:
Thin cell list:
| Model Size | Nominal Voltage | Nominal Capacity | Max Continuous Discharge Current | Max Pulse Discharge Current | Dimension | ||
| T(mm) | W(mm) | H(mm) | |||||
| CP042345 | 3V | 35mAh | 2mA | 4mA | 0.45 | 23±0.5 | 45±0.5 |
| CP042529 | 3V | 22mAh | 2mA | 4mA | 0.45 | 25±0.5 | 29±0.5 |
| CP042722 | 3V | 15 mAh | 1mA | 2mA | 0.45 | 27±0.5 | 22±0.5 |
| CP042922 | 3V | 15mAh | 1mA | 2mA | 0.41 | 29 | 23 |
| CP044040 | 3V | 50mAh | 5mA | 10mA | 0.45 | 40 | 40±0.5 |
| CP044560 | 3V | 100mAh | 10mA | 20mA | 0.45 | 45.5 | 60 |
| CP052039 | 3V | 25 mAh | 2 mA | 4 mA | 0.5 | 20 | 39 |
| CP052722 | 3V | 22mAh | 1mA | 2mA | 0.5 | 27 | 22 |
| CP053050 | 3V | 80mAh | 15mA | 30mA | 0.5 | 30 | 50 |
| CP054248 | 3V | 100mAh | 20mA | 40mA | 0.5 | 48.5±0.5 | 48.5±0.5 |
| CP064348 | 3V | 200mAh | 20mA | 50mA | 0.6 | 48.5±0.5 | 48.5±0.5 |
| CP073545 | 3V | 160mAh | 10mA | 20mA | 0.7 | 35 | 45 |
| CP082922 | 3V | 50 mAh | 20mA | 80mA | 0.8 | 29 | 22 |
| CP084248 | 3V | 320mAh | 20mA | 50mA | 0.8 | 48.5±0.5 | 48.5±0.5 |
| CP102015 | 3V | 30mAh | 2mA | 5mA | 1 | 20±0.5 | 15±0.5 |
| CP104248 | 3V | 420mAh | 100mA | 200mA | 1.05 | 49 | 49 |
| CP105050 | 3V | 420mAh | 100mA | 200mA | 1.05 | 50 | 50 |
| CP105075 | 3V | 450mAh | 200mA | 300mA | 1.05 | 45.2 | 75 |
| CP105256 | 3V | 500mAh | 30mA | 50mA | 1.05 | 52 | 56 |
| CP124444 | 3V | 420 mAh | 75 mA | 150mA | 1.2 | 44 | 44 |
| CP142828 | 3V | 160mAh | 25mA | 50mA | 1.4 | 28±1.0 | 28±1.0 |
| CP142828H | 3V | 140mAh | 50mA | 100mA | 1.4 | 28±1.0 | 28±1.0 |
| CP151220 | 3V | 35mAh | 5mA | 10mA | 1.5 | 12±0.5 | 20±0.5 |
| CP153030 | 3V | 170mAh | 40mA | 80mA | 1.5 | 30 | 30 |
| CP153030H | 3V | 140mAh | 50mA | 100mA | 1.5 | 30 | 30 |
| CP154580 | 3V | 1000mAh | 150mA | 300mA | 1.5 | 45±0.5 | 80 |
| CP151015 | 3V | 18mAh | 0.5mA | 1mA | 1.5 | 10±0.5 | 15±0.5 |
| CP161220H | 3V | 20mAh | 16mA | 30mA | 1.6 | 12±0.5 | 20±0.5 |
| CP161230H | 3V | 45mAh | 16mA | 30mA | 1.6 | 12±0.5 | 30±0.5 |
| CP162235 | 3V | 160mAh | 30mA | 50mA | 1.6 | 22 | 35 |
| CP164548 | 3V | 700mAh | 50mA | 100mA | 1.6 | 45.5 | 48.5 |
| CP171234 | 3V | 140mAh | 20mA | 50mA | 3.6 | 35 | 13.5 |
| CP181234 | 3V | 125mAh | 25mA | 50mA | 1.8 | 12±0.5 | 34 |
| CP183123 | 3V | 150mAh | 45mA | 75mA | 1.8 | ||
| CP201335 | 3V | 120mAh | 25mA | 50mA | 2 | 10 | 35 |
| CP201535 | 3V | 120mAh | 30mA | 60mA | 1.9 | 14 | 35 |
| CP202128 | 3V | 130mAh | 20mA | 40mA | 2 | 21±0.5 | 28±0.5 |
| CP202540 | 3V | 350mAh | 75mA | 150mA | 2 | 25±0.5 | 40±0.5 |
| CP202721 | 3V | 140mAh | 40mA | 80mA | 2 | 27±0.5 | 21±0.5 |
| CP203030 | 3V | 230mAh | 50mA | 100mA | 2 | 30 | 30 |
| CP203034 | 3V | 275 mAh | 50 mA | 100mA | 2 | 30 | 34 |
| CP203040 | 3V | 210mAh/380MAH | 100mA | 200mA | 2 | 30±0.5 | 40±0.5 |
| CP203242 | 3V | 375mAh | 75mA | 150mA | 2.1 | 32 | 42 |
| CP204517 | 3V | 210mAh | 20mA | 50mA | 2 | 45±0.5 | 17±0.5 |
| CP204547 | 3V | 750mAh | 50mA | 100mA | 2 | 45±0.5 | 47±0.5 |
| CP222920 | 3V | 150mAh | 45mA | 75mA | 2.2 | ||
| CP224248 | 3V | 850mAh | 100mA | 200mA | 2.2 | 45±0.5 | 48.5±0.5 |
| CP225050 | 3V | 1000mAh | 200mA | 400mA | 2.2 | 50 | 50 |
| CP225080 | 3V | 1700mAh | 200mA | 400mA | 2.2 | 50 | 80 |
| CP242030 | 3V | 230mAh | 50mA | 100mA | 2.4 | 20±0.5 | 30±0.5 |
| CP255050 | 3V | 1200mAh | 150mA | 300mA | 2.5 | 50 | 50 |
| CP251525 | 3V | 150mAh | 40mA | 80mA | 2.5 | 15±0.5 | 25±0.5 |
| CP251626 | 3V | 150mAh | 60mA | 150mA | 2.5 | 16±0.5 | 26.5±0.5 |
| CP252525 | 3V | 250mAh | 30mA | 60mA | 2.5 | 25.5 | 25.5 |
| CP255047 | 3V | 1250mAh | 150mA | 300mA | 2.5 | 50 | 47.5±0.5 |
| CP255080 | 3V | 2050mAh | 300mA | 600mA | 2.5 | 50 | 80 |
| CP301415 | 3V | 85mAh | 30mA | 60mA | 3 | 14±0.5 | 15±0.5 |
| CP301919-2S | 6V | 150mAh | 50 mA | 100mA | 6.1 | 19.5 | 19.5 |
| CP302525 | 3V | 350mAh | 75 mA | 150 mA | 3 | 25 | 25 |
| CP304580 | 3V | 2500mAh | 200mA | 500mA | 3 | 45 | 80 |
| CP321626 | 3V | 250mAh | 50mA | 100mA | 6.1 | 19.5 | 19.5 |
| CP334728 | 3V | 700mAh | 100mA | 200mA | 3.5 | 47.5 | 28.0±0.5 |
| CP352440 | 3V | 750mAh | 100mA | 300mA | 3.5 | 24.5 | 41 |
| CP355050 | 3V | 2000mAh | 500mA | 1000mA | 3.5 | 50 | 50 |
| CP402020 | 3V | 275mAh | 50mA | 100mA | 4 | 20±0.5 | 20±0.5 |
| CP402424H | 3V | 400mAh | 100mA | 300mA | 4 | 24 | 24 |
| CP403030 | 3V | 550mAh | 75mA | 150mA | 4 | 30 | 30 |
| CP453450 | 3V | 1700mAh | 300mA | 600mA | 4.5 | 33±0.5 | 49±0.5 |
| CP501525 | 3V | 350mAh | 80mA | 150mA | 5 | 15±0.5 | 25.5±0.5 |
| CP502440 | 3V | 1200mAh | 150mA | 300mA | 5 | 24.5±0.5 | 41 |
| CP502540 | 3V | 1200mAh | 150mA | 300mA | 5.2 | 42 | 25.5 |
| CP503436 | 3V | 1550mAh | 200mA | 500mA | 5.2 | 34.5 | 36 |
| CP503740 | 3V | 1700mAh | 300mA | 600mA | 5 | 37±0.5 | 40±0.5 |
| CP503742 | 3V | 1700mAh | 300mA | 600mA | 5 | 37±0.5 | 42±0.5 |
| CP505050 | 3V | 3000mAh | 500mA | 1500mA | 5.2 | 50.5±0.5 | 50.5±0.5 |
| CP505050-2S | 6V | 3000mAh | 600mA | 1800mA | |||
| CP505050-2P | 3V | 6000mAh | 1000mA | 2000mA | 10.3 | 50.5 | 50.5 |
| CP543537 | 3V | 1500mAh | 200mA | 400mA | 5.6 | 35.5 | 37 |
| CP601919 | 3V | 300mAh | 100mA | 200mA | 6.1 | 19.5 | 19.5 |
| CP603450 | 3V | 2400mAh | 500mA | 1000mA | 6.1 | 34±0.5 | 50±0.5 |
| CP603956 | 3V | 3300mAh | 800mA | 1500mA | 6.1 | 39±0.5 | 56 |
| CP604446-2S | 6V | 3000mAh | 2000mA | 4000mA | 13 | 46 | 44 |
| CP603244 | 3V | 2000mAh | 1000mA | 1500mA | 6.2 | 32,5 | 44.5 |
| CP702242 | 3V | 1500mAh | 200mA | 1200mA | 7 | 22 | 42 |
| CP703028 | 3V | 1000mAh | 200mA | 400mA | 7 | 30 | 28 |
| CP703448 | 3V | 2000mAh | 1000mA | 1500mA | 7 | 34 | 48.5 |
| CP806468 | 3V | 8000mAh | 2000mA | 4000mA | 7.6 | 64 | 68 |
| CP1002045 | 3V | 1800mAh | 900mA | 1500mA | 10.2 | 20.5 | 45.5 |
| CP1002440 | 3V | 2400mAh | 400mA | 800mA | 10.2 | 25.5 | 40.5 |
| CP1002550 | 3V | 2700mAh | 500mA | 1000mA | 10.2 | 25.5 | 50.5 |
| CP4542100 | 3V | 4750mAh | 800mA | 1500mA | 4.5 | 42.5 | 100 |
| CP7839109 | 3V | 9000mAh | 2000mA | 3000mA | 7.9 | 39±0.5 | 109 |
| CP11568125 | 3V | 28000mAh | 4000mA | 6000mA | 12 | 68.5 | 126 |
| CP9V | 9V | 1200mAh | 150mA | 300mA | |||
