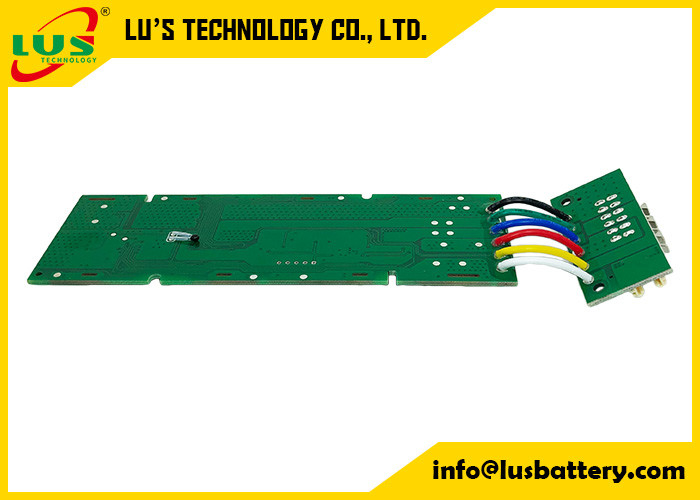

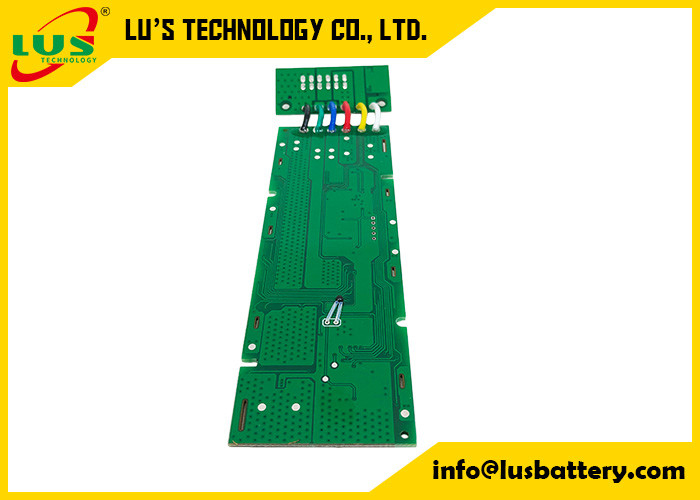

Custom 5-10S battery protection board PCM 25.9V 7S2A 7S8A 7S10A Li-ion BMS PCM Battery for Household Electric Appliance
Product name: Protection Circuit Module
Model No: PCM-5S-10S
For 5S-10S lithium-ion/Lithium polymer/LiFePo4 battery packs
Feature:
1.True lithum battery pack BMS factory
2.Supply OEM/ODM and custom service
3.High quality with smart balance function
4.Wholesale price
5.Environment
6.Fast delivery
Specification:
| No. | PARAMETER | Criterion | |
| 1 | Voltage | Charging voltage | DC:29.4V CC/CV |
| Balance voltage for single cell | 4.125±0.025V | ||
| 2 | Current | Balance current for single cell | 80±5mA |
| Current consumption | ≤35μA | ||
| Maximal continuous charging current | 10A can be customized | ||
| Maximal continuous Discharging current | 30A can be customized | ||
| 3 | Over charge Protection | Over charge detection voltage for single cell | 4.25±0.025V |
| Over charge delay time | 800mS~1200mS | ||
| Over charge release voltage for single cell | 4.15±0.05V | ||
| 4 | Over discharge protection | Over discharge detection voltage for single cell | 2.80±0.03V |
| Over discharge detection delay time | 800~1200mS | ||
| Over discharge release voltage for single cell | 3.0±0.025V | ||
| 5 | Over current protection | Charge over-current protection | 15A±10% can be customized |
| Charge Over-Current Delay | 400~600mS | ||
| Discharge over-current protection1 | 50A±10% can be customized | ||
| Detection delay time1 | 700~1300mS | ||
| Discharge over-current protection2 | 60A±20% can be customized | ||
| Detection delay time2 | 70~130mS | ||
| Release condition | Cut load,Automatic recovery | ||
| 6 | Short protection | Detection condition | Exterior short circuit |
| Detection delay time | 160~240uS | ||
| Release condition | Cut load,Automatic recovery | ||
| 7 | Resistance | Protection circuitry(MOSFET) | ≤2mΩ |
| 8 | Temperature | Operating Temperature Range | -25～+70℃ |
| Storage Temperature Range | -40～+125℃ | ||
| Charge Over Temperature | 48.5℃±5℃ | ||
| Charge Under Temperature | -5℃±5℃ | ||
| Discharge Over Temperature | 70℃±5℃ | ||
| Discharge Under Temperature | -25℃±5℃ | ||
Include contact plate very suitable for battery case ,widely use in power tool field:
Function:
Detect and protect the battery from over-charge ,over-dicharge, over-current short-circuit
,temperature detecting protection and auotmatically voltage balance function .
Build with high end electronic components (High End IC and MOSFET ) ,simple structure
design will let it have more stable quality working performance , Flexible application ( it can be used for less
series battery by leaving some connection pins at empty status ),full set of protection measures let it works well
without any infulence from external unexpected accidents.
