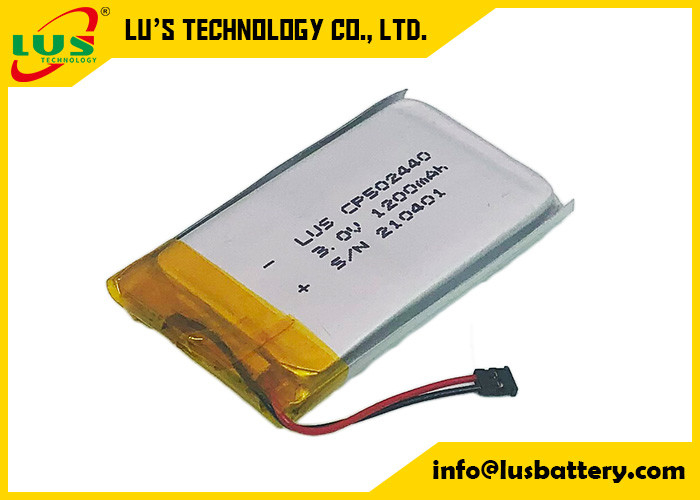

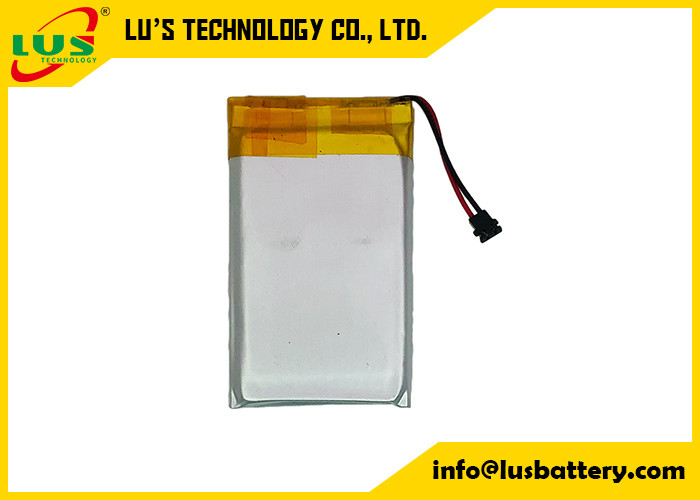

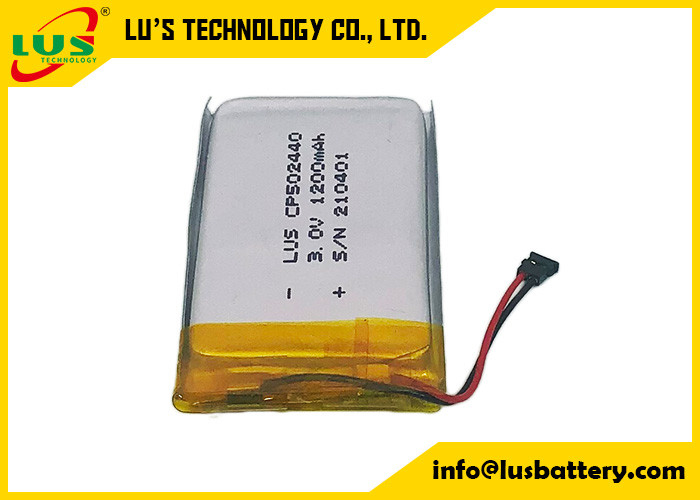

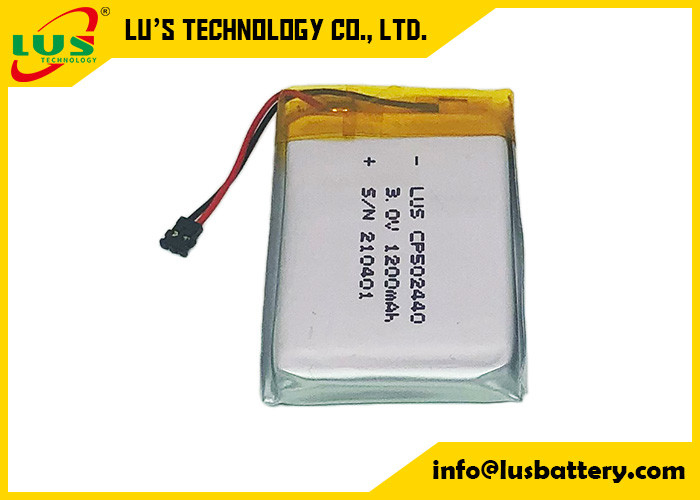

CP502440 3.0V Lithium Pouch Cell Ultrathin 1200mah Li MnO2 Batteries

Flat battery CP502440 3.0V primary lithium ultrathin soft battery 1200mah Li-MnO2 batteries CR502440

Low Self Discharge 1200mAh 5mm Thin Flat Lithium 3.0V CP502440 Lithium Pouch Cell For Electronic Price Labels ESL, Smoke detectors, GPS.

Benefits of CP502440 Lithium Pouch Cell

• High Voltage Response, Stable During Most of the Lifetime of the Application

• Energy Density up to 830Wh/L

• Wide Operating Temperature Range (-40℃~+70℃)

• Low Self-discharge Rate (less than 1% per year after 1 year of storage at +25℃)

How to order:

1. Inquiring
2. Discussion
3. Offer and PI
4. Deposit
5. Final Drawing confirmation.
6. Start production -push production -follow production-finished production.
7. Take a movie or photo of the product and share it with the buyer.
8. Rest Payment
9. Ready to ship out.
10. Send out to carrier/forwarder.
11. Follow the shipping things.
12. After-sales service. ( Life Service support)

Main Characteristics:

a. High and stable working voltage

b. Wide operating temperature range

c. Longer storage life and higher reliability

d. High safety and non-pollution

Application Field:

a. Civilian field: AMR of common instruments and CMOS circuit boards

b. Various smart meters: smart electric meters, water meters, heat meters and gas meters

c. Memories and standby power supplies: memory backup, clock power supplies and data backup power supplies

d. Radio alarm equipment/sensors: smoke alarms and temperature monitors

e. Remote monitoring systems: positioning devices and marine telemetry systems

f. Automotive electronics: tire pressure monitoring systems

g. Industrial field: automation instrumentations and equipment, oil wells, mines, medical equipment, burglar alarm, wireless communication, sea survival, etc.

h. Modern national defense and military fields: aviation, spaceflight, marine electronics, air-sea-land weapons, etc.

Main points of flexible packaging lithium manganese battery

Flexible package structure design, special negative electrode structure design, self sealing

diaphragm: improve battery safety;

Special raw material pretreatment: improve battery storage and comprehensive performance;

Continuous coating technology: improve battery performance, consistency and reliability;

Special electrolyte formula: improve battery environment, adaptability and storage

performance;

HRL coating technology: improve battery safety performance and storage performance;

Battery integrated design technology: to ensure the highest safety performance of batteries,

comprehensive design of the performance;

Large capacity flexible packaging lithium manganese battery technology: improve battery

composition, group consistency;

Hybrid battery technology: both high specific energy and high pulse current performance.

Battery Cell Performance Criteria

Standard testing environment

Unless specifically stated otherwise, tests must be done within one month of delivery and the

number of charging-recharging cycles is fewer than 5. The following is test conditions:

Test conditions:

Ambient Temperature: 25ºC ± 1ºC Ambient Humidity: 45~75%RH

The requirement of measure instrument

(1) The measurement instrument has been certified by a qualified source.

(2) The accuracy of the measuring instrument is less than 0.01mm.

(3) The accuracy of multimeter is at least 0.5%.

(4) The current accuracy of the battery test system is at least ±0.1%, isobarically accuracy is

±0.5%, and timer accuracy is not less than ±0.1%.

(5) The accuracy of the thermometer is at least ±0.5ºC.

 Visual inspection

Not allowing any visual defects which will affect the electronic characteristics, such as leakage

and damage.

Primary Lithium Soft Package Battery 3V CP502440 terminals pins/tabs or connector:
