Product Details:
|
| Nominal Voltage: | 3V | Capacity: | 1300mAh |
|---|---|---|---|
| Diameter: | 17 Mm | Height: | 34.5 Mm |
| Color: | Blue, Green, Yellow, White Or Customized | Terminals: | Depends On You |
| High Light: | photo lithium mno2 battery,CR123A Lithium Manganese Dioxide Battery,1300mah Lithium Mno2 Battery |
||
CR123A Lithium/Manganese Dioxide Battery CR17345 3v 1300mah photo battery with any package by customized
Warning:
－Do not place the battery in heater, washer or high-pressure container.
－Do not use the battery together with different kind of or different type of battery.
－Stop using when the battery become heat, emit smell or appear other abnormality during
use, or storing.
－Do not recharge the battery.
－Do not force-discharge the battery.
－Keep away from the battery when the battery is leakage or emit abnormal smell.
－Wash yourself quickly when the electrolyte infiltrate to your skin or clothes.
－Wash your eyes with clean water quickly and go to hospital for further check if the
electrolyte infiltrate to your eyes.
－Please contact with us in advance If two or more batteries are to be connected in a series
and / or placed in a parallel arrangement.
CR123A Technical parameters
|
Model |
CR123A(CR17345) |
|
Nominal Voltage |
3.0V |
|
Nominal Capacity |
1300mAh@10mA |
|
Max.Discharge Current |
2000mA |
|
Max. Pluse Discharge Current |
3000mA |
|
Discharge Cut-off Voltage |
2.0V |
|
Operating Temperature |
-20℃~ +60℃ |
|
Storage life |
10 years |
|
Cell Weight |
≈17.0g |
|
Self Discharge Rate |
2%/year |
CR17345 battery CR123A Drawing:

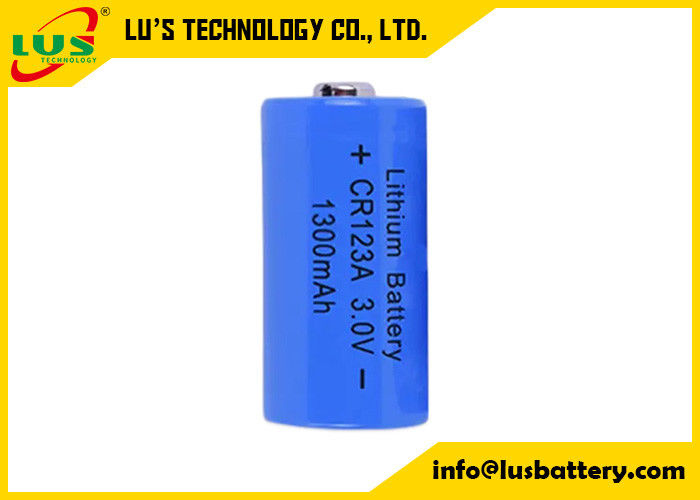

CR 123a Picture:
Hot sale 3v cylindrical LI-MnO2 baterias
| Mode | Voltage (V) | Capacity (mAh) | Discharge Current(mA) | End Voltage(V) | Diameter(mm) | Height (mm) | Weight (g) | Testing Temp.(℃) |
| CR14250 | 3 | 650 | 10 | 2 | 14.5 | 25 | 10 | 23±3 |
| CR14505 | 3 | 1500 | 10 | 2 | 14.5 | 50.5 | 17 | 23±3 |
| CR17335 | 3 | 1500 | 10 | 2 | 17 | 33.5 | 17 | 23±3 |
| CR17450 | 3 | 2000 | 10 | 2 | 17 | 50.5 | 23 | 23±3 |
| CR17505 | 3 | 2500 | 10 | 2 | 17 | 50.5 | 25 | 23±3 |
| CR17345(CR123A) | 3 | 1500 | 10 | 2 | 17 | 34.5 | 17 | 23±3 |
| CR11108(CR1/3N) | 3 | 160 | 2 | 2 | 11.6 | 10.8 | 3.3 | 23±3 |
| CR15H270(CR2) | 3 | 850 | 10 | 2 | 15.6 | 27 | 11 | 23±3 |
| CR-P2 | 6 | 1500 | 10 | 4 | 35x19.5x36 | 38 | 23±3 | |
| 2CR5 | 6 | 1500 | 10 | 4 | 34x45x17 | 38 | 23±3 | |
| CR-V3 | 3 | 3000 | 20 | 2 | 29x14.5x53 | 38 | 23±3 | |
