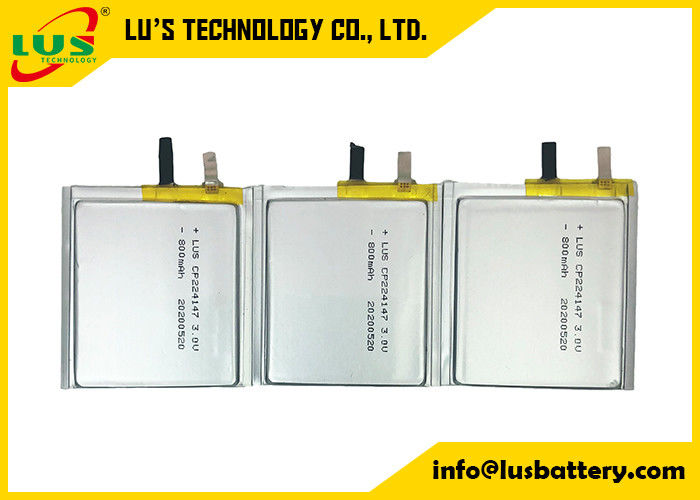

CP224147 Lithium Manganese Dioxide Battery 3V 800mah Thin Cell Lithium Battery

Lithium Manganese dioxide battery 3v 800mah CP224147 spefialised thin cell lithium battery

CP224147 3v flat lithium battery Features:
Long shelf life: self discharge rate less than 2% at 20°C
Wide temperature range: -40°C ~ + 70 °C
Hermetic glass-to-metal sealing
Compliant with IEC86-4 safety standard
Hight and stable operating voltage
Suitable for Applications including:
Portable listening device,security,smart security cards,flat-profile wiresless asset tracking tags,electronic toll collection systems,postal tracking systems, electronic record tracking systems, wiresless tracking of medical records.

Specification:

Application Field:

a. Civilian field: AMR of common instruments and CMOS circuit boards

b. Various smart meters: smart electric meters, water meters, heat meters and gas meters

c. Memories and standby power supplies: memory backup, clock power supplies and data backup power supplies

d. Radio alarm equipment/sensors: smoke alarms and temperature monitors

e. Remote monitoring systems: positioning devices and marine telemetry systems

f. Automotive electronics: tire pressure monitoring systems

g. Industrial field: automation instrumentations and equipment, oil wells, mines, medical equipment, burglar alarm, wireless communication, sea survival, etc.

h. Modern national defense and military fields: aviation, spaceflight, marine electronics, air-sea-land weapons, etc.

Main Characteristics:

a. High and stable working voltage

b. Wide operating temperature range

c. Longer storage life and higher reliability

d. High safety and non-pollution

Main points of flexible packaging lithium manganese battery

Flexible package structure design, special negative electrode structure design, self sealing

diaphragm: improve battery safety;

Special raw material pretreatment: improve battery storage and comprehensive performance;

Continuous coating technology: improve battery performance, consistency and reliability;

Special electrolyte formula: improve battery environment, adaptability and storage

performance;

HRL coating technology: improve battery safety performance and storage performance;

Battery integrated design technology: to ensure the highest safety performance of batteries,

comprehensive design of the performance;

Large capacity flexible packaging lithium manganese battery technology: improve battery

composition, group consistency;

Hybrid battery technology: both high specific energy and high pulse current performance.

Advantage:

Longterm Storage

If the cell is to be stored for 3 months or longer it should be held in a dry and cool environment.

Voltage during storage needs to me maintained between 3.05V~3.28V.

Any issues not covered in this specification should be discussed between the customer and LUS.

Repair period

The repair period is 6 months from the data that the batteries are shipped out from LUS factory (the printing date on the cell).

High and low temperature test
