Product Details:
|
| Type: | Rechargeable Cell | PCM: | Yes, It Needed |
|---|---|---|---|
| NTC: | Yes, It Depends On Your Request | O.C.V: | ≥3.8V |
| InitialImpedance: | ≤160mΩ | Part Number: | 952360 |
| High Light: | 1280mah 3.7 volt lipo batteries,communication equipment 3.7 volt lipo batteries |
||

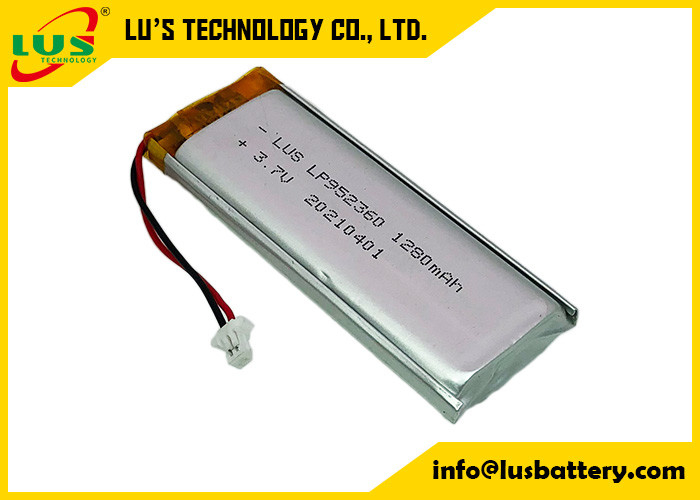

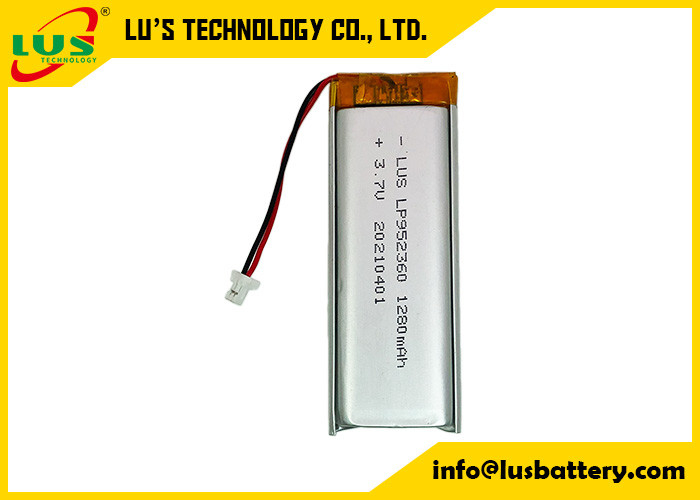

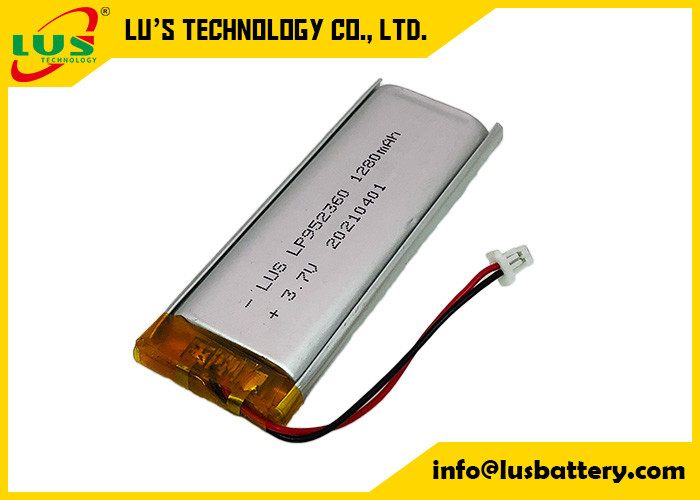

LP952360 Polymer lithium battery for communication equipment use for medical equipment 3.7 volt lipo batterieis 1280mah
Li-Polymer battery Product Advantages:
1) Environmental friendly
2) High density of energy
3) Light weight
4) Low self-discharge
5) Low internal resistance
6) Long cycle life, chargeable up to 500 or 1000 times
7) No memory effect
8) Doesn’t contain Mercury, No fire, No explosion, No leakage
9) Very good and quick charge, capability can be charged to 90% within 10 min.
10) Thickness can be adjusted while width and height keep the same
Major Application:
1)MP3/MP4 player, bluetooth, speakers, car GPS and all possible electronics products
2)Widely applied in Telecommunications, Audio and Video Devices, Information Devices...Etc.
Specifications of cell
| NO. | Items | Specifications |
| 1 |
Rated Capacity
|
1300mAh ,0.2 C discharging |
| 2 |
Minimum Capacity
|
1270mAh ,0.2 C discharging |
| 3 |
Normal Voltage
|
3.7V |
| 4 |
O.C.V
|
≥3.80V |
| 5 |
Charge Ending Voltage
|
4.2V |
| 6 |
Discharge Ending Voltage
|
3.0V
|
| 7 |
Standard charging
|
23±2℃ 0.2C constant current charge to 4.2V, then constant voltage 4.2V charge till charged current declines to 0.02C 23±2℃ 0.2C CC |
| 8 |
Charge current
|
Standard charge:0.2C,Rapid charge:0.5C |
| 9 |
charging Time
|
Standard charge:5.5～6.5 h , Rapid charge:1.5～2.5 h |
| 10 |
Max. Charging Current
|
0.5C (10℃～+45℃)
|
| 11 |
Standard discharging
|
-10℃～+55℃Constant current 0.2 C end voltage3.0V |
| 12 |
Max. Discharging Current
|
1C (0℃～+55℃) |
| 13 |
Operating environment |
Charging: 10℃~45℃max.80%RH |
Appearance
There shall be no such defect as flaw, crack, rust, leakage, which may adversely affect
commercial value of battery.
Standard Test Conditions:
Test should be conducted with new batteries within one week after shipment from our factory
and the cells shall not be cycled more than five times before the test.
Unless otherwise specified, test and measurement shall be done under temperature of 20±5℃
and relative humidity of 45~85%.
If it is judged that the test results are not affected by such conditions, the tests may be
conducted at temperature 15~30℃ and humidity 25~85%RH.

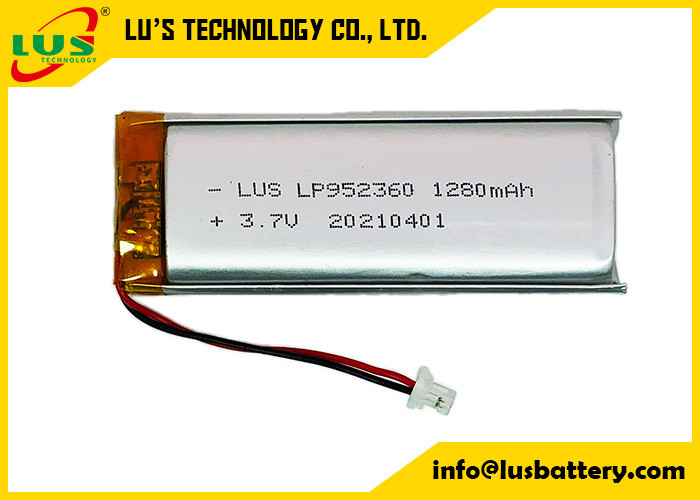

Polymer Lithium Battery 3.7V PL952360:
More rechargeable lithium ion battery list:
| Model | Capacity(mah) | Dimension(mm) | ||
| T±0.1 | W±0.5 | L±0.5 | ||
| 1254 | 60 | 5.4 | 12 | |
| 1040 | 35 | 4.2 | 10 | |
| 1038 | 30 | 3.8 | 10 | |
| 301030 | 70 | 3.0 | 10.0 | 30.5 |
| 301525 | 80 | 3.0 | 15.0 | 25.5 |
| 302020 | 90 | 3.0 | 20.0 | 20.5 |
| 302025 | 110 | 3.0 | 20.0 | 25.5 |
| 302030 | 120 | 3.0 | 20.0 | 30.5 |
| 303048 | 400 | 3.0 | 30.0 | 48.5 |
| 350926 | 60 | 3.0 | 9.0 | 26.5 |
| 380926 | 70 | 3.8 | 9.0 | 26.5 |
| 400808 | 18 | 4.0 | 8.1 | 8.2 |
| 400820 | 40 | 4.0 | 8.3 | 20.5 |
| 400835 | 100 | 4.0 | 8.3 | 35.5 |
| 400838 | 110 | 4.0 | 8.3 | 38.5 |
| 400909 | 25 | 4.0 | 9.1 | 9.2 |
| 400912 | 30 | 4.0 | 9.0 | 12.5 |
| 400930 | 80 | 4.0 | 9.0 | 30.5 |
| 401010 | 25 | 4.0 | 10.0 | 10.5 |
| 401012 | 35 | 4.0 | 10.0 | 12.5 |
| 401015 | 40 | 4.0 | 10.0 | 15.5 |
| 401020 | 55 | 4.0 | 10.0 | 15.5 |
| 401025 | 70 | 4.0 | 10.0 | 25.5 |
| 401030 | 90 | 4.0 | 10.0 | 30.5 |
| 401035 | 110 | 4.0 | 10.0 | 35.5 |
| 401230 | 110 | 4.0 | 12.0 | 30.5 |
| 401235 | 130 | 4.0 | 12.0 | 35.5 |
| 401730 | 150 | 4.0 | 17.0 | 30.5 |
| 402020 | 110 | 4.0 | 20.0 | 20.5 |
| 402025 | 150 | 4.0 | 20.0 | 25.5 |
| 402030 | 200 | 4.0 | 20.0 | 30.5 |
| 402035 | 230 | 4.0 | 20.0 | 35.5 |
| 402050 | 400 | 4.0 | 20.0 | 50.5 |
| 403040 | 400 | 4.0 | 30.0 | 40.5 |
| 403450 | 680 | 4.0 | 24.0 | 50.5 |
| 450833 | 110 | 4.5 | 8.3 | 33.0 |
| 400835 | 110 | 4.0 | 8.3 | 35.0 |
| 450845 | 165 | 4.5 | 8.3 | 45.0 |
| 450909 | 30 | 4.5 | 9.1 | 9.2 |
| 450912 | 35 | 4.5 | 9.0 | 12.5 |
| 500830 | 100 | 5.0 | 8.3 | 30.5 |
| 500843 | 160 | 5.0 | 8.3 | 43.0 |
| 500930 | 110 | 5.0 | 9.1 | 30.5 |
| 500935 | 130 | 5.0 | 9.1 | 35.5 |
| 500945 | 190 | 5.0 | 9.1 | 45.0 |
| 501012 | 43 | 5.0 | 10.0 | 12.5 |
| 501015 | 50 | 5.0 | 10.0 | 15.5 |
| 501030 | 110 | 5.0 | 10.0 | 30.5 |
| 501035 | 150 | 5.0 | 10.0 | 35.5 |
| 501220 | 85 | 5.0 | 12.0 | 20.5 |
| 501225 | 110 | 5.0 | 12.0 | 25.5 |
| 501230 | 120 | 5.0 | 12.0 | 30.5 |
| 501235 | 150 | 5.0 | 12.0 | 35.5 |
| 501240 | 200 | 5.0 | 12.0 | 40.5 |
| 501245 | 250 | 5.0 | 12.0 | 45.5 |
| 501525 | 150 | 5.0 | 15.0 | 25.5 |
| 501535 | 230 | 5.0 | 15.0 | 35.5 |
| 502020 | 150 | 5.0 | 20.0 | 20.5 |
| 502025 | 200 | 5.0 | 20.0 | 25.5 |
| 502030 | 250 | 5.0 | 20.0 | 30.5 |
| 502035 | 320 | 5.0 | 20.0 | 35.5 |
| 502248 | 500 | 5.0 | 22.0 | 48.5 |
| 502530 | 320 | 5.0 | 25.0 | 30.5 |
| 502535 | 400 | 5.0 | 25.0 | 35.5 |
| 502540 | 550 | 5.0 | 25.0 | 40.5 |
| 503030 | 450 | 5.0 | 30.0 | 30.5 |
| 503035 | 500 | 5.0 | 30.0 | 35.5 |
| 503040 | 600 | 5.0 | 30.0 | 40.5 |
| 503048 | 750 | 5.0 | 30.0 | 48.5 |
| 503759 | 1200 | 5.0 | 37.0 | 59.5 |
| 523450 | 1000 | 5.2 | 34.0 | 50.5 |
| 551012 | 50 | 5.5 | 10.0 | 12.5 |
| 551015 | 55 | 5.5 | 10.0 | 15.5 |
| 551145 | 250 | 5.5 | 11.3 | 45.5 |
| 551240 | 230 | 5.5 | 12.0 | 40.5 |
| 552535 | 450 | 5.5 | 10.1 | 35.5 |
| 581013 | 52 | 5.8 | 10.2 | 13.5 |
| 582728 | 400 | 5.8 | 27.2 | 28.5 |
| 601012 | 55 | 6.0 | 10.2 | 12.5 |
| 601015 | 60 | 6.0 | 10.2 | 15.5 |
| 601040 | 200 | 6.0 | 10.2 | 40.5 |
| 601043 | 250 | 6.0 | 10.2 | 43.0 |
| 601220 | 110 | 6.0 | 12.0 | 20.5 |
| 601230 | 180 | 6.0 | 12.0 | 30.5 |
| 601235 | 200 | 6.0 | 12.0 | 35.5 |
| 601435 | 280 | 6.0 | 14.0 | 35.5 |
| 601730 | 250 | 6.0 | 17.0 | 30.5 |
| 602020 | 180 | 6.0 | 20.0 | 20.5 |
| 602025 | 250 | 6.0 | 20.0 | 25.5 |
| 602030 | 300 | 6.0 | 20.0 | 30.5 |
| 602035 | 400 | 6.0 | 20.0 | 35.5 |
| 602040 | 450 | 6.0 | 20.0 | 40.5 |
| 602045 | 500 | 6.0 | 20.0 | 45.5 |
| 602530 | 400 | 6.0 | 25.0 | 30.5 |
| 602535 | 500 | 6.0 | 25.0 | 35.5 |
| 602540 | 600 | 6.0 | 25.0 | 40.5 |
| 602626 | 400 | 6.0 | 26.0 | 26.5 |
| 603030 | 500 | 6.0 | 30.0 | 30.5 |
| 603035 | 600 | 6.0 | 30.0 | 35.5 |
| 603040 | 750 | 6.0 | 30.0 | 40.5 |
| 603048 | 850 | 6.0 | 30.0 | 48.5 |
| 603450 | 1200 | 6.0 | 34.0 | 50.5 |
| 651730 | 300 | 6.8 | 17.0 | 30.5 |
| 681345 | 400 | 6.8 | 13.0 | 45.5 |
| 701230 | 220 | 7.0 | 12.2 | 30.5 |
| 701250 | 400 | 7.0 | 12.2 | 50.5 |
| 701435 | 320 | 7.0 | 14.0 | 35.5 |
| 702020 | 210 | 7.0 | 20.0 | 20.5 |
| 702025 | 300 | 7.0 | 20.0 | 25.5 |
| 702030 | 380 | 7.0 | 20.0 | 30.5 |
| 702035 | 450 | 7.0 | 20.0 | 35.5 |
| 702040 | 500 | 7.0 | 20.0 | 40.5 |
| 702530 | 500 | 7.0 | 25.0 | 30.5 |
| 702535 | 600 | 7.0 | 25.0 | 35.5 |
| 703040 | 800 | 7.0 | 30.0 | 40.5 |
| 703048 | 1100 | 7.0 | 30.0 | 48.5 |
| 751425 | 240 | 7.5 | 14.0 | 25.5 |
| 751535 | 380 | 7.5 | 15.0 | 35.5 |
| 801230 | 250 | 8.0 | 12.5 | 30.5 |
| 801350 | 500 | 8.0 | 13.0 | 50.5 |
| 802025 | 350 | 8.0 | 20.0 | 25.5 |
| 802030 | 420 | 8.0 | 20.0 | 30.5 |
| 802035 | 500 | 8.0 | 20.0 | 35.5 |
| 802040 | 650 | 8.0 | 20.0 | 40.5 |
| 802050 | 800 | 8.0 | 20.0 | 50.5 |
| 802530 | 600 | 8.0 | 25.0 | 30.5 |
| 802535 | 700 | 8.0 | 25.0 | 35.5 |
| 802540 | 800 | 8.0 | 25.0 | 40.5 |
| 803030 | 750 | 8.0 | 30.0 | 30.5 |
| 803035 | 800 | 8.0 | 30.0 | 35.5 |
| 803040 | 900 | 8.0 | 30.0 | 40.5 |
| 803048 | 1200 | 8.0 | 30.0 | 48.5 |
| 803450 | 1500 | 8.0 | 34.0 | 50.5 |
| 902025 | 400 | 9.0 | 20.0 | 25.5 |
| 902030 | 500 | 9.0 | 20.0 | 30.5 |
| 902035 | 600 | 9.0 | 20.0 | 35.5 |
| 902040 | 700 | 9.0 | 20.0 | 40.5 |
| 902535 | 800 | 9.0 | 25.0 | 35.5 |
| 101550 | 800 | 10.0 | 15.0 | 50.5 |
| 102050 | 1000 | 10.0 | 20.0 | 50.5 |
| 102530 | 800 | 10.0 | 25.0 | 30.5 |
| 102540 | 1100 | 10.0 | 25.0 | 40.5 |
| 103040 | 1200 | 10.0 | 30.0 | 40.5 |
| 103048 | 1650 | 10.0 | 30.0 | 48.5 |
| 103450 | 2000 | 10.0 | 34.0 | 50.5 |
