Product Details:
|
| Material: | Limno2 | LOGO: | Customized |
|---|---|---|---|
| Voltage: | 3V | Discharge Capacity: | 800±50 MAh |
| High Light: | oem lithium manganese dioxide battery,850mah lithium manganese dioxide battery,Cr2 Limno2 Photo Battery |
||

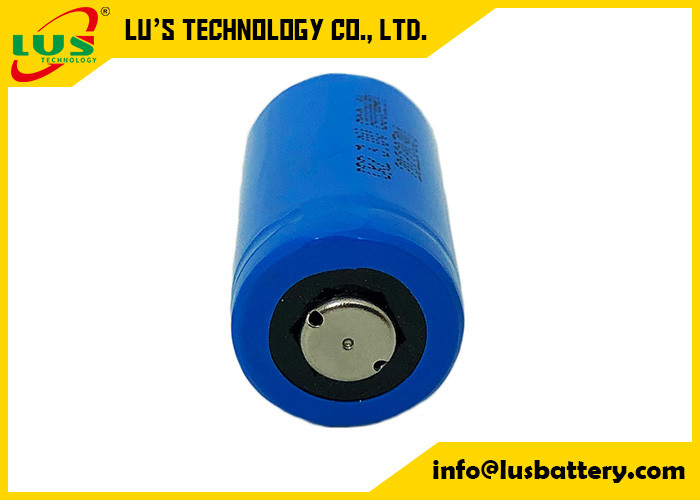

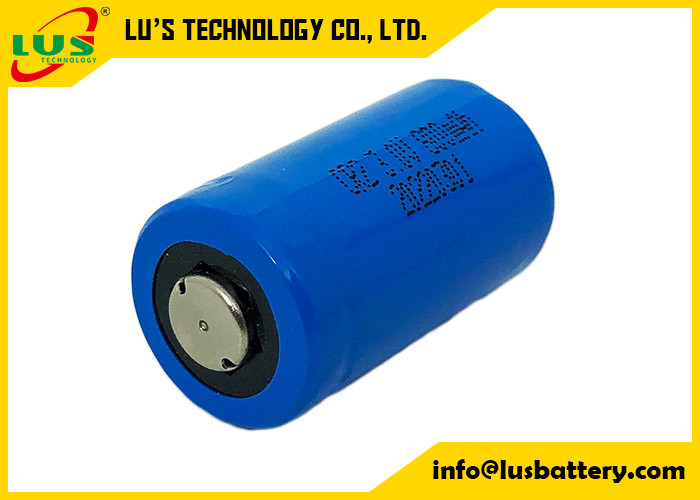

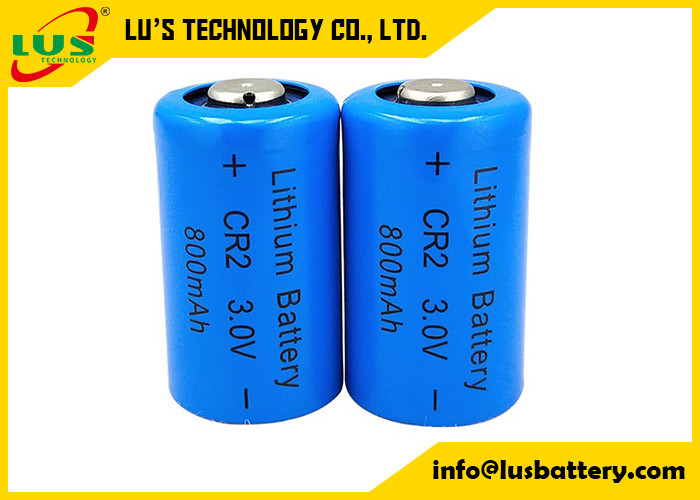

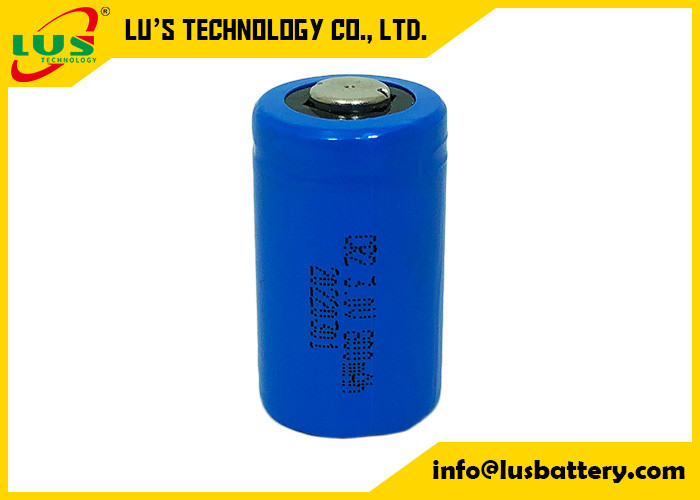

OEM lithium battery CR2 3 volt 850mah Limno2 Photo Battery from LUS batteries
CR2 Battery provides reliable performance for your digital SLR camera, calculator, Tablet PC, and other high tech devices.
Type: Lithium
Replacement for: 1CR2, 5046LC, CR15H270, CR17355, DLCR2, EL1CR2, KCR2, RLCR2-2
Technical parameters
| No. | Items | Characteristics |
| 1 | Nominal Capacity* | 850 mAh |
| 2 |
Discharge capacity (continuously discharge under 10mA,till 2.0V end voltage) |
800±50 mAh |
| 3 | Nominal Voltage | 3V |
| 4 | Operating Temperature range | -40～+85℃ |
| 5 | Max. Pulse Current | 2500 mA |
| 6 | Max. Continuous Discharge Current | 1000 mA |
| 7 | Structures | Manganese dioxide cathode, lithium anode, organic electrolyte, polypropylene separator and stainless steel cell can and cap, etc. |
| 8 | Weight for Reference | About 11g |
Outline figure is shown as follow
| Model |
Max. diameter Ф1 ( mm ) |
Max. diameter Ф2 ( mm ) |
Max. height H1 ( mm ) |
Min. height H2 ( mm ) |
| CR2 | 15.6 | 6. 5 | 27.0 | 0.7 |
Key features:
High and stable operating voltage
Superior drain capability
Low self-discharge rate (less than 3% after 1year of storage at +20 )
Optional stainless steel container for low magnetic and nickle plated steelcontainer for more
safe design
Hermetic glass-to-metal sealing
Notch technology for safety vent is recommended
PTC for finished product is optional
Safety warning
APPLICATION:
Lithium Manganese battery list
| Mode | Voltage (V) | Capacity (mAh) | Discharge Current(mA) | End Voltage(V) | Diameter(mm) | Height (mm) | Weight (g) | Testing Temp.(℃) |
| CR14250 | 3 | 650 | 10 | 2 | 14.5 | 25 | 10 | 23±3 |
| CR14505 | 3 | 1500 | 10 | 2 | 14.5 | 50.5 | 17 | 23±3 |
| CR17335 | 3 | 1500 | 10 | 2 | 17 | 33.5 | 17 | 23±3 |
| CR17450 | 3 | 2000 | 10 | 2 | 17 | 50.5 | 23 | 23±3 |
| CR17505 | 3 | 2500 | 10 | 2 | 17 | 50.5 | 25 | 23±3 |
| CR17345(CR123A) | 3 | 1500 | 10 | 2 | 17 | 34.5 | 17 | 23±3 |
| CR11108(CR1/3N) | 3 | 160 | 2 | 2 | 11.6 | 10.8 | 3.3 | 23±3 |
| CR15H270(CR2) | 3 | 850 | 10 | 2 | 15.6 | 27 | 11 | 23±3 |
| CR-P2 | 6 | 1500 | 10 | 4 | 35x19.5x36 | 38 | 23±3 | |
| 2CR5 | 6 | 1500 | 10 | 4 | 34x45x17 | 38 | 23±3 | |
| CR-V3 | 3 | 3000 | 20 | 2 | 29x14.5x53 | 38 | 23±3 | |
Any terminals can be customized
