Product Details:
|
| Rated Voltage: | 3.6V | Operating Temperature Range: | -55～85℃ |
|---|---|---|---|
| Storage Temperature (recommended): | +30C | Discharge Characteristics: | 23±2℃ |
| LOGO: | Can Be Customized | Terminals: | Pins, Tabs, Wires, Connector |
| High Light: | UL Lithium Thionyl Chloride Battery,6800mah Lithium Thionyl Chloride Battery,lithium thionyl chloride aa battery |
||

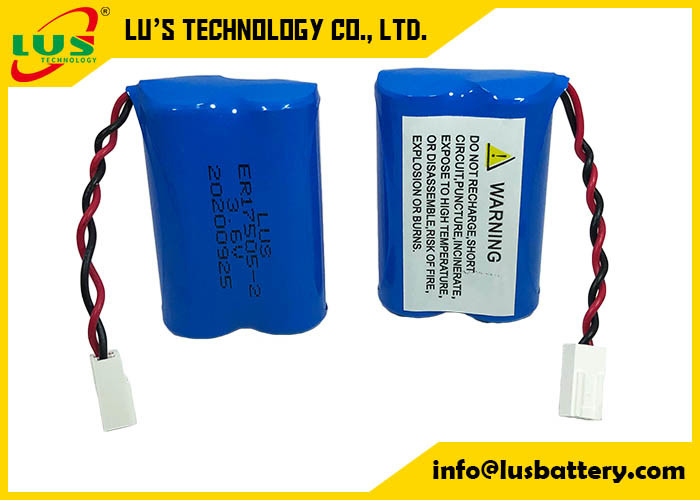

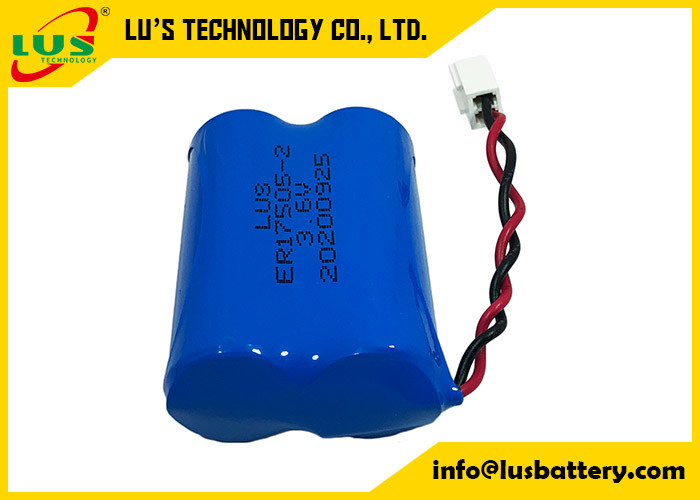

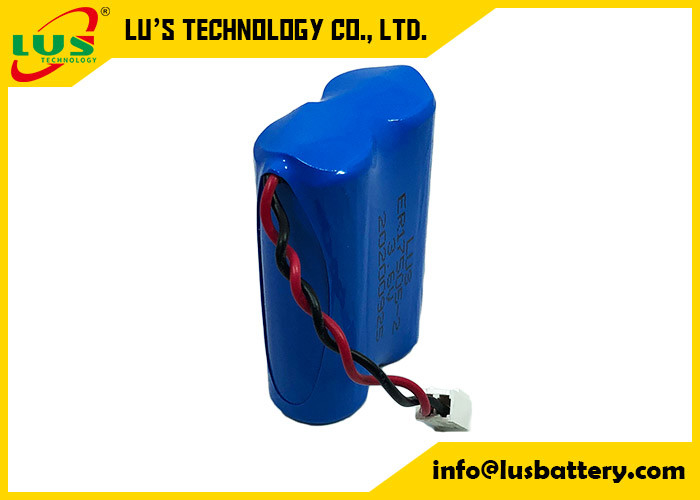

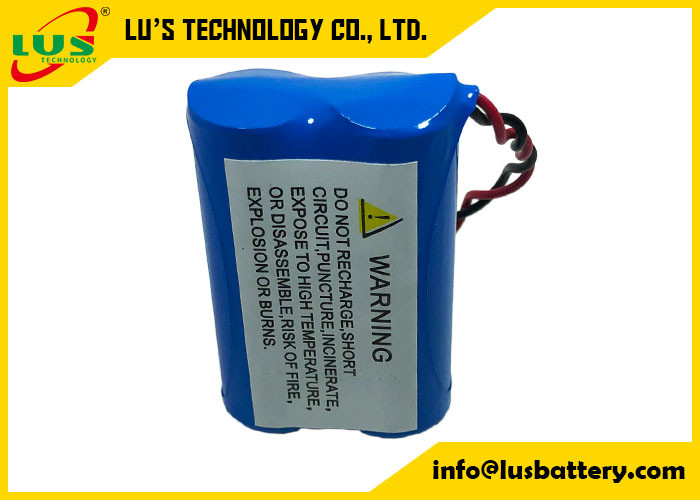

ER17505 3.6V Lithium-thionyl chloride battery pack 6800mah size A lithium battery 2PER17505
About Lisocl2 batteries 3.6V
Battery Chemistry:Lithium-Thionyl Chloride(Li-SOCL2) Batteries;
Non-Rechargeable Cell;
ER Primary Lithium Cylindrical Cell
•High & Stable Operation Voltage : 3.6 Volt
•from 1/2AA to DD format
•High Energy Density
•Extremely low discharge rate less than 2% per year
•Wide operating temperature range -55 °C ~85 °C
•10 year shelf-life
Actual battery lifetime will vary depending on conditions such as discharge current and temperature.
•Supports various battery pack design configurations
ER17505 lithium battery Drawing:
3.6V battery ER17505 Technical data:
| Name | Lithium Thionyl Chloride Battery |
| Model | ER17505 |
| Size | A |
| Nominal capacity (3mA~2V) | 3.4 Ah @ single cell 6800mah @ 2P battery pack |
| Rated voltage | 3.6 V |
| Max constant current of discharge | 120 mA |
| Max discharge current(pulse) | 200 mA |
| Weight | 25 g |
| Operating temperature range | -55℃~+85℃ |
| Storage temperature (recommended) | +30℃ |
Application:
1)With high-operating voltage and stable
2)Performance independent from cell orientation
3)Superior shelf lifespan and reliability: over 10 years at room temperature and self-discharge rate <1% of nominal capacity per year
4)Bobbin structure energy type and best suited for low and discharge current
5)May require depassivation before medium currents
6)Typical values relative to cells stored for one year or less at 30°C
7)Adding the spot, welding wire, welding plug, label are OK
Lithium Battery 3.6v:
| Model | voltage (v) | capacity(mAh) | demension(mm) | Nominal Discharge Current(mA) | weight (g) | |
| Diameter | Height | |||||
| ER10250 | 3.6 | 400 | 10.5 | 25 | 0.5 | 5 |
| ER10280 | 3.6 | 450 | 10.5 | 28 | 0.5 | 6 |
| ER10450 | 3.6 | 700 | 10.5 | 45 | 1 | 8 |
| ER14250 | 3.6 | 1200 | 14.5 | 25.4 | 1 | 10 |
| ER14335 | 3.6 | 1600 | 14.5 | 33.5 | 1 | 12 |
| ER14505 | 3.6 | 2400 | 14.5 | 50.5 | 2 | 19 |
| ER17335 | 3.6 | 1800 | 17.5 | 34 | 3 | 18 |
| ER17505 | 3.6 | 3200 | 17.5 | 50.5 | 3 | 26 |
| ER18505 | 3.6 | 3600 | 18.7 | 50.5 | 3 | 28 |
| ER26500 | 3.6 | 9000 | 26.2 | 50 | 4 | 52 |
| ER34320 | 3.6 | 8000 | 34.2 | 32.5 | 4 | 58 |
| ER34615 | 3.6 | 19000 | 34.2 | 61.5 | 5 | 100 |
| ER341245 | 3.6 | 36000 | 34.2 | 124.5 | 10 | 195 |
| ER14250M | 3.6 | 800 | 14.5 | 25.4 | 2 | 10 |
| ER14335M | 3.6 | 1300 | 14.5 | 33.5 | 3 | 13 |
| ER14505M | 3.6 | 2200 | 14.5 | 50.5 | 4 | 19 |
| ER17505M | 3.6 | 2800 | 17.5 | 50.5 | 5 | 27 |
| ER18505M | 3.6 | 3200 | 18.7 | 50.5 | 5 | 28 |
| ER26500M | 3.6 | 6500 | 26.2 | 50 | 10 | 52 |
| ER34615M | 3.6 | 14000 | 34.2 | 61.5 | 15 | 100 |
| ER13150S | 3.6 | 300 | 13.2 | 15 | 0.5 | 6 |
| ER14250S | 3.6 | 750 | 14.5 | 25.2 | 1 | 10 |
| ER14505S | 3.6 | 1600 | 14.5 | 50.5 | 2 | 20 |
| ER26500S | 3.6 | 4100 | 26.2 | 50 | 4 | 60 |
| ER34615S | 3.6 | 10500 | 34.2 | 61.5 | 5 | 106 |
| ER2450 | 3.6 | 500 | 24.5 | 5.9 | 1 | 9 |
| ER32100 | 3.6 | 1700 | 32.9 | 10 | 1 | 25 |
| ER3265 | 3.6 | 1000 | 32.9 | 6.5 | 1 | 17 |
| ER9V | 10.8 | 1200 | 17*26.3*48.5 | 1 | 30 | |
| EF651615 | 3.6 | 400 | 16.8*15.8*6.8 | 1 | 5 | |
| EF651625 | 3.6 | 750 | 16.8*25.8*6.8 | 1 | 8 | |
| Remark: 1)"M"-Power Type; 2)"S"-High Temperature; | ||||||
