Product Details:
|
| Protect Control: | Yes, It Can Be Customized | Terminals: | Pins/ Wires / Connector Etc |
|---|---|---|---|
| Shape: | Pouch Rechargeable Cell | Package: | PP+Cartons |
| Pringting: | Welcome Customized | Small Order: | Acceptable |
| High Light: | PL403048 Li polymer Battery,Li Polymer Battery 600mah,3.7V Lithium Polymer Battery |
||

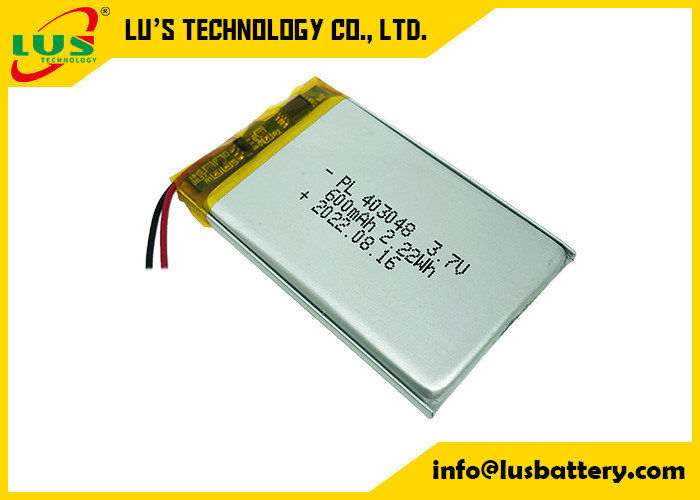

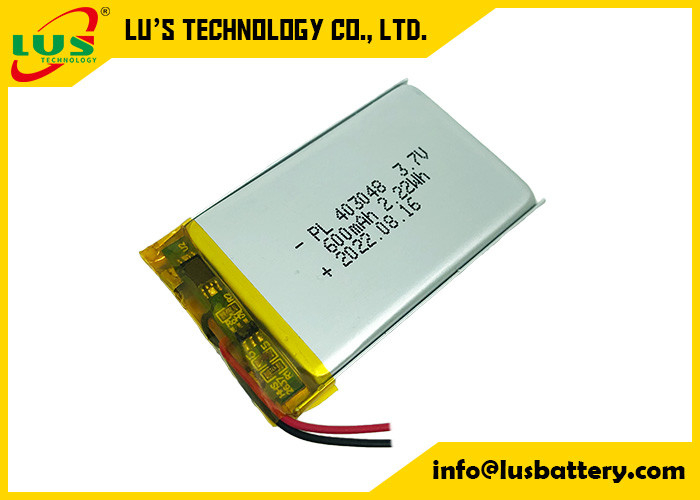

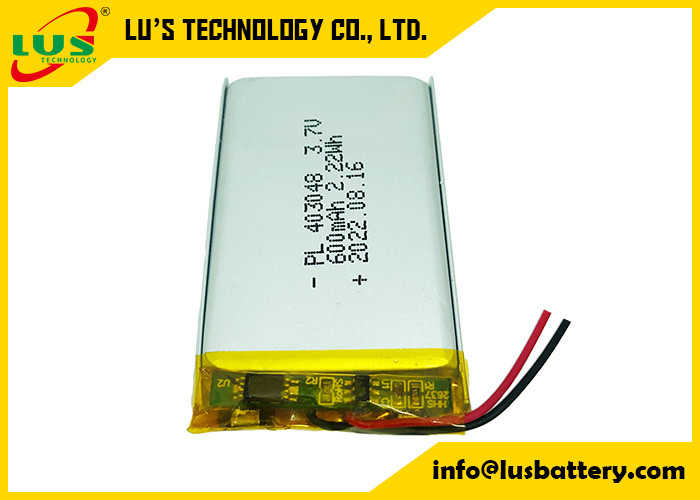

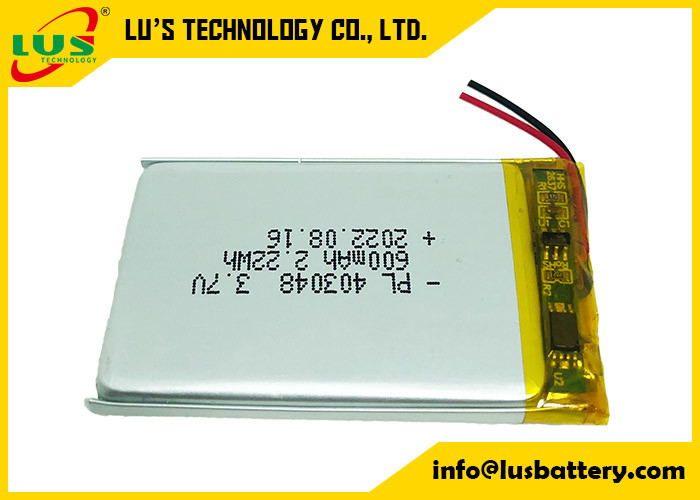

Lp403048 3.7v Flexible Li-polymer Battery 600mah with PCBA protection board for portable device
About Li-Polymer battery
1) Environmental friendly
2) High density of energy
3) Light weight
4) Low self-discharge
5) Low internal resistance
6) Long cycle life, chargeable up to 500 or 1000 times
7) No memory effect
8) Doesn’t contain Mercury, No fire, No explosion, No leakage
9) Very good and quick charge, capability can be charged to 90% within 10 min.
10) Thickness can be adjusted while width and height keep the same
Major Application:
1)MP3/MP4 player, bluetooth, speakers, car GPS and all possible electronics products
2)Widely applied in Telecommunications, Audio and Video Devices, Information Devices...Etc.
| Battery part number | LP403048 | name by the size |
| Voltage | 3.7V | Normal Voltage |
| Capacity | 600mah | 0.2C discharge |
| Dimension | 4*30*48mm | Max, without PCM |
| End voltage | 2.75V | Load Voltage when discharge ended |
| Charge current | 0.25A to 0.5A | CC charge to 4.2 V, then CV charge till current declines to less than 0.01C |
| Charge temperature | 0 to 45 | |
| Discharge current | 0.25A to 0.5A | |
| Discharge temperature | -20 to +60 | |
| Weigth | 10.5g | |
| Terminals | Pins, wires, connector etc | |
| Logo | Customized | |
| OEM and ODM | Welcomed |
Communications equipment: Interphone, PHS phone, Bluetooth earphones
Audio-visual equipment: Digital cameras, Camcorders, Portable DVD, Portable television
Portable Devices: GPS, PMP, PSP, PDA, E-book, Shaver, Portable medical device etc.
Illuminate Devices: Miner lamp, Search light.
Others: RC models, Toys
Lu’s Technology Co., Limited is a Hi-Tech enterprise in China, Which is specialized in the research, design, production and sale of primary lithium battery and rechargeable batteries. Depending on the creative R&D center, the production base and the sale, service net, the company are offering its customers excellent products and services.
More product from LUS battery:
3.7V lithium polymer battery list:
| Model | Capacity | Model | Capacity |
| 102050 | 1000 | 602248 | 650 |
| 102540 | 1100 | 603030 | 550 |
| 103030 | 900 | 603040 | 750 |
| 103035 | 1000 | 603048 | 970 |
| 103040 | 1200 | 603443 | 850 |
| 103048 | 1500 | 603450 | 1200 |
| 103443 | 1500 | 604050 | 1500 |
| 103450 | 1800 | 605080 | 3000 |
| 103450 | 2000 | 606090 | 4000 |
| 103665 | 3000 | 626090 | 5000 |
| 104050 | 2500 | 654060 | 2000 |
| 123555 | 2500 | 702831 | 630 |
| 124065 | 4000 | 703035 | 750 |
| 303450 | 500 | 703040 | 800 |
| 307095 | 2500 | 703048 | 1100 |
| 317090 | 2200 | 703450 | 1300 |
| 327090 | 2000 | 703450 | 1350 |
| 327090 | 2200 | 704268 | 2200 |
| 337093 | 2500 | 752040 | 600 |
| 357095 | 2800 | 755060 | 3000 |
| 383450 | 750 | 755590 | 5000 |
| 402030 | 180/200 | 802025 | 350 |
| 402247 | 450 | 802035 | 500 |
| 454854 | 1500 | 802048 | 800 |
| 454261 | 1500 | 802530 | 550/600 |
| 493964 | 1500 | 802535 | 750 |
| 502030 | 200/250 | 802540 | 850 |
| 502535 | 420 | 803030 | 740 |
| 503035 | 580 | 803035 | 800 |
| 503040 | 600 | 803040 | 1000 |
| 503048 | 730 | 803048 | 1200 |
| 503048 | 750 | 803160 | 1800 |
| 503759 | 1200 | 803440 | 1200 |
| 505050 | 1500 | 803450 | 1500 |
| 505060 | 2000 | 804050 | 2000 |
| 505068 | 2000 | 804558 | 2500 |
| 505573 | 2000 | 805080 | 4000 |
| 505573 | 2500 | 902030 | 500 |
| 523450 | 1000 | 902535 | 800 |
| 602030 | 300 | 902530 | 700 |
| 602530 | 450 | 903035 | 1000 |
| 602535 | 550 | 903048 | 1500 |
| 602040 | 450 | 903450 | 1800 |
| 974058 | 3000 | 903659 | 2500 |
