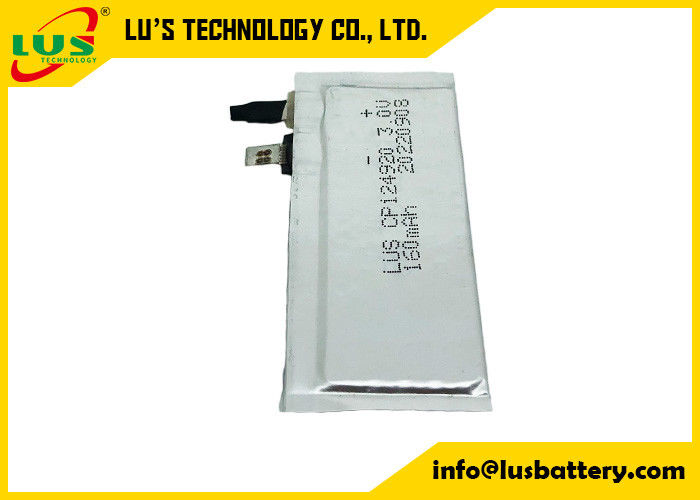

CP124920 LiMnO2 Lithium Battery Flexible 3V 160 Mah Super Thin Cell For Safety Helmet

Lithium-manganese dioxide cells have a metallic lithium anode (the lightest of all the metals) and a solid manganese dioxide cathode, immersed in a non-corrosive, non-toxic organic electrolyte. They deliver a voltage of 3.0 V and are cylindrical, button and polymer in shape.

Focused on the requirements of backup of safety critical electronic data in the metering and security market, LUS offers a complete range of highly reliable Primary Lithium Batteries..

These Ultra Thin Cells have a operating voltage of 3.0V and comes in the range of 15mAh to 10000mAh capacity.

Model:

CP124920 160mah 3V Lithium Battery

Ultra Thin Batteries CP124920mah

Primary Lithium Battery Soft package 3 V

Specification:

Main Characteristics:

a. High and stable working voltage

b. Wide operating temperature range

c. Longer storage life and higher reliability

d. High safety and non-pollution

Application Field:

a. Civilian field: AMR of common instruments and CMOS circuit boards

b. Various smart meters: smart electric meters, water meters, heat meters and gas meters

c. Memories and standby power supplies: memory backup, clock power supplies and data backup power supplies

d. Radio alarm equipment/sensors: smoke alarms and temperature monitors

e. Remote monitoring systems: positioning devices and marine telemetry systems

f. Automotive electronics: tire pressure monitoring systems

g. Industrial field: automation instrumentations and equipment, oil wells, mines, medical equipment, burglar alarm, wireless communication, sea survival, etc.

h. Modern national defense and military fields: aviation, spaceflight, marine electronics, air-sea-land weapons, etc.

Main points of flexible packaging lithium manganese battery

Flexible package structure design, special negative electrode structure design, self sealing

diaphragm: improve battery safety;

Special raw material pretreatment: improve battery storage and comprehensive performance;

Continuous coating technology: improve battery performance, consistency and reliability;

Special electrolyte formula: improve battery environment, adaptability and storage

performance;

HRL coating technology: improve battery safety performance and storage performance;

Battery integrated design technology: to ensure the highest safety performance of batteries,

comprehensive design of the performance;

Large capacity flexible packaging lithium manganese battery technology: improve battery

composition, group consistency;

Hybrid battery technology: both high specific energy and high pulse current performance.

Battery Cell Performance Criteria

Standard testing environment

Unless specifically stated otherwise, tests must be done within one month of delivery and the

number of charging-recharging cycles is fewer than 5. The following is test conditions:

Test conditions:

Ambient Temperature: 25ºC ± 1ºC Ambient Humidity: 45~75%RH

The requirement of measure instrument

(1) The measurement instrument has been certified by a qualified source.

(2) The accuracy of the measuring instrument is less than 0.01mm.

(3) The accuracy of multimeter is at least 0.5%.

(4) The current accuracy of the battery test system is at least ±0.1%, isobarically accuracy is

±0.5%, and timer accuracy is not less than ±0.1%.

(5) The accuracy of the thermometer is at least ±0.5ºC.

 Visual inspection

Not allowing any visual defects which will affect the electronic characteristics, such as leakage

and damage.
