Place of Origin:
China
Brand Name:
OEM
Certification:
UL
Model Number:
CP224147 flat battery pack cp224248
Video
Video

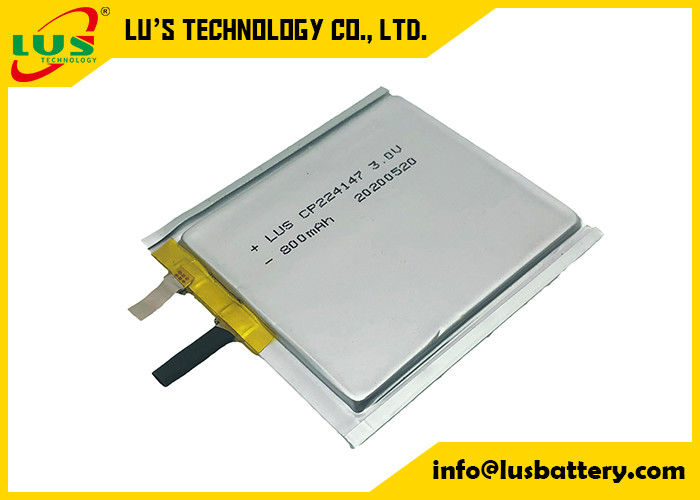

800mah 3.0V Li/MnO2 ultra-thin film batteries CP224147 CP224248 CP244550 CP254550 CP244649
These thin batteries use same chemistry as CR series coin cells but is packed in a soft polymer foil package same as used in Lithium Polymer batteries.
Not rechargeable cell with a discharge Cut-off Voltage 2.0v and Nominal Capacity Typ:800mAh@1mA Discharge
When shipping, the voltage without load is between3.10V and 3.25V.
Storage life 10 years Relative humidity 45~35%RH Temperature -40 ℃~+35℃
Specification:
| Name | Limno2 batteries 3v ultra thin battery |
| Model | CP224147 |
| Voltage | 3.0V |
| Capacity | 800mah |
| Temperature | -40 to +70 |
| Max discharge current | 500mA |
| Max pluse discharge current | 1200mA |
| Dimension | Max.2.3×45×49mm |
| Weight | 7.5g |
| Storage life | 15 years |
| Terminals | Can be customized |
| OEM&ODM | Welcome |
Application Field:
a. Civilian field: AMR of common instruments and CMOS circuit boards
b. Various smart meters: smart electric meters, water meters, heat meters and gas meters
c. Memories and standby power supplies: memory backup, clock power supplies and data backup power supplies
d. Radio alarm equipment/sensors: smoke alarms and temperature monitors
e. Remote monitoring systems: positioning devices and marine telemetry systems
f. Automotive electronics: tire pressure monitoring systems
g. Industrial field: automation instrumentations and equipment, oil wells, mines, medical equipment, burglar alarm, wireless communication, sea survival, etc.
h. Modern national defense and military fields: aviation, spaceflight, marine electronics, air-sea-land weapons, etc.
Main Characteristics:
a. High and stable working voltage
b. Wide operating temperature range
c. Longer storage life and higher reliability
d. High safety and non-pollution
Main points of flexible packaging lithium manganese battery
Flexible package structure design, special negative electrode structure design, self sealing
diaphragm: improve battery safety;
Special raw material pretreatment: improve battery storage and comprehensive performance;
Continuous coating technology: improve battery performance, consistency and reliability;
Special electrolyte formula: improve battery environment, adaptability and storage
performance;
HRL coating technology: improve battery safety performance and storage performance;
Battery integrated design technology: to ensure the highest safety performance of batteries,
comprehensive design of the performance;
Large capacity flexible packaging lithium manganese battery technology: improve battery
composition, group consistency;
Hybrid battery technology: both high specific energy and high pulse current performance.
Ultra thin cell feature:
Longterm Storage
If the cell is to be stored for 3 months or longer it should be held in a dry and cool environment.
Voltage during storage needs to me maintained between 3.05V~3.28V.
Any issues not covered in this specification should be discussed between the customer and LUS.
Repair period
The repair period is 6 months from the data that the batteries are shipped out from LUS factory (the printing date on the cell).
High and low temperature test
|
No.
|
Item
|
Testing Conditions and Method
|
Standard
|
|
1 |
High Temperature
|
A battery is placed in an oven for 2 hours at 55ºC±2ºC, then discharged at a 1mA current to the termination voltage.
|
Discharge 90 percent of the original capacity. . |
|
2 |
Low Temperature |
A battery is placed in a thermal chamber for 2 hours at -10ºC±2ºC; then discharged at 1mA to the termination voltage.
|
Discharge more than 45 percent of the original capacity. |
