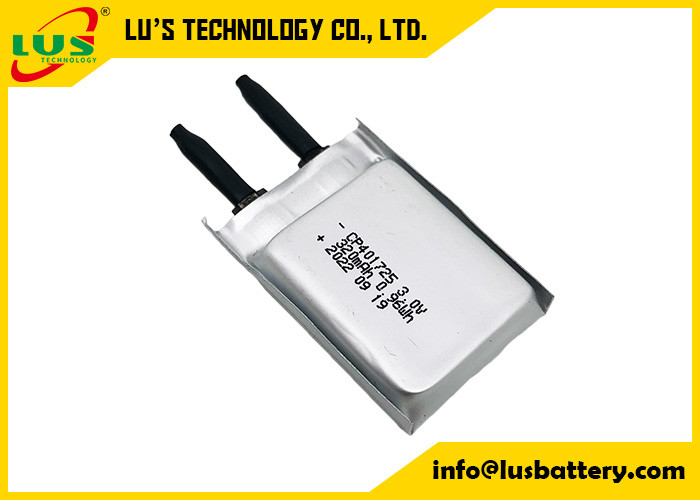

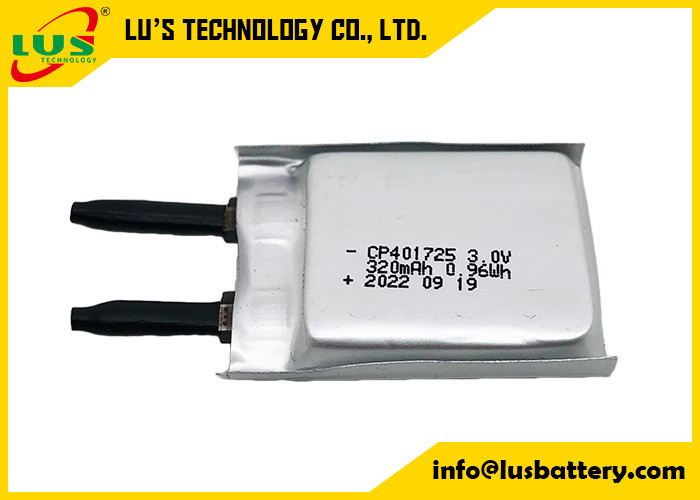

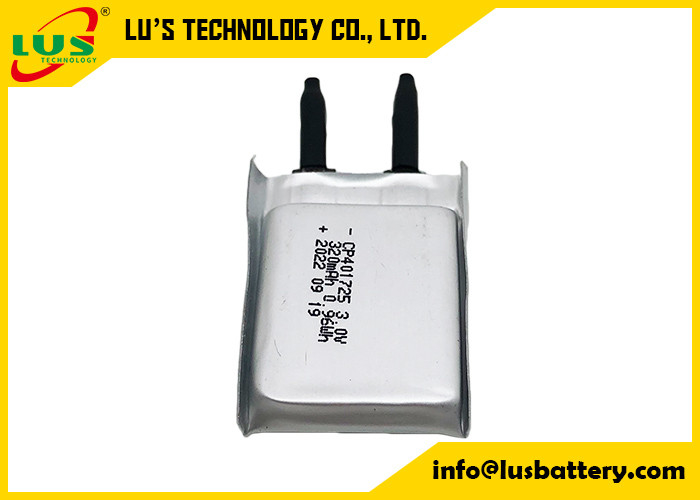

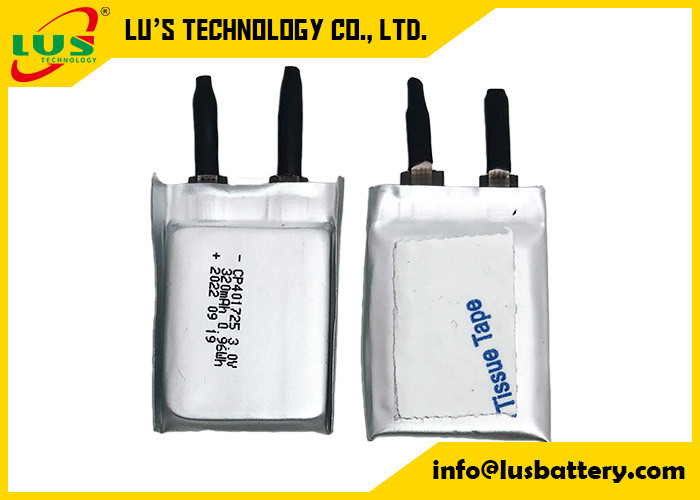

3.0V Thin Flexible Battery CP401725 320mah Ultra Slim Batteires For Smart Cards

Certification
China Lu’s Technology Co., Limited certification
China Lu’s Technology Co., Limited certification
Customer Reviews
Ottimo arrivato pacco integro senza danni ne ammaccature materiale di qualità. Grazie

—— Fabrizio Brunetti

Thanks for big support! They are accepting our small order request. Products is jut fine.

—— Kenjiro Kasai

Items as described. Thanks!

—— Jared Schwartzentruber

Great attention for any query. Batteries take time to customs but when I have them, I have tested them and they work fine. I will buy again, a larger order. I recommend 100%. Thank you so much

—— Boabdil S,Spain

I'm Online Chat Now

3.0V Thin Flexible Battery CP401725 320mah Ultra Slim Batteires For Smart Cards

3.0V Thin Flexible Battery CP401725 320mah Ultra Slim Batteires For Smart Cards
3.0V Thin Flexible Battery CP401725 320mah Ultra Slim Batteires For Smart Cards
3.0V Thin Flexible Battery CP401725 320mah Ultra Slim Batteires For Smart Cards 3.0V Thin Flexible Battery CP401725 320mah Ultra Slim Batteires For Smart Cards 3.0V Thin Flexible Battery CP401725 320mah Ultra Slim Batteires For Smart Cards 3.0V Thin Flexible Battery CP401725 320mah Ultra Slim Batteires For Smart Cards 3.0V Thin Flexible Battery CP401725 320mah Ultra Slim Batteires For Smart Cards

Large Image :  3.0V Thin Flexible Battery CP401725 320mah Ultra Slim Batteires For Smart Cards

Product Details:
Place of Origin: China
Brand Name: OEM
Certification: Meet UL/CB
Model Number: primary battery CP401725 3v
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Bargain
Packaging Details: cartons/tray
Delivery Time: 7-10 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs/days

3.0V Thin Flexible Battery CP401725 320mah Ultra Slim Batteires For Smart Cards

Description
Discharge Cut-off Voltage: 2.0v Self Discharge Rate: 2%/year
Cell Weight: Approx: 2.5 G Cell Type: CP401725
Shipping: Express/Sea Or Air Etc Small Order: Welcomed
High Light:

3.0V Thin Flexible Battery

,

Thin Flexible Battery 320mah

,

Smart Cards Ultra Slim Batteires

3.0V thin flexible battery CP401725 320mah ultra slim batteires widely use for Smart cards

LUS battery provide the special thin cell operating voltage of 3.0V and comes in the range of 15mAh to 10000mAh capacity.

These Cp401725 thin batteries use same chemistry as CR series coin cells Limno2 battery, but in a flexible package like lithium polymer battery ,  but NOT rechargeable ,without PCM, can pack with PTC as customer requies.



Cell fixing
1 The cell should be fixed to the battery pack by its large surface area.
2 There should be no sharp edges at the assembly contact area.
3 Cells must be held firmly in the battery pack; movement is not allowed.
4 The total thickness (the cell thickness plus the thickness of auxiliary materials,e.g.
sponge pad, insulate pad, tape and so on) can't exceed the interior room of the
plastic case, in order to prevent the cell from the damage and safe issue.




Data sheets:

Name ultra thin battery
Model Cp401725
Voltage 3.0V
Capacity 320 mah
Length MAX 28 mm
Width MAX 18mm
Thickness MAX 4.0mm
Temperature -40 to +70
Shelf life 10 years
Terminal Can be customized
OEM and ODM Welcome



CP401725 pouch cell lithium battery drawing:

3.0V Thin Flexible Battery CP401725 320mah Ultra Slim Batteires For Smart Cards 0

Ultra thin cell CP series Limno2 batteries Advantage:



3.0V Thin Flexible Battery CP401725 320mah Ultra Slim Batteires For Smart Cards 1

3.0V Thin Flexible Battery CP401725 320mah Ultra Slim Batteires For Smart Cards 2











LU's battery is an experienced supplier of batteries specialized in the production of Lithium batteries.
Includes LiSOCL2 battery, LiMnO2 battery ,Ultra thin battery and custom-designed battery packs.
We welcome to OEM and ODM orders.Thanks.



Work Shop:

3.0V Thin Flexible Battery CP401725 320mah Ultra Slim Batteires For Smart Cards 3
3.0V Thin Flexible Battery CP401725 320mah Ultra Slim Batteires For Smart Cards 4


LUS Lithium maganese battery :


Model Maximum Appearance dimensions (mm) Weight
(g)
Rated voltage
(v)
Rated Capacity
(mAh)
Standard
Discharge Current (mA)
Max.Current (mA)
Continuous Pulse
CP042922 0.45×29×22 0.4 3.0 15 0.5 10 20
CP042345 0.45×23×45 0.8 3.0 30 0.5 20 35
CP104848 1.2×49×49 3.8 3.0 350 1.0 50 100
CP142828 1.5×29×29 1.5 3.0 100 1.0 15 30
CP153030 1.6×31×31 1.8 3.0 120 1.0 50 100
CP155050 1.6×51×51 6.0 3.0 650 5.0 500 1000
CP2012120 2.0×12×125 5.5 3.0 450 1.0 100 200
CP202850 2.2×28.5×50 3.6 3.0 380 1.0 100 200
CP224035 2.4×41×36 4.8 3.0 580 1.0 150 300
CP223045 2.4×31×46 4.2 3.0 480 1.0 150 300
CP224147 2.3×45×49 7.0 3.0 800 1.0 500 1200
CP265045 2.8×51×46 9.0 3.0 1200 1.0 300 500
CP264558 2.8×46×59 9.5 3.0 1250 5.0 300 500
CP305050 3.2×51×51 12.5 3.0 1600 5.0 600 1000
CP401720 4.2×18×21 2.0 3.0 220 1.0 50 120
CP401922 4.2×20×23 2.6 3.0 300 1.0 100 150
CP405050 4.2×51×51 17.0 3.0 2400 5.0 1000 1500
CP451728 4.5×18×29 3.2 3.0 380 1.0 120 200
CP502525 5.2×26×26 4.5 3.0 600 5.0 200 300
CP502440 5.2×25×42 8.5 3.0 1200 1.0 400 800
CP503742 5.2×38×43 13.0 3.0 1900 5.0 800 1200
CP504644 5.2×47×45 17.0 3.0 2500 5.0 1200 2000
CP505050 5.2×51×51 22.0 3.0 3000 10.0 1500 2000
CP602026 6.2×21×27 4.5 3.0 550 1.0 200 300
CP701725 7.2×18×26 4.5 3.0 520 1.0 150 300
CP783970 7.8×39×70 36.5 3.0 5500 10.0 3000 5000
CP7839109 7.8×39×109 63.0 3.0 10000 10.0 3000 5000
CP802060 8.0×20×60 15.5 3.0 2100 10.0 2000 3000
CP952434 9.7×25×35 11.5 3.0 1700 5.0 500 800
CP1003742 10.2×38×43 26.0 3.0 3900 5.0 1200 2000
