Product Details:
|
| Series: | Rechargeable Polymer Lithium Battery | Terminals: | Pins, Wires Or Connector Can Be Customized |
|---|---|---|---|
| Package: | PP+Cartons | Shipping: | Express, Sea Or Air |
| Door To Door Service: | Yes, Welcome | Part Number: | LP702060 |
| High Light: | PCM Li ion polymer rechargeable battery,LP702060 Li ion polymer rechargeable battery,Rechargeable polymer lithium battery |
||

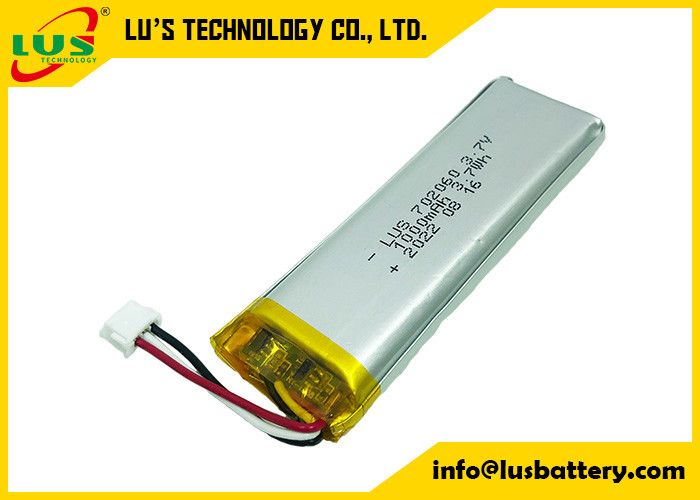

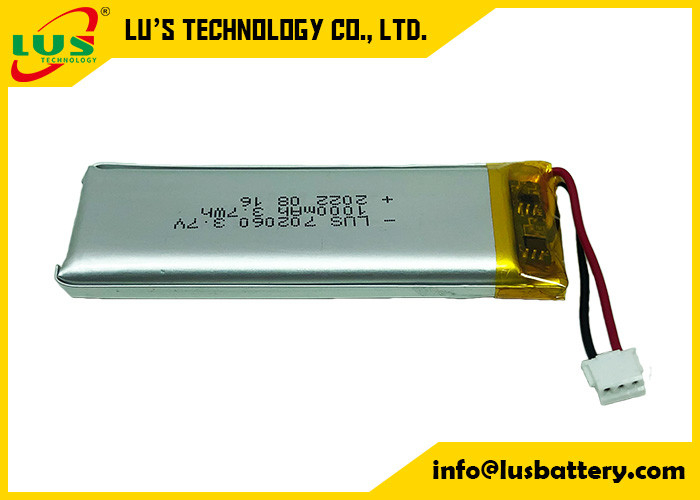

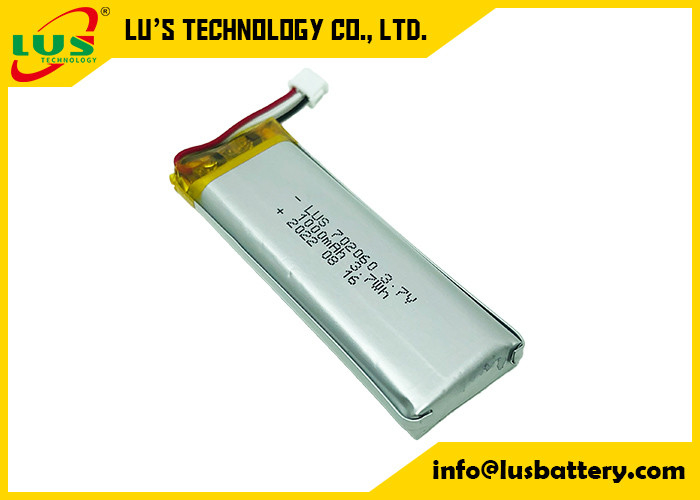

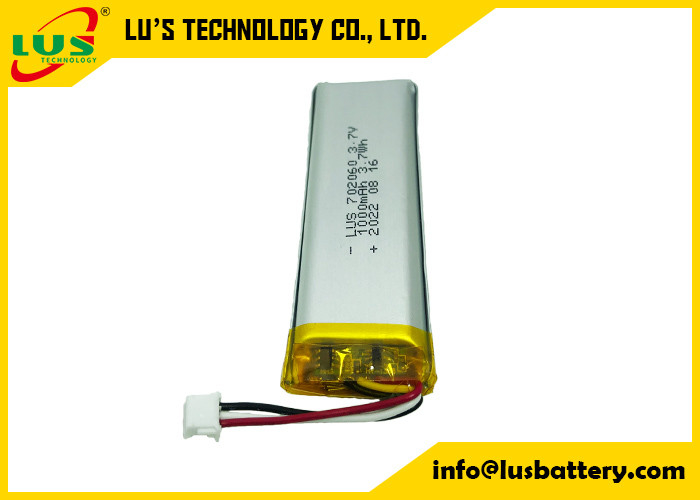

Li-ion polymer rechargeable battery LP702060 3.7V rechargeable 1 Ah with PCM For Smart design
This is a tiny rechargeable Lithium-ion polymer battery that fits perfectly behind the Processor board to power your projects.
The battery has a capacity of 1000mAh at 3.7V, the voltage can range from 4.2V when fully charged to 3.0V when completely discharged.
The battery includes protection circuitry to protect the battery from overcharging or completely discharging.
This battery includes a micro JST SH connector, which is used on Circuits products that support Lithium-ion batteries.
About Lithium Polymer Battery
Lithium polymer battery, also known as polymer lithium battery, is a kind of lithium ion battery of chemical battery.
Compared with other batteries, it has the characteristics of high energy, miniaturization, and light weight.
For the ultra-thin characteristics, it can be made into batteries of different shapes and capacities to meet the needs of some products.
The theoretical minimum thickness can reach 1.0mm.
Lithium polymer battery usually consists of several identical parallel secondary cells to increase the discharge current, or several battery packs in series to increase the available voltage.
|
Type |
Rechargeable |
|
Name |
lithium polymer batteires |
|
Part number |
702060 |
|
Voltage |
3.7v |
|
Capacity |
1000mah |
|
Dimension |
7*20*60.5 mm |
|
Cell weight |
17g |
|
Standard Charging Method |
0.2C CC current charge to 4.2V, then CV charge till current declines to 0.01C |
|
Standard Charging Current |
200mA (0.2C) |
|
Standard Charging Time |
6~7 hours |
|
Rapid Charging Current |
1000 mA |
|
Rapid Charging Time |
2 hours |
|
Max. Discharging Current |
1000 mA |
|
Operating humidity Range |
≤ 90%RH |
Communications equipment: Interphone, PHS phone, Bluetooth earphones
Audio-visual equipment: Digital cameras, Camcorders, Portable DVD, Portable television
Portable Devices: GPS, PMP, PSP, PDA, E-book, Shaver, Portable medical device etc.
Illuminate Devices: Miner lamp, Search light.
Others: RC models, Toys
Lu’s Technology Co., Limited is a Hi-Tech enterprise in China, Which is specialized in the research, design, production and sale of primary lithium battery and rechargeable batteries. Depending on the creative R&D center, the production base and the sale, service net, the company are offering its customers excellent products and services.
More product from LUS battery:
3.7V lithium polymer battery list:
| Model | Capacity | Model | Capacity |
| 102050 | 1000 | 602248 | 650 |
| 102540 | 1100 | 603030 | 550 |
| 103030 | 900 | 603040 | 750 |
| 103035 | 1000 | 603048 | 970 |
| 103040 | 1200 | 603443 | 850 |
| 103048 | 1500 | 603450 | 1200 |
| 103443 | 1500 | 604050 | 1500 |
| 103450 | 1800 | 605080 | 3000 |
| 103450 | 2000 | 606090 | 4000 |
| 103665 | 3000 | 626090 | 5000 |
| 104050 | 2500 | 654060 | 2000 |
| 123555 | 2500 | 702831 | 630 |
| 124065 | 4000 | 703035 | 750 |
| 303450 | 500 | 703040 | 800 |
| 307095 | 2500 | 703048 | 1100 |
| 317090 | 2200 | 703450 | 1300 |
| 327090 | 2000 | 703450 | 1350 |
| 327090 | 2200 | 704268 | 2200 |
| 337093 | 2500 | 752040 | 600 |
| 357095 | 2800 | 755060 | 3000 |
| 383450 | 750 | 755590 | 5000 |
| 402030 | 180/200 | 802025 | 350 |
| 402247 | 450 | 802035 | 500 |
| 454854 | 1500 | 802048 | 800 |
| 454261 | 1500 | 802530 | 550/600 |
| 493964 | 1500 | 802535 | 750 |
| 502030 | 200/250 | 802540 | 850 |
| 502535 | 420 | 803030 | 740 |
| 503035 | 580 | 803035 | 800 |
| 503040 | 600 | 803040 | 1000 |
| 503048 | 730 | 803048 | 1200 |
| 503048 | 750 | 803160 | 1800 |
| 503759 | 1200 | 803440 | 1200 |
| 505050 | 1500 | 803450 | 1500 |
| 505060 | 2000 | 804050 | 2000 |
| 505068 | 2000 | 804558 | 2500 |
| 505573 | 2000 | 805080 | 4000 |
| 505573 | 2500 | 902030 | 500 |
| 523450 | 1000 | 902535 | 800 |
| 602030 | 300 | 902530 | 700 |
| 602530 | 450 | 903035 | 1000 |
| 602535 | 550 | 903048 | 1500 |
| 602040 | 450 | 903450 | 1800 |
| 974058 | 3000 | 903659 | 2500 |
