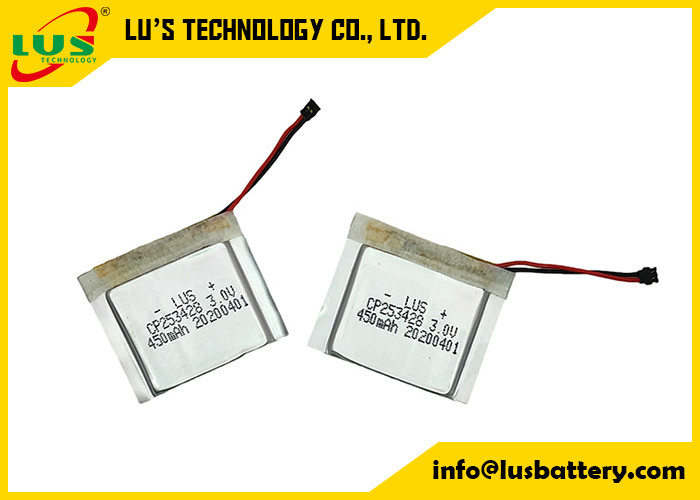

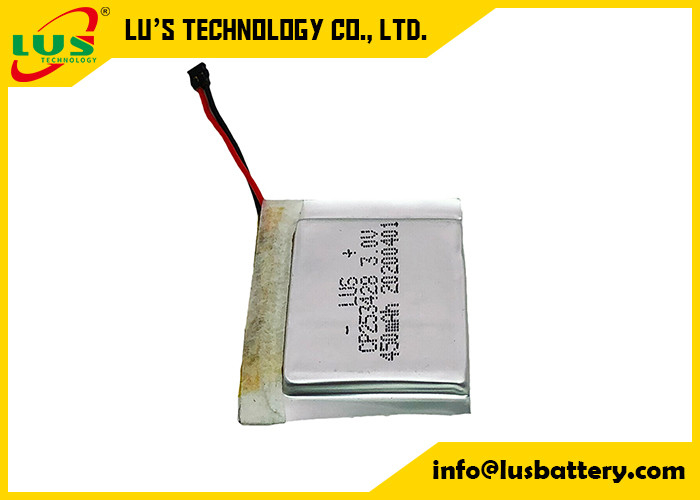

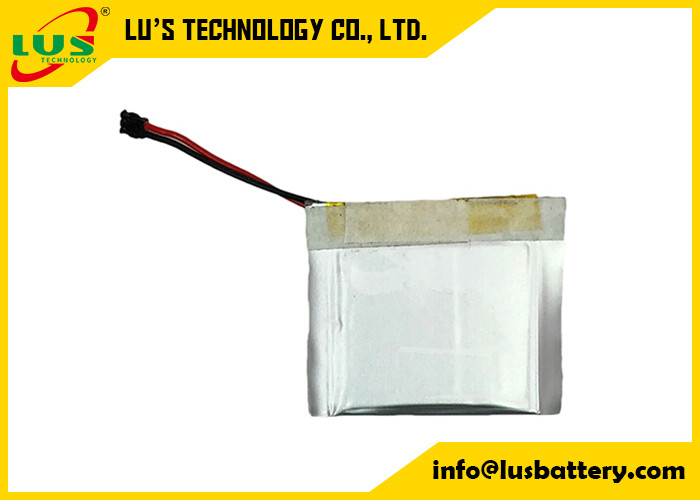

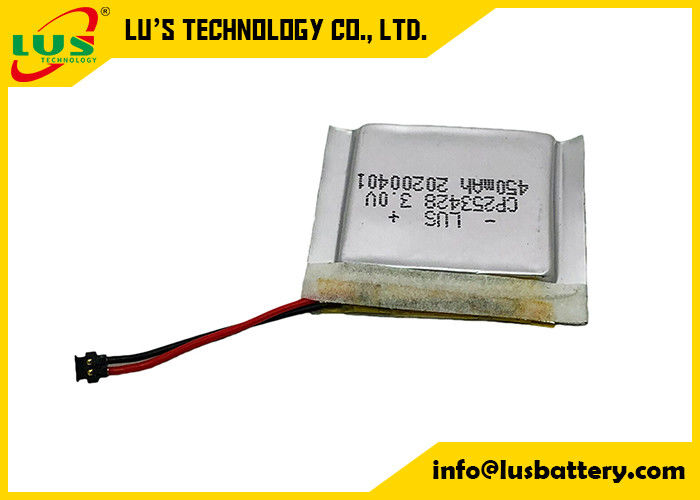

Customized Limno2 Pouch Cell Battery CP253428 3.0 Volt 450mah Primary Li Battery For Tag

Customized Limno2 Pouch Cell Battery CP253428 3.0 Volt 450mah Primary Li Battery For Tag
Customized Limno2 Pouch Cell Battery CP253428 3.0 Volt 450mah Primary Li Battery For Tag
Customized Limno2 Pouch Cell Battery CP253428 3.0 Volt 450mah Primary Li Battery For Tag Customized Limno2 Pouch Cell Battery CP253428 3.0 Volt 450mah Primary Li Battery For Tag Customized Limno2 Pouch Cell Battery CP253428 3.0 Volt 450mah Primary Li Battery For Tag Customized Limno2 Pouch Cell Battery CP253428 3.0 Volt 450mah Primary Li Battery For Tag Customized Limno2 Pouch Cell Battery CP253428 3.0 Volt 450mah Primary Li Battery For Tag

Large Image :  Customized Limno2 Pouch Cell Battery CP253428 3.0 Volt 450mah Primary Li Battery For Tag

Product Details:
Place of Origin: Guangdong,China
Brand Name: OEM
Certification: Meet UL
Model Number: CP253428 flat battery pack
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: Bargain
Packaging Details: Cartons
Delivery Time: 12-15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500000pcs/Month

Customized Limno2 Pouch Cell Battery CP253428 3.0 Volt 450mah Primary Li Battery For Tag

Description
Termianls: Pins, Wires Or Connector Depends On Customer Shelf Life: Above 10 Years
Self Discharge Rate: 2%/year Part Number: CP253428
Capacity: 450mah Voltage: 3v
High Light:

Customized limno2 pouch cell

,

limno2 pouch cell 450mah

,

Tag Primary Li Battery

Customized limno2 pouch cell battery CP253428 3.0 Volt 450mah Primary Li Battery For Tag

LUS battery provide soft-packed Li-MnO2 Battery , have a operating voltage of 3.0V and comes in the range of 15mAh to 10000mAh capacity.

In Flexible Shape Design, Can be Customized Easily as per customer requirement.

Nominal Voltage 3.0 volt, When shipping, the voltage without load is between3.10V and 3.25V.



Max. Continuous Discharge Current 150mA (At 23±2℃ the battery can discharge at least the max continuous discharge value which rated capacity 50% can permit.)
Max. Pulse Discharge Current 250mA (At 23±2℃,battery discharge duration for 3 seconds and stand 27 seconds, it can discharge at least the max pulse discharge value which rated capacity 50% can permit)
Operating Temperature -40℃~ +70℃ (Exceed the operating temperature range could lead to battery operating voltage reduction or even a security risk.)
Assemblage Dimension
Length:28.5mm Max
Width:34.5mm Max
Thickness:2.7mm Max
Data sheets:
Name Li-MnO2 Battery CP253428
Model CP253428
Voltage 3.0V
Capacity 450mah
Dimension Max.2.7*34.5*28.5mm
Temperature -40 to +70
Weight 6g
Max.Continuous Discharge Current (mA) 150mA
Max.Pulse Discharge Current (mA) 250mA
Terminals Can be customized
OEM and ODM Welcome



Customized Limno2 Pouch Cell Battery CP253428 3.0 Volt 450mah Primary Li Battery For Tag 0



Application Field:



RFID BATTERY / ID card battery / Payment system battery etc



Customized Limno2 Pouch Cell Battery CP253428 3.0 Volt 450mah Primary Li Battery For Tag 1







Thin cell model

CP042922 CP042345 CP0453730 CP263638 CP265040 CP092142 CP104848 CP142828 CP153030 CP155050 CP2012120 CP202850

CP224035 CP223045 CP224147 CP265045 CP264558 CP305050

CP401720 CP401922 CP405050 CP451728 CP502525 CP502440

CP503742 CP504644 CP505050 CP602026 CP701725 CP783970

CP7839109 CP802060 CP952434 CP1003742 CP383040 CR9V



Thin Cell Advantage

We can make Li-MnO2 soft battery as thin as 0.4-0.6mm, which is perfect for smart card, security card, RFID ,ETC and more applications.

NO MOQ with fast lead time.

Welcome for any customized.



Product Feature:

Customized Limno2 Pouch Cell Battery CP253428 3.0 Volt 450mah Primary Li Battery For Tag 2

Main points of flexible packaging lithium manganese battery



Flexible package structure design, special negative electrode structure design, self sealing diaphragm: improve battery safety;



Special raw material pretreatment: improve battery storage and comprehensive performance;



Continuous coating technology: improve battery performance, consistency and reliability;



Special electrolyte formula: improve battery environment, adaptability and storage performance;



HRL coating technology: improve battery safety performance and storage performance;



Battery integrated design technology: to ensure the highest safety performance of batteries, comprehensive design of the performance;



Large capacity flexible packaging lithium manganese battery technology: improve battery composition, group consistency;



Hybrid battery technology: both high specific energy and high pulse current performance.
