Product Details:
|
| Shelf Life: | Above 10 Years | Self Discharge Rate: | 2%/year |
|---|---|---|---|
| Part Number: | CP041416 | Capacity: | 4 Mah |
| Voltage: | 3v | Discharge Cut-off Voltage: | 2.0V |
| High Light: | Ultra Thin Limno2 Battery,4mah Limno2 Battery,0.4mm Paper Thin Battery |
||

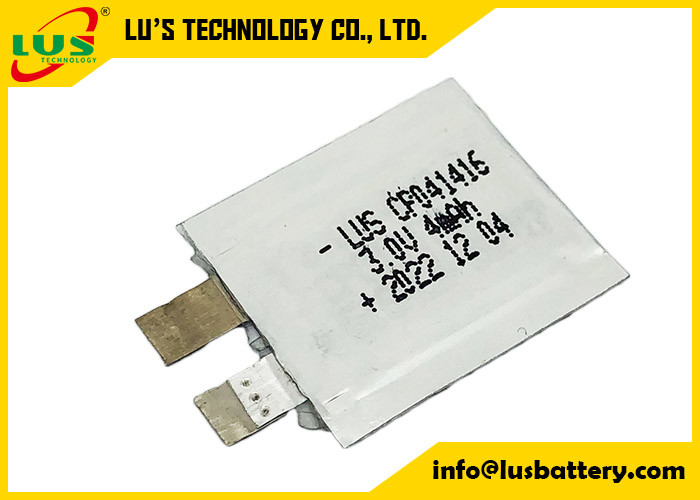

ultra thin limno2 battery CP041416 3v lithium battery 4mah paper battery thickness 0.4mm
Such as cp041515 cp041616 cp041415 cp041615 cp041516 CP051416 cp061416
LUS battery provide soft-packed Li-MnO2 Battery , have a operating voltage of 3.0V and comes in the range of 15mAh to 10000mAh capacity.
In Flexible Shape Design, Can be Customized Easily as per customer requirement.
Nominal Voltage 3.0 volt, When shipping, the voltage without load is between3.10V and 3.25V.
| Name | soft-packed Li-MnO2 Battery |
| Model | CP041416 |
| Voltage | 3.0V |
| Capacity | 4 mah |
| Dimension | Max. 0.45*14.5*16.5mm |
| Temperature | -40 to +70 |
| Weight | 0.4 g |
| Max.Continuous Discharge Current (mA) | 2 mA |
| Max.Pulse Discharge Current (mA) | 4mA |
| Terminals | Can be customized |
| OEM and ODM | Welcome |
Application Field:
RFID BATTERY / ID card battery / Payment system battery etc
CP042922 CP042345 CP0453730 CP263638 CP265040 CP092142 CP104848 CP142828 CP153030 CP155050 CP2012120 CP202850
CP224035 CP223045 CP224147 CP265045 CP264558 CP305050
CP401720 CP401922 CP405050 CP451728 CP502525 CP502440
CP503742 CP504644 CP505050 CP602026 CP701725 CP783970
CP7839109 CP802060 CP952434 CP1003742 CP383040 CR9V
We can make Li-MnO2 soft battery as thin as 0.4-0.6mm, which is perfect for smart card, security card, RFID ,ETC and more applications.
NO MOQ with fast lead time.
Welcome for any customized.
Product Feature:
Main points of flexible packaging lithium manganese battery
Flexible package structure design, special negative electrode structure design, self sealing diaphragm: improve battery safety;
Special raw material pretreatment: improve battery storage and comprehensive performance;
Continuous coating technology: improve battery performance, consistency and reliability;
Special electrolyte formula: improve battery environment, adaptability and storage performance;
HRL coating technology: improve battery safety performance and storage performance;
Battery integrated design technology: to ensure the highest safety performance of batteries, comprehensive design of the performance;
Large capacity flexible packaging lithium manganese battery technology: improve battery composition, group consistency;
Hybrid battery technology: both high specific energy and high pulse current performance.
