Product Details:
|
| Part Number: | CP401725 | Capacity: | 320 Mah |
|---|---|---|---|
| Type: | Flexible Limno2 Cell | Ceritificate: | CB |
| MOQ: | No Request If Have In Stock | Terminals: | Welcome Customized |
| High Light: | CP401725 Polymer Lithium Battery,Flexible Ultra Slim Battery,320mah Ultra Slim Battery |
||

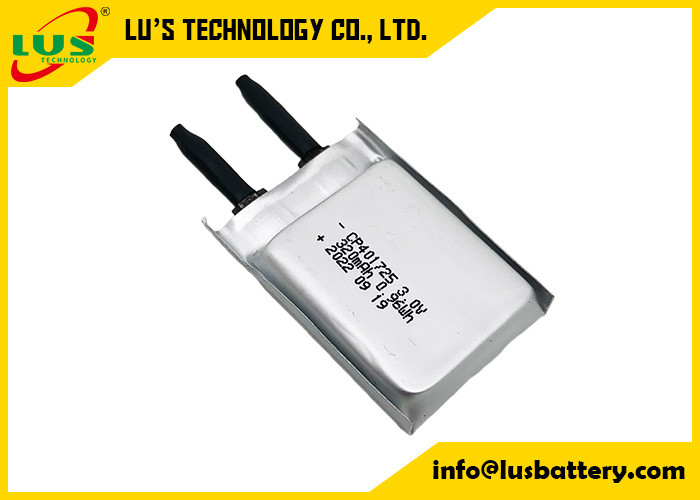

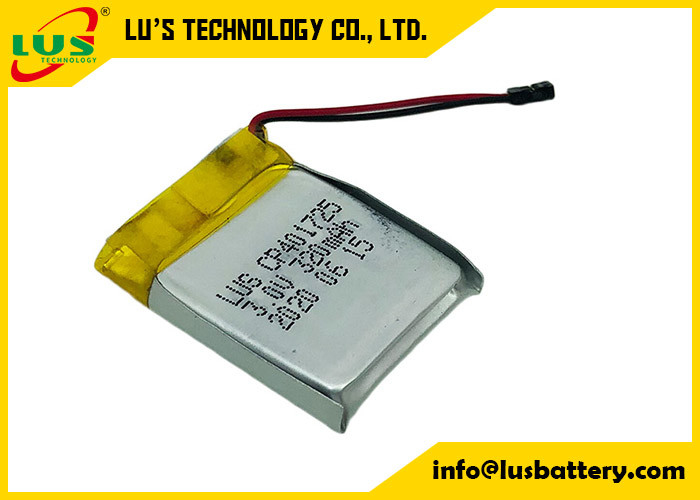

Part number : Cp401725
Size : 4*17.5*25.5 mm
Standard voltage: 3.0 volt
Cut-off votage: 2.0 v
Capacity : 320mah
Max continunous discharge current: 100mA
Plus discharge current: 150mA
Self discharge rate : only 2% per year
High Voltage for a Single Cell : The voltage of the single cell is up to 3.0V, which is equivalent to two alkaline batteries.
Small Size and Light Weight
Ultra thin Variable Design
Battery of variable dimensions can be selected to fit in the customer's design
Customize batteries and packs are available
Data sheets:
| Name | ultra thin battery |
| Model | Cp401725 |
| Voltage | 3.0V |
| Capacity | 320 mah |
| Length | MAX 28 mm |
| Width | MAX 18mm |
| Thickness | MAX 4.0mm |
| Temperature | -40 to +70 |
| Shelf life | 10 years |
| Terminal | Can be customized |
| OEM and ODM | Welcome |
CP401725 pouch cell lithium battery drawing:
Ultra thin cell CP series Limno2 batteries Advantage:
Work Shop:
LUS Lithium maganese battery :
| Model | Maximum Appearance dimensions (mm) | Weight (g) |
Rated voltage (v) |
Rated Capacity (mAh) |
Standard Discharge Current (mA) |
Max.Current (mA) | |
| Continuous | Pulse | ||||||
| CP042922 | 0.45×29×22 | 0.4 | 3.0 | 15 | 0.5 | 10 | 20 |
| CP042345 | 0.45×23×45 | 0.8 | 3.0 | 30 | 0.5 | 20 | 35 |
| CP104848 | 1.2×49×49 | 3.8 | 3.0 | 350 | 1.0 | 50 | 100 |
| CP142828 | 1.5×29×29 | 1.5 | 3.0 | 100 | 1.0 | 15 | 30 |
| CP153030 | 1.6×31×31 | 1.8 | 3.0 | 120 | 1.0 | 50 | 100 |
| CP155050 | 1.6×51×51 | 6.0 | 3.0 | 650 | 5.0 | 500 | 1000 |
| CP2012120 | 2.0×12×125 | 5.5 | 3.0 | 450 | 1.0 | 100 | 200 |
| CP202850 | 2.2×28.5×50 | 3.6 | 3.0 | 380 | 1.0 | 100 | 200 |
| CP224035 | 2.4×41×36 | 4.8 | 3.0 | 580 | 1.0 | 150 | 300 |
| CP223045 | 2.4×31×46 | 4.2 | 3.0 | 480 | 1.0 | 150 | 300 |
| CP224147 | 2.3×45×49 | 7.0 | 3.0 | 800 | 1.0 | 500 | 1200 |
| CP265045 | 2.8×51×46 | 9.0 | 3.0 | 1200 | 1.0 | 300 | 500 |
| CP264558 | 2.8×46×59 | 9.5 | 3.0 | 1250 | 5.0 | 300 | 500 |
| CP305050 | 3.2×51×51 | 12.5 | 3.0 | 1600 | 5.0 | 600 | 1000 |
| CP401720 | 4.2×18×21 | 2.0 | 3.0 | 220 | 1.0 | 50 | 120 |
| CP401922 | 4.2×20×23 | 2.6 | 3.0 | 300 | 1.0 | 100 | 150 |
| CP405050 | 4.2×51×51 | 17.0 | 3.0 | 2400 | 5.0 | 1000 | 1500 |
| CP451728 | 4.5×18×29 | 3.2 | 3.0 | 380 | 1.0 | 120 | 200 |
| CP502525 | 5.2×26×26 | 4.5 | 3.0 | 600 | 5.0 | 200 | 300 |
| CP502440 | 5.2×25×42 | 8.5 | 3.0 | 1200 | 1.0 | 400 | 800 |
| CP503742 | 5.2×38×43 | 13.0 | 3.0 | 1900 | 5.0 | 800 | 1200 |
| CP504644 | 5.2×47×45 | 17.0 | 3.0 | 2500 | 5.0 | 1200 | 2000 |
| CP505050 | 5.2×51×51 | 22.0 | 3.0 | 3000 | 10.0 | 1500 | 2000 |
| CP602026 | 6.2×21×27 | 4.5 | 3.0 | 550 | 1.0 | 200 | 300 |
| CP701725 | 7.2×18×26 | 4.5 | 3.0 | 520 | 1.0 | 150 | 300 |
| CP783970 | 7.8×39×70 | 36.5 | 3.0 | 5500 | 10.0 | 3000 | 5000 |
| CP7839109 | 7.8×39×109 | 63.0 | 3.0 | 10000 | 10.0 | 3000 | 5000 |
| CP802060 | 8.0×20×60 | 15.5 | 3.0 | 2100 | 10.0 | 2000 | 3000 |
| CP952434 | 9.7×25×35 | 11.5 | 3.0 | 1700 | 5.0 | 500 | 800 |
| CP1003742 | 10.2×38×43 | 26.0 | 3.0 | 3900 | 5.0 | 1200 | 2000 |
