Product Details:
|
| Max. Charge Voltage: | 4.2V | Charge Temperature: | -20℃ ~ + 60℃ |
|---|---|---|---|
| Cut-off Voltage: | 2.75V | Standard Voltage: | 3.7V |
| Working Rate: | 0.2C To 1C | Capacity: | From 8mah To 110mah |
| High Light: | Rechargeable Ultra Thin Lipo Battery,Ultra Thin Lipo Battery 110mah,Lightweight Lithium Polymer Cell |
||
ultra thin lipo battery LP301215 LP091525 LP012323 LP601216 LP042040 LP370820 3.7v polymer lithium cell
There are rechargeable ultra thin cell, voltage 3.7v , lithium polymer battery series
Hot sale part number and capacity as follow
LP091525- 15 mah LP012323-30 mah LP601216-60 mah
LP042040-8 mah LP370820-30 mah LP351020-55 mah
LP351215-40 mah LP401215-40 mah LP401040-100 mah LP302025-110 mah
Widely used in Smart card and IOT solution, suitable for PCB mounting
Li-Polymer battery Product Advantages:
1) Environmental friendly
2) High density of energy
3) Light weight
4) Low self-discharge
5) Low internal resistance
6) Long cycle life, chargeable up to 500 or 1000 times
7) No memory effect
8) Doesn’t contain Mercury, No fire, No explosion, No leakage
9) Very good and quick charge, capability can be charged to 90% within 10 min.
10) Thickness can be adjusted while width and height keep the same
Small size rechargaeble li po battery list:
| Model | Capacity(mah) | Dimension(mm) | ||
| T±0.1 | W±0.5 | L±0.5 | ||
| 1254 | 60 | 5.4 | 12 | |
| 1040 | 35 | 4.2 | 10 | |
| 1038 | 30 | 3.8 | 10 | |
| 301030 | 70 | 3.0 | 10.0 | 30.5 |
| 301525 | 80 | 3.0 | 15.0 | 25.5 |
| 302020 | 90 | 3.0 | 20.0 | 20.5 |
| 302025 | 110 | 3.0 | 20.0 | 25.5 |
| 302030 | 120 | 3.0 | 20.0 | 30.5 |
| 303048 | 400 | 3.0 | 30.0 | 48.5 |
| 350926 | 60 | 3.0 | 9.0 | 26.5 |
| 380926 | 70 | 3.8 | 9.0 | 26.5 |
| 400808 | 18 | 4.0 | 8.1 | 8.2 |
| 400820 | 40 | 4.0 | 8.3 | 20.5 |
| 400835 | 100 | 4.0 | 8.3 | 35.5 |
| 400838 | 110 | 4.0 | 8.3 | 38.5 |
| 400909 | 25 | 4.0 | 9.1 | 9.2 |
| 400912 | 30 | 4.0 | 9.0 | 12.5 |
| 400930 | 80 | 4.0 | 9.0 | 30.5 |
| 401010 | 25 | 4.0 | 10.0 | 10.5 |
| 401012 | 35 | 4.0 | 10.0 | 12.5 |
| 401015 | 40 | 4.0 | 10.0 | 15.5 |
| 401020 | 55 | 4.0 | 10.0 | 15.5 |
| 401025 | 70 | 4.0 | 10.0 | 25.5 |
| 401030 | 90 | 4.0 | 10.0 | 30.5 |
| 401035 | 110 | 4.0 | 10.0 | 35.5 |
| 401230 | 110 | 4.0 | 12.0 | 30.5 |
| 401235 | 130 | 4.0 | 12.0 | 35.5 |
| 401730 | 150 | 4.0 | 17.0 | 30.5 |
| 402020 | 110 | 4.0 | 20.0 | 20.5 |
| 402025 | 150 | 4.0 | 20.0 | 25.5 |
| 402030 | 200 | 4.0 | 20.0 | 30.5 |
| 402035 | 230 | 4.0 | 20.0 | 35.5 |
| 402050 | 400 | 4.0 | 20.0 | 50.5 |
| 403040 | 400 | 4.0 | 30.0 | 40.5 |
| 403450 | 680 | 4.0 | 24.0 | 50.5 |
| 450833 | 110 | 4.5 | 8.3 | 33.0 |
| 400835 | 110 | 4.0 | 8.3 | 35.0 |
| 450845 | 165 | 4.5 | 8.3 | 45.0 |
| 450909 | 30 | 4.5 | 9.1 | 9.2 |
| 450912 | 35 | 4.5 | 9.0 | 12.5 |
| 500830 | 100 | 5.0 | 8.3 | 30.5 |
| 500843 | 160 | 5.0 | 8.3 | 43.0 |
| 500930 | 110 | 5.0 | 9.1 | 30.5 |
| 500935 | 130 | 5.0 | 9.1 | 35.5 |
| 500945 | 190 | 5.0 | 9.1 | 45.0 |
| 501012 | 43 | 5.0 | 10.0 | 12.5 |
| 501015 | 50 | 5.0 | 10.0 | 15.5 |
| 501030 | 110 | 5.0 | 10.0 | 30.5 |
| 501035 | 150 | 5.0 | 10.0 | 35.5 |
| 501220 | 85 | 5.0 | 12.0 | 20.5 |
| 501225 | 110 | 5.0 | 12.0 | 25.5 |
| 501230 | 120 | 5.0 | 12.0 | 30.5 |
| 501235 | 150 | 5.0 | 12.0 | 35.5 |
| 501240 | 200 | 5.0 | 12.0 | 40.5 |
| 501245 | 250 | 5.0 | 12.0 | 45.5 |
| 501525 | 150 | 5.0 | 15.0 | 25.5 |
| 501535 | 230 | 5.0 | 15.0 | 35.5 |
| 502020 | 150 | 5.0 | 20.0 | 20.5 |
| 502025 | 200 | 5.0 | 20.0 | 25.5 |
| 502030 | 250 | 5.0 | 20.0 | 30.5 |
| 502035 | 320 | 5.0 | 20.0 | 35.5 |
| 502248 | 500 | 5.0 | 22.0 | 48.5 |
| 502530 | 320 | 5.0 | 25.0 | 30.5 |
| 502535 | 400 | 5.0 | 25.0 | 35.5 |
| 502540 | 550 | 5.0 | 25.0 | 40.5 |
| 503030 | 450 | 5.0 | 30.0 | 30.5 |
| 503035 | 500 | 5.0 | 30.0 | 35.5 |
| 503040 | 600 | 5.0 | 30.0 | 40.5 |
| 503048 | 750 | 5.0 | 30.0 | 48.5 |
| 503759 | 1200 | 5.0 | 37.0 | 59.5 |
| 523450 | 1000 | 5.2 | 34.0 | 50.5 |
| 551012 | 50 | 5.5 | 10.0 | 12.5 |
| 551015 | 55 | 5.5 | 10.0 | 15.5 |
| 551145 | 250 | 5.5 | 11.3 | 45.5 |
| 551240 | 230 | 5.5 | 12.0 | 40.5 |
| 552535 | 450 | 5.5 | 10.1 | 35.5 |
| 581013 | 52 | 5.8 | 10.2 | 13.5 |
| 582728 | 400 | 5.8 | 27.2 | 28.5 |
| 601012 | 55 | 6.0 | 10.2 | 12.5 |
| 601015 | 60 | 6.0 | 10.2 | 15.5 |
| 601040 | 200 | 6.0 | 10.2 | 40.5 |
| 601043 | 250 | 6.0 | 10.2 | 43.0 |
| 601220 | 110 | 6.0 | 12.0 | 20.5 |
| 601230 | 180 | 6.0 | 12.0 | 30.5 |
| 601235 | 200 | 6.0 | 12.0 | 35.5 |
| 601435 | 280 | 6.0 | 14.0 | 35.5 |
| 601730 | 250 | 6.0 | 17.0 | 30.5 |
| 602020 | 180 | 6.0 | 20.0 | 20.5 |
| 602025 | 250 | 6.0 | 20.0 | 25.5 |
| 602030 | 300 | 6.0 | 20.0 | 30.5 |
| 602035 | 400 | 6.0 | 20.0 | 35.5 |
| 602040 | 450 | 6.0 | 20.0 | 40.5 |
| 602045 | 500 | 6.0 | 20.0 | 45.5 |
| 602530 | 400 | 6.0 | 25.0 | 30.5 |
| 602535 | 500 | 6.0 | 25.0 | 35.5 |
| 602540 | 600 | 6.0 | 25.0 | 40.5 |
| 602626 | 400 | 6.0 | 26.0 | 26.5 |
| 603030 | 500 | 6.0 | 30.0 | 30.5 |
| 603035 | 600 | 6.0 | 30.0 | 35.5 |
| 603040 | 750 | 6.0 | 30.0 | 40.5 |
| 603048 | 850 | 6.0 | 30.0 | 48.5 |
| 603450 | 1200 | 6.0 | 34.0 | 50.5 |
| 651730 | 300 | 6.8 | 17.0 | 30.5 |
| 681345 | 400 | 6.8 | 13.0 | 45.5 |
| 701230 | 220 | 7.0 | 12.2 | 30.5 |
| 701250 | 400 | 7.0 | 12.2 | 50.5 |
| 701435 | 320 | 7.0 | 14.0 | 35.5 |
| 702020 | 210 | 7.0 | 20.0 | 20.5 |
| 702025 | 300 | 7.0 | 20.0 | 25.5 |
| 702030 | 380 | 7.0 | 20.0 | 30.5 |
| 702035 | 450 | 7.0 | 20.0 | 35.5 |
| 702040 | 500 | 7.0 | 20.0 | 40.5 |
| 702530 | 500 | 7.0 | 25.0 | 30.5 |
| 702535 | 600 | 7.0 | 25.0 | 35.5 |
| 703040 | 800 | 7.0 | 30.0 | 40.5 |
| 703048 | 1100 | 7.0 | 30.0 | 48.5 |
| 751425 | 240 | 7.5 | 14.0 | 25.5 |
| 751535 | 380 | 7.5 | 15.0 | 35.5 |
| 801230 | 250 | 8.0 | 12.5 | 30.5 |
| 801350 | 500 | 8.0 | 13.0 | 50.5 |
| 802025 | 350 | 8.0 | 20.0 | 25.5 |
| 802030 | 420 | 8.0 | 20.0 | 30.5 |
| 802035 | 500 | 8.0 | 20.0 | 35.5 |
| 802040 | 650 | 8.0 | 20.0 | 40.5 |
| 802050 | 800 | 8.0 | 20.0 | 50.5 |
| 802530 | 600 | 8.0 | 25.0 | 30.5 |
| 802535 | 700 | 8.0 | 25.0 | 35.5 |
| 802540 | 800 | 8.0 | 25.0 | 40.5 |
| 803030 | 750 | 8.0 | 30.0 | 30.5 |
| 803035 | 800 | 8.0 | 30.0 | 35.5 |
| 803040 | 900 | 8.0 | 30.0 | 40.5 |
| 803048 | 1200 | 8.0 | 30.0 | 48.5 |
| 803450 | 1500 | 8.0 | 34.0 | 50.5 |
| 902025 | 400 | 9.0 | 20.0 | 25.5 |
| 902030 | 500 | 9.0 | 20.0 | 30.5 |
| 902035 | 600 | 9.0 | 20.0 | 35.5 |
| 902040 | 700 | 9.0 | 20.0 | 40.5 |
| 902535 | 800 | 9.0 | 25.0 | 35.5 |
| 101550 | 800 | 10.0 | 15.0 | 50.5 |
| 102050 | 1000 | 10.0 | 20.0 | 50.5 |
| 102530 | 800 | 10.0 | 25.0 | 30.5 |
| 102540 | 1100 | 10.0 | 25.0 | 40.5 |
| 103040 | 1200 | 10.0 | 30.0 | 40.5 |
| 103048 | 1650 | 10.0 | 30.0 | 48.5 |
| 103450 | 2000 | 10.0 | 34.0 | 50.5 |
Major Application:
1)MP3/MP4 player, bluetooth, speakers, car GPS and all possible electronics products
2)Widely applied in Telecommunications, Audio and Video Devices, Information Devices...Etc.

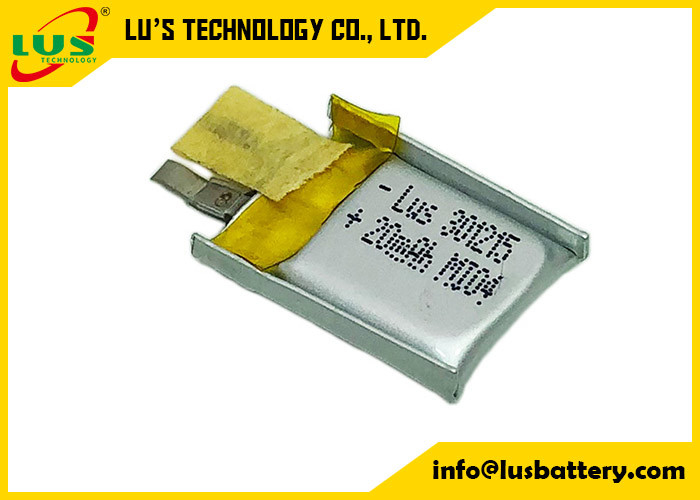

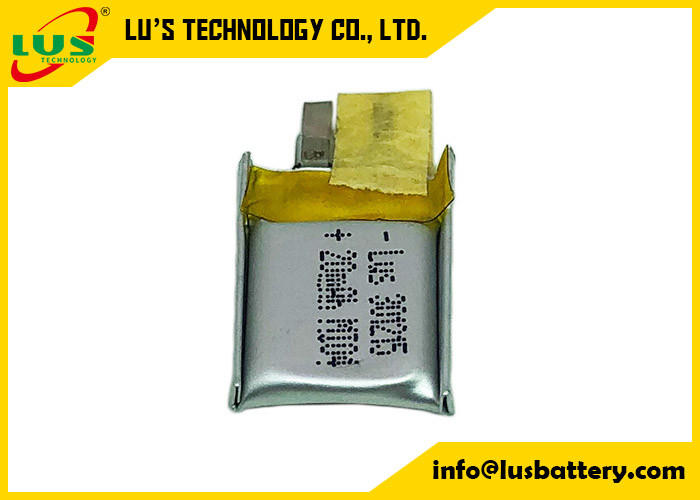

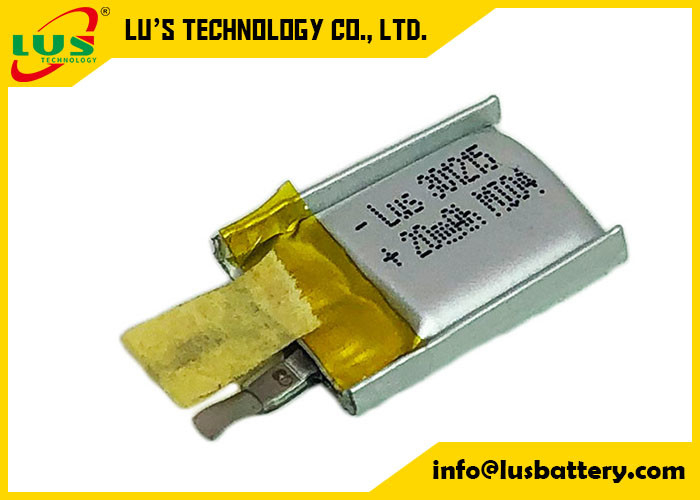

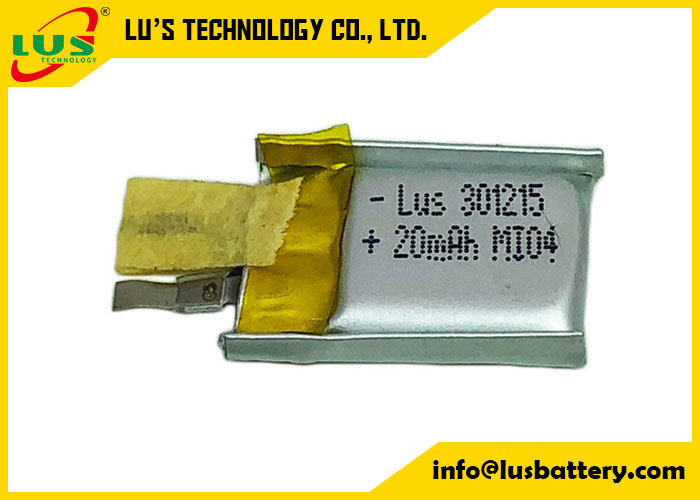

PL301215 lithium pouch cell battery data:
| Type | Rechargeable |
| Part number | LP301215 PL301215 |
| Voltage | 3.7V |
| Capacity | 20mah |
| Terminals | Pins, tabs, wires or connector depends on customer application |
| Working temperature | -20 to +60 |
| OEM | Welcome |
| Small order | Acceptable |
| MOQ | No request if ready to ship |
| Payment | T/T |
